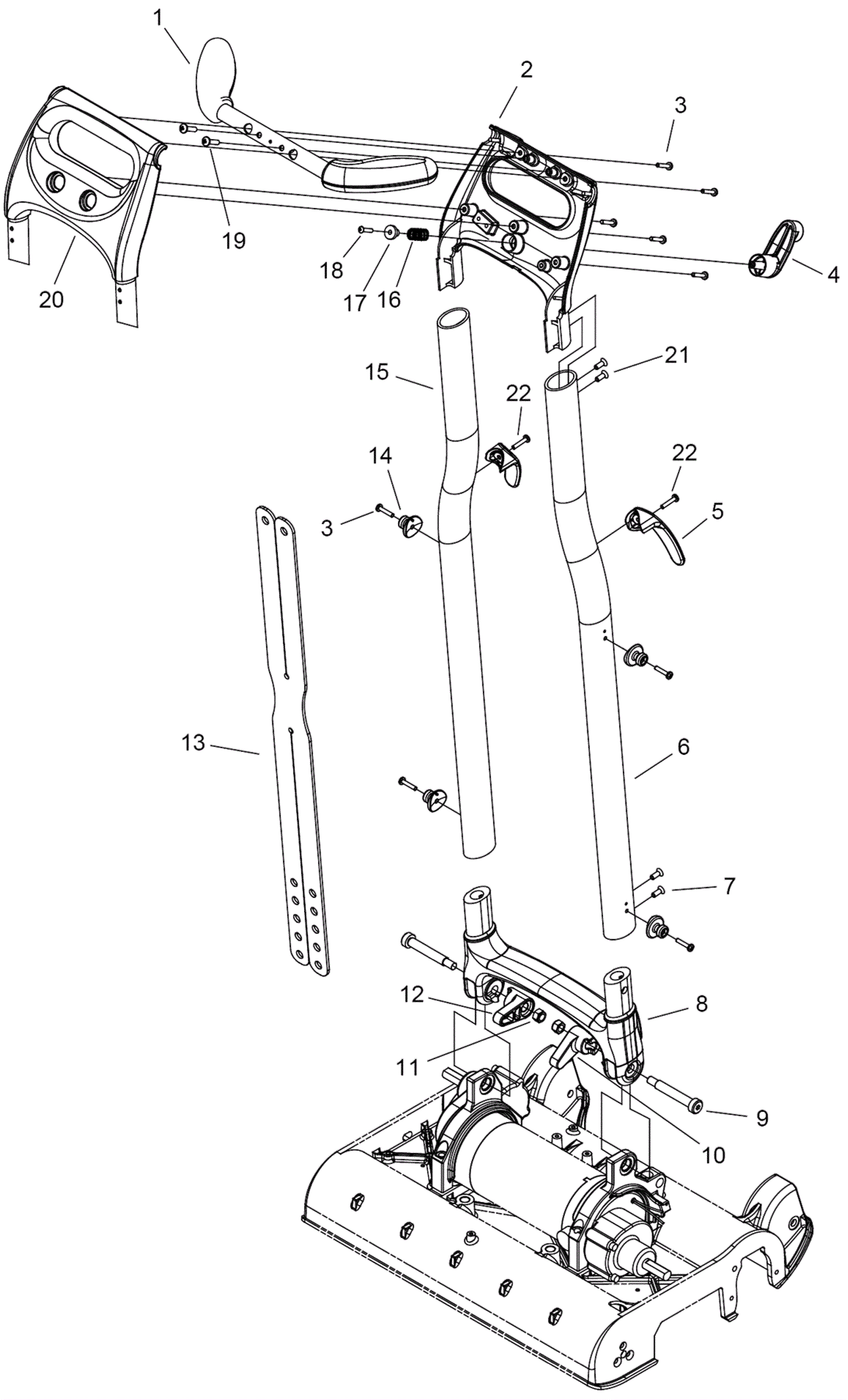

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-5497
|
Handle grip |
1 |
|
|
2a |
273-8792
|
Karcher bottom console |
1 |
(deluxe) |
|
2b |
273-8793
|
ICAPSOL bottom console |
1 |
(basic) |
|
3 |
273-5446
|
Screw M4 x 20mm pan head phillips |
9 |
|
|
4 |
273-8790
|
Small upper cord hook (yellow) |
1 |
|
|
5 |
273-5472
|
Lower cord hook |
2 |
|
|
6a |
273-5474
|
Left side extrusion handle |
1 |
(basic) |
|
6b |
273-5473
|
Left side extrusion handle |
1 |
(deluxe) |
|
7 |
273-5491
|
Screw M5 x 12mm with locking |
4 |
|
|
8 |
273-8791
|
Karcher pivot casting |
1 |
|
|
9 |
273-5478
|
Screw M10 x M8 x 55mm shoulder |
2 |
|
|
10 |
273-5479
|
Left hand lifting cam |
1 |
|
|
11 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
12 |
273-5481
|
Right hand lifting cam |
1 |
|
|
13 |
273-5482
|
Hold down sprayer strap |
1 |
|
|
14 |
273-5483
|
Rubber strap hook |
4 |
|
|
15a |
273-5485
|
Right side extrusion handle |
1 |
(basic) |
|
15b |
273-5484
|
Right side extrusion handle |
1 |
(deluxe) |
|
16 |
273-5486
|
Compression spring |
1 |
|
|
17 |
273-5487
|
Spring retainer |
1 |
|
|
18 |
273-5488
|
Screw 40 x 35 oval head |
5 |
|
|
19 |
273-5489
|
Screw M5 x 20mm pan head phillips stainless steel |
2 |
|
|
20 |
273-8788
|
ICAPSOL top console (black) |
1 |
|
|
21 |
273-5493
|
Screw M5 x 30mm countersunk oval head |
4 |
|
|
22 |
173-8687
|
Screw M4 x 14mm pan head phillips |
2 |
|
|
