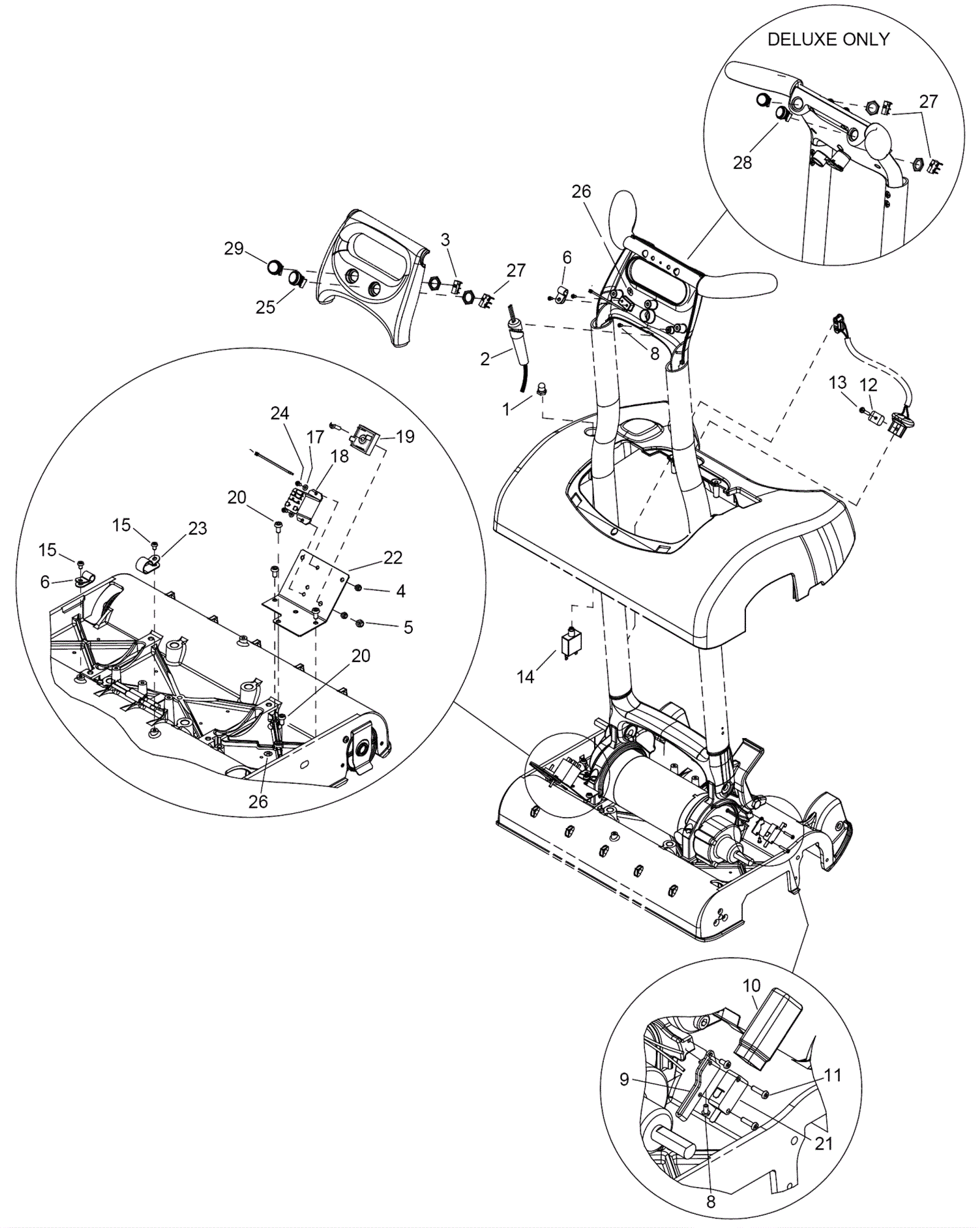

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-0312
|
3/8 inch circuit breaker boot |
1 |
|
|
2a |
273-8781
|
SJT cord set 18/3 x 40 feet (yellow) |
1 |
(oem) |
|
2b |
991-5008
|
18/3 replacement power cord 50 foot (beige) |
1 |
(non oem) |
|
2c |
991-5100
|
18/3 power cord 40 foot (blue) |
1 |
(non oem) |
|
3 |
273-5462
|
Switch with coupler |
1 |
|
|
4 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
5 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
|
6 |
173-1800
|
5/16 nylon clamp (OBSOLETE) |
2 |
|
|
8 |
273-5441
|
Screw M3 x 6mm button socket head (OBSOELTE) |
2 |
|
|
9 |
273-5442
|
Switch bracket |
1 |
|
|
10 |
273-5443
|
Switch bracket cover |
1 |
|
|
11 |
273-5444
|
Screw M3 x 12 button socket head |
2 |
|
|
12 |
273-5445
|
Wire clip |
1 |
|
|
13 |
273-5446
|
Screw M4 x 20mm pan head phillips |
1 |
|
|
14 |
273-5447
|
8amp circuit breaker |
1 |
|
|
15 |
273-5448
|
Screw M4 x 6mm button socket head |
5 |
|
|
17 |
273-5450
|
Washer M3 |
2 |
|
|
18 |
273-5451
|
120V 15amp mini relay |
1 |
|
|
19 |
273-1134
|
50amp bridge rectifier |
1 |
|
|
20 |
273-5452
|
Screw M5 x 10mm button socket head |
4 |
|
|
21 |
273-5453
|
120V roller switch |
1 |
|
|
22 |
273-8783
|
Electrical box base plate |
1 |
|
|
23 |
273-5455
|
P clamp |
1 |
|
|
24 |
273-8784
|
Screw M3 1/2 x 8 inch stainless steel |
2 |
|
|
25 |
273-5461
|
Button assembly with bezel (green) |
1 |
|
|
26 |
273-5457
|
Ground symbol decal |
2 |
|
|
27 |
273-5458
|
Switch with coupler |
1 |
(deluxe model uses quantity of 3) |
|
28 |
273-5459
|
Button assembly with bezel (blue) |
2 |
(deluxe models only) |
|
29 |
273-5460
|
Button assembly with bezel (red) |
1 |
|
|
