BRS 43/500C

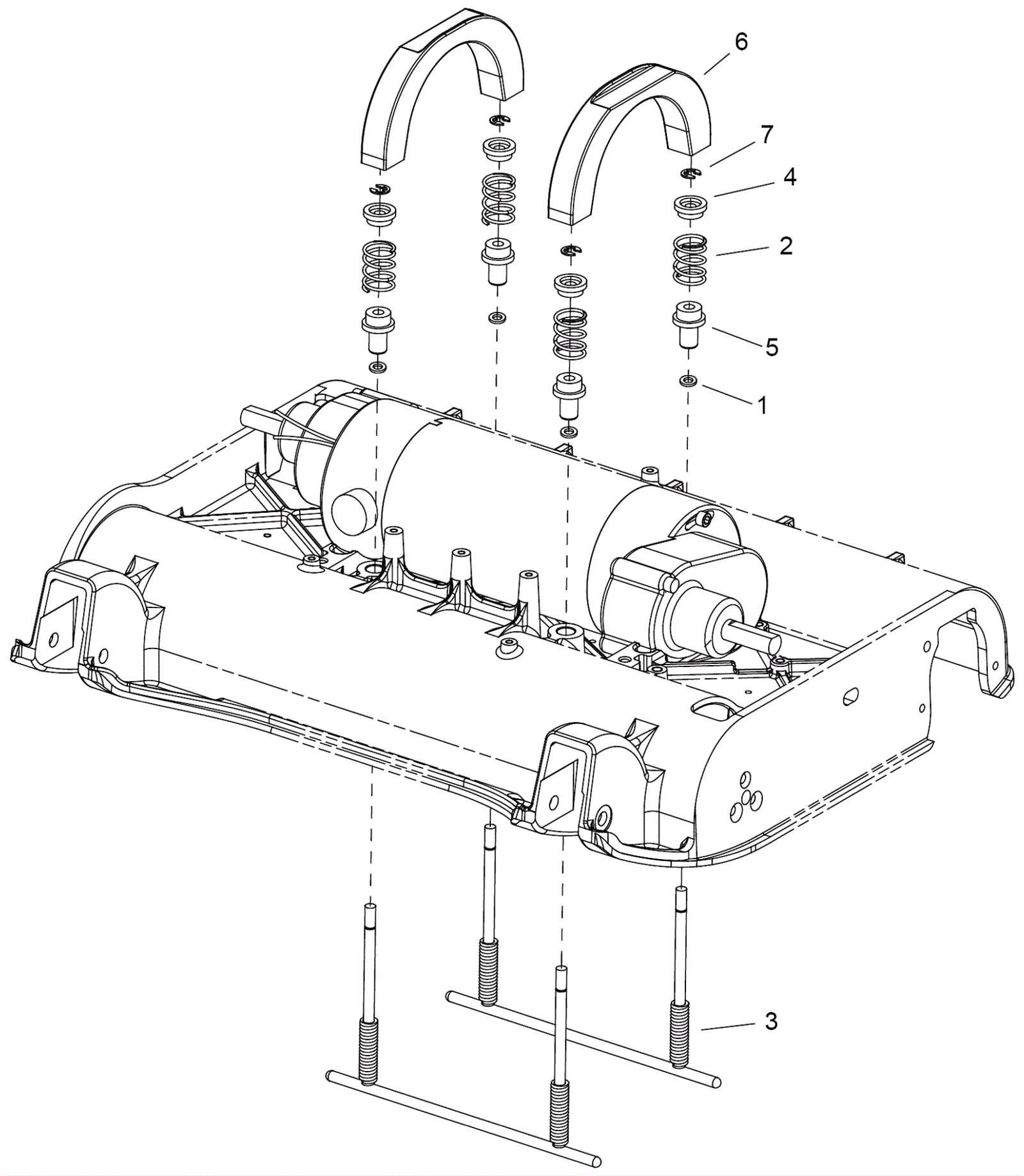

Lifting Assembly-Model 1.006-713.0
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
273-7176
Washer
$1.54
4
usually ships 7-19 days
2
273-7175
Compression spring
$9.00
4
usually ships 7-19 days
3
273-5433
Lifting rod
$51.60
2
usually ships 7-19 days
4
273-5430
Flanged bearing
$11.70
4
usually ships 7-19 days
5
273-5432
Flanged bearing
$11.60
4
usually ships 7-19 days
6
273-5428
Crossover push bracket
$59.00
2
usually ships 7-19 days
7
273-5429
Retaining ring
$3.60
4
usually ships 7-19 days
