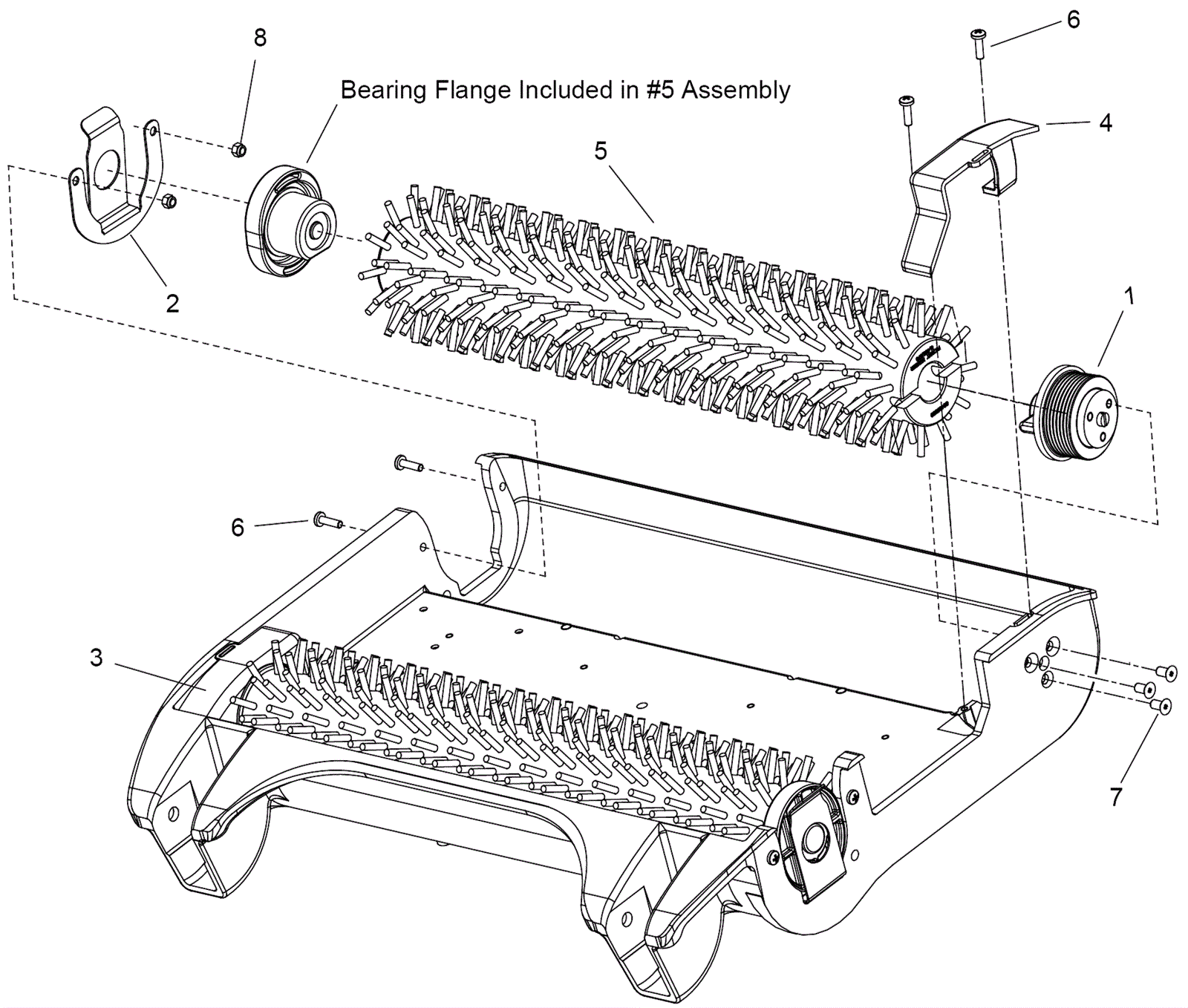

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-7174
|
Brush drive assembly |
2 |
|
|
2 |
173-8688
|
Brush spring clip |
2 |
(service part) (includes 1 clip, 2 screws, and 2 nuts) |
|
3 |
273-5424
|
Right hand belt cover |
1 |
|
|
4 |
273-5425
|
Left hand belt cover |
1 |
|
|
5a |
273-0095
|
Brush and hub assembly |
2 |
|
|
5b |
273-0905
|
Brush hub |
1 |
|
|
5c |
373-9229
|
12 row brush |
1 |
|
|
6 |
173-8687
|
Screw M4 x 14mm pan head phillips |
8 |
|
|
7 |
273-5426
|
Screw M5 x 10mm pan head stainless steel |
6 |
|
|
8 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
