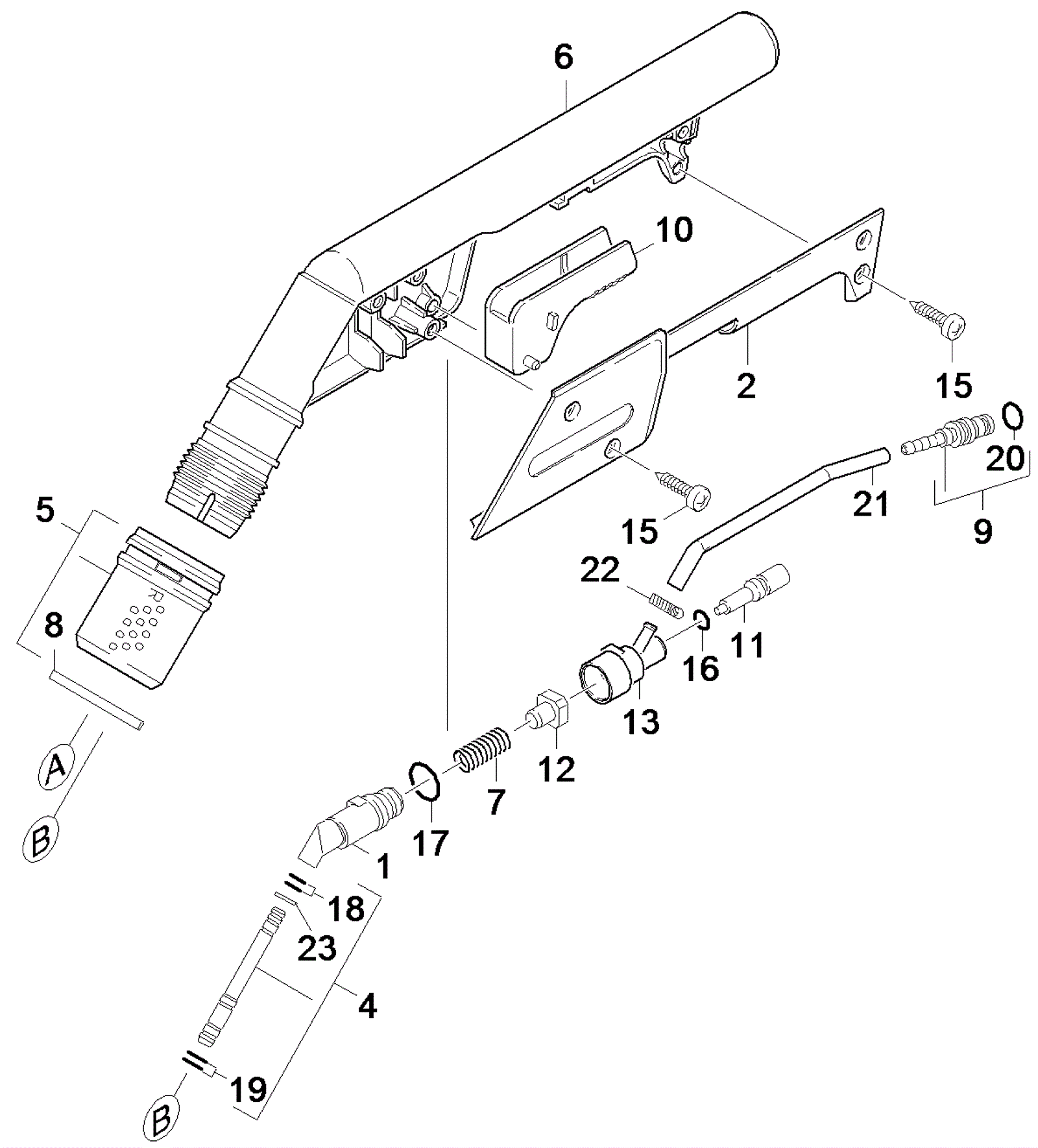

Puzzi 8/1 Handhold Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5903 Elbow joint $9.85 1 usually ships 1-5 days
2 173-5905 Bracket $4.95 1 usually ships 1-5 days
4a 173-5902 Extension $35.75 1 (includes 4b-4d, 18-19, 23) usually ships 1-5 days
4b 173-5896 O-ring seal $2.42 2 usually ships 1-5 days
4c 173-5881 O-ring 6 x 1 $2.12 2 usually ships 1-5 days
4d 173-5901 Washer lock $5.72 1 usually ships 1-5 days
5a 173-5900 Cap $36.85 1 (includes 5b, 8a-8b) usually ships 1-5 days
5b 173-5894 Cap holder $8.20 1 ships same day
6 373-2043 Handhold Call for price 1 usually ships 14-22 days
7 173-5869 Spring $9.85 1 usually ships 14-22 days
8a 173-5894 Cap holder $8.20 1 (includes 8b-8e) ships same day
8b 173-5872 O-ring 6 x 2 $7.04 3 usually ships 14-22 days
8c 373-9220 Nozzle mouthpiece $21.16 1 usually ships 14-22 days
8d 373-9217 Spray nozzle (brown) $40.69 1 usually ships 14-22 days
8e 373-9218 Nozzle mouthpiece (green) Call for price 1 usually ships 14-22 days
9a 173-5860 Hose stem $16.17 1 (includes 9b, 20) usually ships 14-22 days
9b 173-5859 O-ring seal $2.11 1 usually ships 14-22 days
10 173-5862 Lever $16.17 1 usually ships 14-22 days
11 173-5866 Spindle $10.95 1 usually ships 14-22 days
12 173-5868 Valve $7.92 1 usually ships 1-5 days
13 173-5864 Valve housing $10.18 1 usually ships 14-22 days
15 173-5867 Screw 4 x 12 $3.39 4 usually ships 14-22 days
16 173-5865 O-ring $3.33 1 usually ships 14-22 days
17 173-5870 O-ring $2.78 1 usually ships 14-22 days
18 173-5896 O-ring seal $2.42 2 usually ships 1-5 days
19 173-5881 O-ring 6 x 1 $2.12 2 usually ships 1-5 days
20 273-0368 O-ring $2.11 1 usually ships 14-22 days
21 173-5863 Hose $17.27 1 usually ships 14-22 days
22 173-5861 Hose band clip $3.87 2 (includes 5) usually ships 14-22 days
23 173-5901 Washer lock $5.72 1 usually ships 1-5 days
