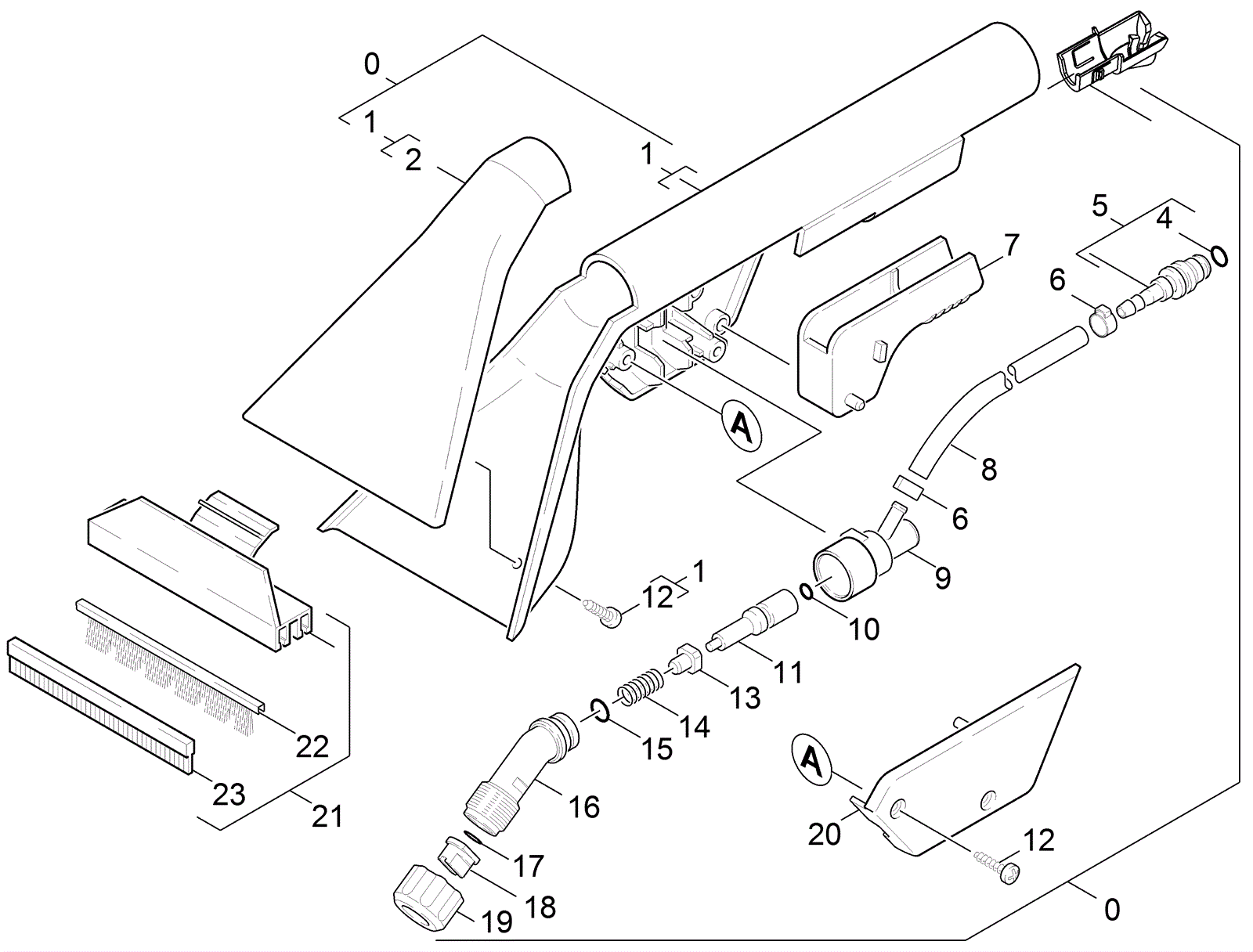

Puzzi 8/1 Hand Nozzle Assembly

#PartDescriptionPriceReqNotesAvailability
0 173-5855 Hand nozzle $208.33 1 (includes 1-20) usually ships 14-22 days
1 373-9224 Hand nozzle with cover $53.91 1 (includes 2, 12) usually ships 14-22 days
2 173-5857 Hand nozzle cover $8.94 1 usually ships 14-22 days
3 173-5858 Bushing $3.41 1 usually ships 14-22 days
4 273-0368 O-ring $2.11 1 usually ships 14-22 days
5a 173-5860 Hose stem $17.30 1 (includes 4, 5b) usually ships 14-22 days
5b 173-5859 O-ring seal $2.26 1 usually ships 14-22 days
6 173-5861 Hose band clip $4.51 2 usually ships 14-22 days
7 173-5862 Lever $17.30 1 usually ships 14-22 days
8 173-5863 Hose $18.48 1 usually ships 14-22 days
9 173-5864 Valve housing $10.89 1 usually ships 14-22 days
10 173-5865 O-ring $3.88 1 usually ships 14-22 days
11 173-5866 Spindle $11.72 1 usually ships 14-22 days
12 173-5867 Screw 4 x 12 $3.96 4 usually ships 14-22 days
13 173-5868 Valve $8.47 1 usually ships 1-5 days
14 173-5869 Spring $10.54 1 usually ships 14-22 days
15 173-5870 O-ring $3.25 1 usually ships 14-22 days
16 173-5871 Connecting joint $14.36 1 usually ships 14-22 days
17 173-5872 O-ring 6 x 2 $7.54 1 usually ships 14-22 days
18 273-0419 Nozzle mouthpiece $27.07 1 usually ships 14-22 days
19 173-5874 Nut $12.83 1 usually ships 14-22 days
20 373-9223 Cover plate Call for price 1 usually ships 14-22 days
21 173-5876 Nozzle insert (OBSOLETE) $100.10 1 (includes 22-23) usually ships 14-22 days
22 173-5877 Brush strip $40.02 1 usually ships 1-5 days
23 173-5878 Squeegee strip $22.22 1 usually ships 1-5 days
