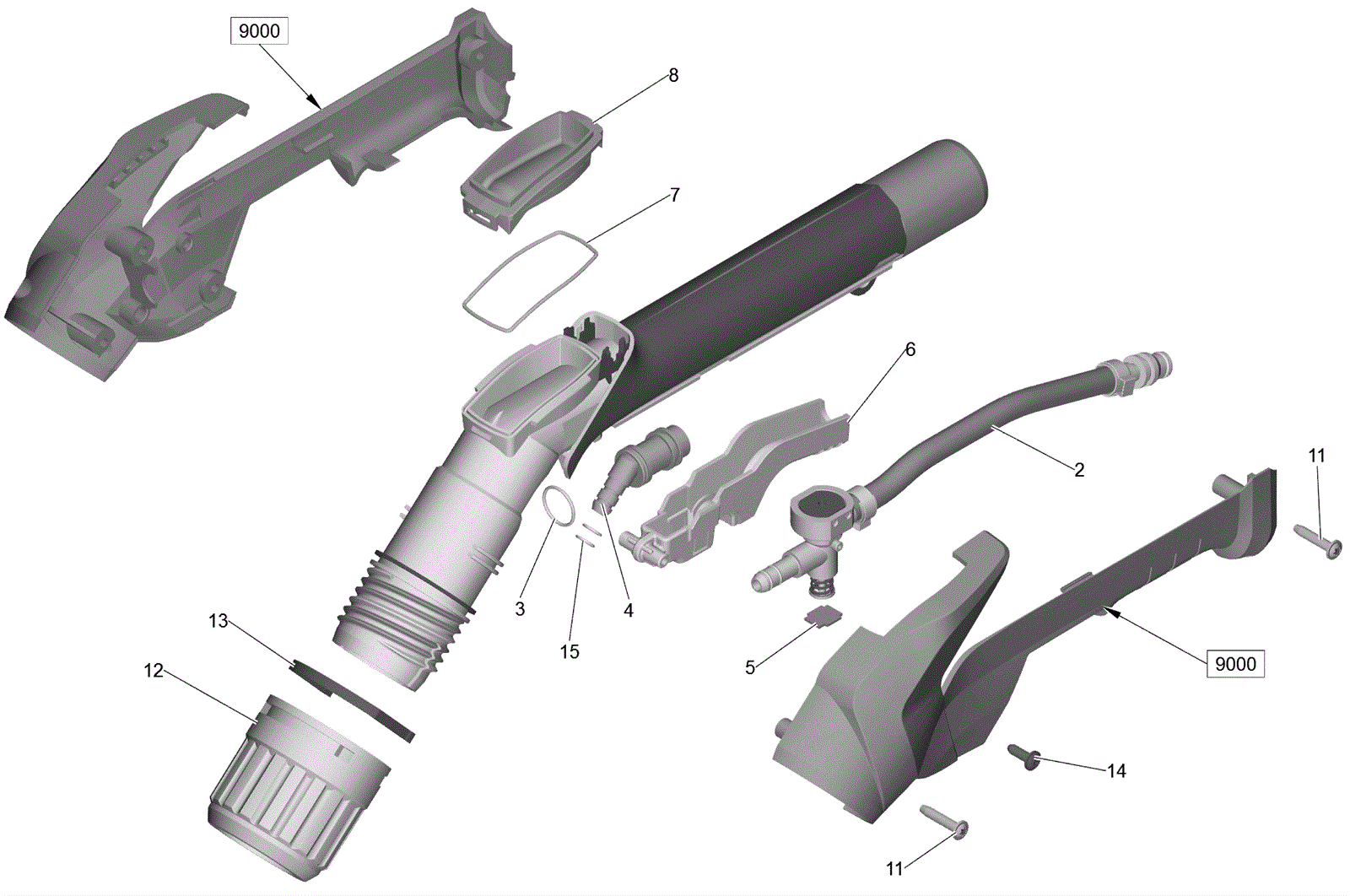

Puzzi 8/1 Spray Gun Assembly

#PartDescriptionPriceReqNotesAvailability
2a 373-9222 Valve complete $134.18 1 (includes 2b-2c) usually ships 11-15 days
2b 273-0407 O-ring seal $2.26 2 usually ships 11-15 days
2c 173-2996 Gasket $6.12 1 usually ships 1-5 days
3 173-5870 O-ring $3.25 1 usually ships 11-15 days
4 273-0422 Connecting sleeve $1.69 1 usually ships 11-15 days
5 273-0423 Plate $3.10 1 usually ships 11-15 days
6 273-0424 Pushbutton (OBSOLETE) Call for price 1 usually ships 11-15 days
7 373-9221 Vision panel seal Call for price 1 usually ships 11-15 days
8 273-0425 Inspection glass Call for price 1 usually ships 11-15 days
11 273-0416 Screw 4 x 20 inch $1.34 4 usually ships 11-15 days
12 273-0408 Union nut $10.07 1 usually ships 11-15 days
13 273-0409 Tension ring $4.66 1 usually ships 11-15 days
14 173-5867 Screw 4 x 12 $3.96 1 usually ships 11-15 days
15 173-5881 O-ring 6 x 1 $2.46 2 usually ships 11-15 days
9000 273-0426 Handhold (OBSOLETE) Call for price 1 usually ships 11-15 days
