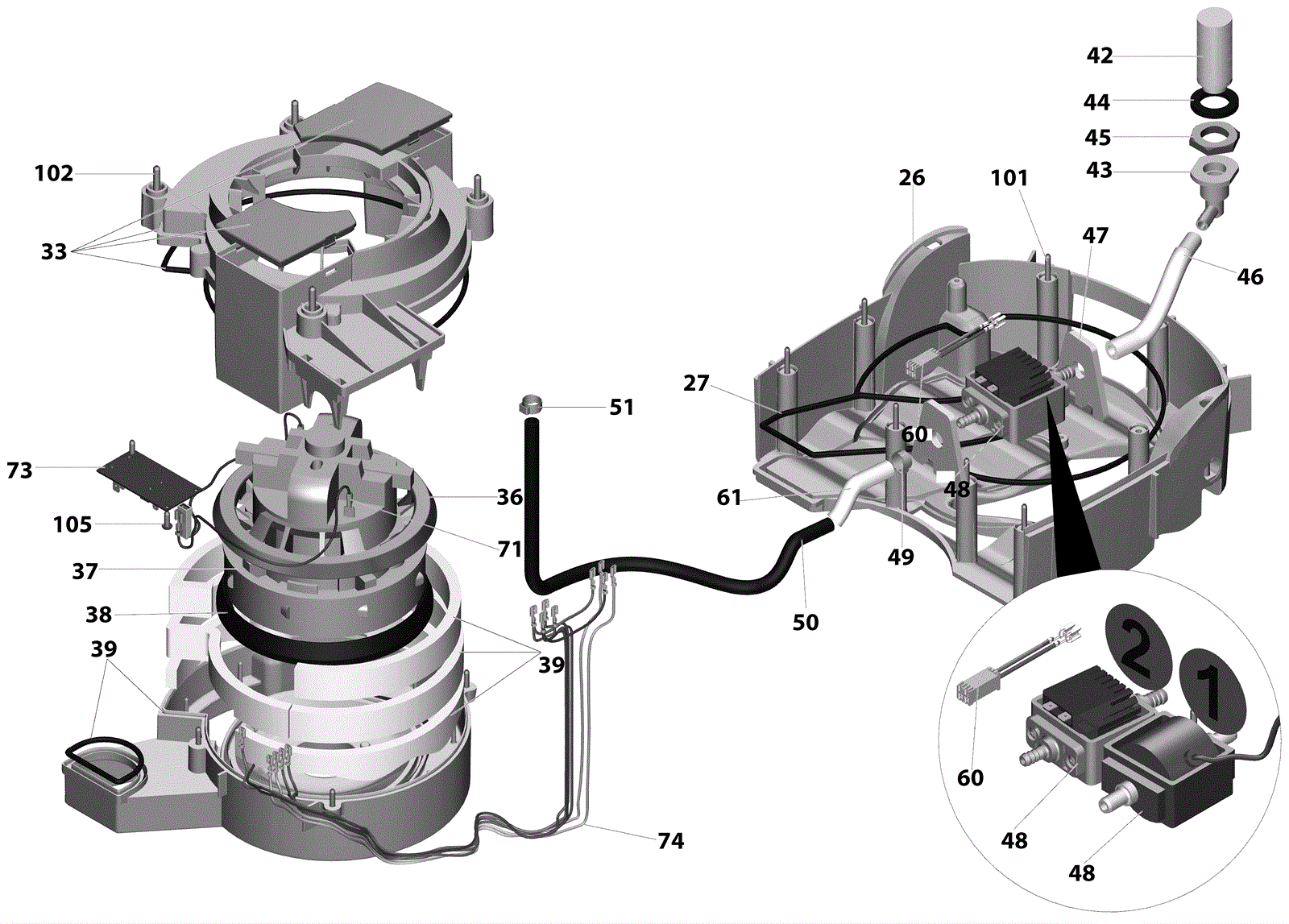

| # | Part | Description | Price | Req | Notes | Availability |
|---|
26 |
373-9200
|
Frame |
$24.13
|
1 |
|
usually ships 14-22 days |
27 |
373-9201
|
Frame seal |
$31.20
|
1 |
|
usually ships 14-22 days |
33 |
373-9202
|
Blower covering cap |
$61.17
|
1 |
|
usually ships 14-22 days |
36 |
373-9203
|
Upper vacuum motor seal |
$27.45
|
1 |
|
usually ships 14-22 days |
37a |
373-9204
|
230V vacuum motor |
$132.26
|
1 |
|
usually ships 14-22 days |
37b |
373-9213
|
Carbon brush set |
$72.19
|
1 |
|
usually ships 14-22 days |
38 |
373-9205
|
Motor seal |
$14.23
|
1 |
|
usually ships 14-22 days |
39a |
373-9206
|
Air circulation complete |
$143.29
|
1 |
|
usually ships 14-22 days |
39b |
373-9214
|
Rubber seal string |
$12.45
|
1 |
|
usually ships 14-22 days |
39c |
373-9215
|
Rubber seal string |
$8.21
|
1 |
|
usually ships 14-22 days |
39d |
373-9216
|
Insulating mat set |
$10.09
|
1 |
|
usually ships 14-22 days |
42 |
173-5372
|
Filter |
$12.87
|
1 |
|
usually ships 14-22 days |
43 |
173-5807
|
Hose stem |
$16.39
|
1 |
|
usually ships 1-5 days |
44 |
173-5808
|
Joint ring |
$13.42
|
1 |
|
usually ships 14-22 days |
45 |
173-5810
|
Nut 1/2 hex |
$5.08
|
1 |
|
usually ships 14-22 days |
46 |
173-5847
|
1 inch hose |
$13.55
|
1 |
|
usually ships 14-22 days |
47a |
373-9195
|
Bearing |
Call for price
|
2 |
(version 2) (please take model of pump) |
usually ships 14-22 days |
47b |
373-9196
|
Pump seal |
Call for price
|
2 |
(version 1) (please take model of pump) |
usually ships 14-22 days |
48a |
373-9207
|
230V pump |
$187.37
|
1 |
(version 2) (please take model of pump) |
usually ships 14-22 days |
48b |
373-9208
|
230V vibrating piston pump |
$286.98
|
1 |
(version 1) (please take model of pump) |
usually ships 14-22 days |
48c |
273-0399
|
Hose stem |
Call for price
|
1 |
|
usually ships 14-22 days |
48d |
373-9199
|
Hose stem |
Call for price
|
1 |
|
usually ships 14-22 days |
48e |
173-5844
|
Screw M4-.7 x 6mm |
$1.32
|
4 |
|
usually ships 1-5 days |
49 |
173-5843
|
Hose clip with insert |
$9.24
|
1 |
|
usually ships 14-22 days |
50 |
373-9209
|
Hose |
$47.62
|
1 |
|
usually ships 14-22 days |
51 |
173-6001
|
Hose clamp |
$8.58
|
1 |
|
usually ships 1-5 days |
60 |
373-9197
|
Pump electronics cable |
Call for price
|
1 |
(version 2) (please take model of pump) |
usually ships 14-22 days |
61 |
373-9210
|
Insulating hose |
$4.49
|
1 |
|
usually ships 14-22 days |
71 |
373-9211
|
Cable turbine |
$1.58
|
2 |
|
usually ships 14-22 days |
73 |
373-9212
|
Electronics |
$30.54
|
1 |
|
usually ships 14-22 days |
74 |
373-9198
|
Electrical small parts |
Call for price
|
1 |
|
usually ships 14-22 days |
101 |
273-0962
|
Screw M4-10.9 x 25mm phillips head |
$4.62
|
15 |
|
usually ships 14-22 days |
102 |
173-5749
|
Screw M4-10.9 x 35mm round head |
$3.08
|
4 |
|
ships same day |
105 |
173-2935
|
Screw M4-.7 x 12mm |
$4.54
|
2 |
|
usually ships 1-5 days |
