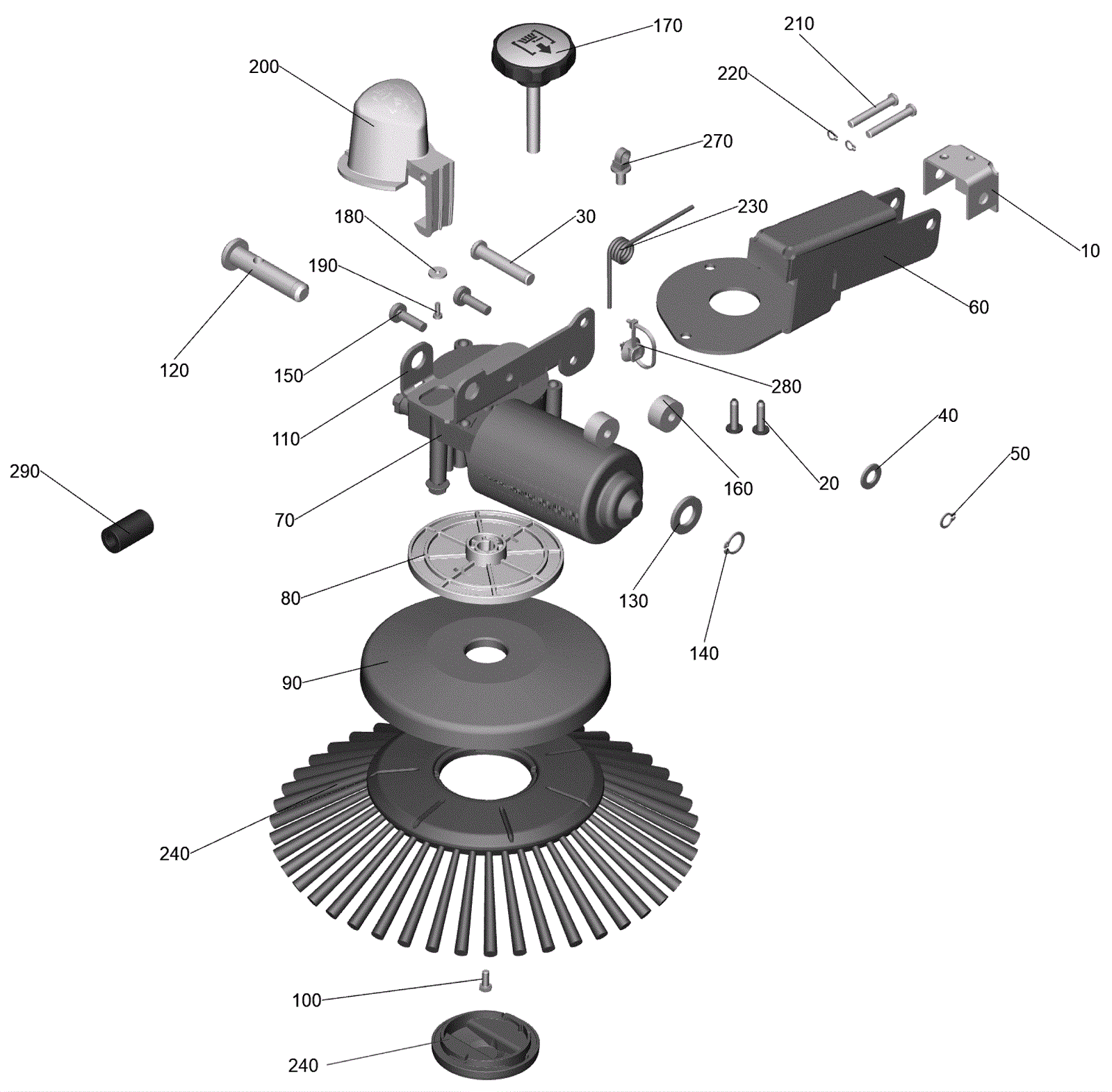

CVS 65/1 BP Side Broom Assembly-Model 1.517-301.0

#PartDescriptionPriceReqNotesAvailability
10 373-9141 Side broom bearing Call for price 1 usually ships 7-19 days
20 173-6202 Screw M5 x 20mm $1.03 2 ships same day
30 373-9142 Bolt 8 x 42 Call for price 1 usually ships 7-19 days
40 999-0150 Washer #8 medium split lock $0.99 1 ships same day
50 183-4102 Spring clip $1.35 1 usually ships 1-5 days
60 373-9143 Side broom suspension Call for price 1 usually ships 7-19 days
70 373-9144 Right hand side broom gear motor Call for price 1 usually ships 7-19 days
80 373-9152 Side broom driving plate $18.37 1 usually ships 7-19 days
90 373-9153 Rejecting plate $12.01 1 usually ships 7-19 days
100 999-9104 Screw M4-.7 x 10mm hex head stainless steel $0.99 1 usually ships 1-5 days
110 373-9145 Side broom height adjustment Call for price 1 usually ships 7-19 days
120 373-9146 Bolt 12 x 56 Call for price 1 usually ships 7-19 days
130 373-3155 Washer Call for price 1 usually ships 7-19 days
140 373-1700 Locking ring $0.99 1 ships same day
150 173-9890 Screw M6 x 20 $1.94 2 usually ships 1-5 days
160 N/A Not available Call for price 2 (bushing) usually ships 3-26 days
170 373-9147 Side broom star grip Call for price 1 usually ships 7-19 days
180 373-9148 Washer 3.2 x 11 x 1.5 Call for price 1 usually ships 7-19 days
190 273-9959 Screw M3 x 8 $3.39 1 usually ships 7-19 days
200 373-9149 Side broom push button Call for price 1 usually ships 7-19 days
210 373-9150 Bolt 5 x 35 Call for price 2 usually ships 7-19 days
220 373-9083 Locking ring $1.52 2 usually ships 7-19 days
230 373-9151 Leg spring Call for price 1 usually ships 7-19 days
240a 373-9154 Side broom spart parts set $45.41 1 usually ships 7-19 days
240b 373-3067 Side boom cap $4.38 1 usually ships 7-19 days
270 373-4357 Cable tie with clip $2.42 1 usually ships 7-19 days
280 273-4548 Cable tie $1.94 1 usually ships 7-19 days
290 373-9133 Ferrite sleeve Call for price 1 usually ships 7-19 days
