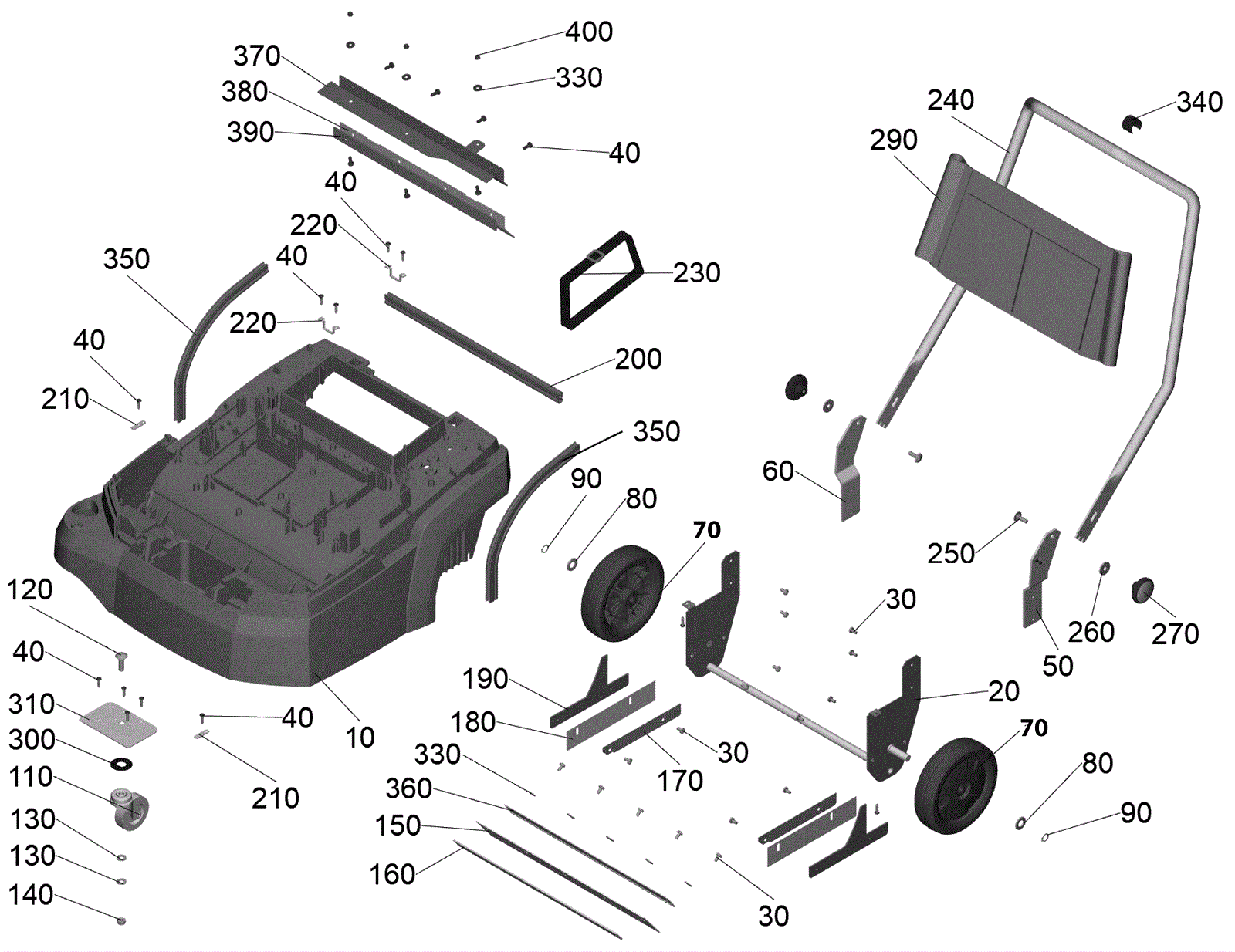

CVS 65/1 BP Frame Assembly-Model 1.517-301.0

#PartDescriptionPriceReqNotesAvailability
10 373-9102 Frame $430.78 1 usually ships 7-19 days
20 373-9085 Rear axle Call for price 1 usually ships 7-19 days
30 183-0236 Screw $0.62 24 usually ships 8-21 days
40 173-6202 Screw M5 x 20mm $1.03 12 ships same day
50 373-9086 Left hand push rod connection Call for price 1 usually ships 7-19 days
60 373-9087 Right hand push rod connection Call for price 1 usually ships 7-19 days
70 373-9088 Wheel D 200 Call for price 2 usually ships 7-19 days
80 373-1698 Washer $7.92 2 ships same day
90 373-1697 Lock washer $12.98 2 ships same day
110 373-4505 Castor $12.73 1 usually ships 7-19 days
120 373-9089 Screw M10 x 45 saucer head (OBSOLETE) Call for price 1 usually ships 7-19 days
130 273-6016 Washer $1.94 2 usually ships 1-5 days
140 999-6697 Nut M10-1.5 hex stainless steel $1.01 1 ships same day
150 373-9103 Front skirting $18.62 1 usually ships 7-19 days
160 373-9090 Front skirting plate Call for price 1 usually ships 7-19 days
170 373-9091 Skirting plate bracket Call for price 2 usually ships 7-19 days
180 373-9104 Side skirting $11.57 2 usually ships 7-19 days
190 373-9092 Sweep roller chest skirting component Call for price 2 usually ships 7-19 days
200 373-9093 19 inch seal Call for price 1 usually ships 7-19 days
210 373-9094 Hinge plate Call for price 2 usually ships 7-19 days
220 373-9095 Fixing strap component Call for price 2 usually ships 7-19 days
230 373-9096 Velcro strip strap Call for price 1 usually ships 7-19 days
240 373-9097 Push rod Call for price 1 usually ships 7-19 days
250 273-6005 Screw M8-1.25 x 25mm saucer head $3.21 2 usually ships 7-19 days
260 273-8151 Washer $1.28 2 usually ships 7-19 days
270 273-6004 Knob $23.10 2 usually ships 7-19 days
290 373-9105 Main accessories shearing shackle $117.93 1 usually ships 7-19 days
300 373-9098 Castor washer Call for price 1 usually ships 7-19 days
310 373-9099 Reinforcment front plate Call for price 1 usually ships 7-19 days
330 173-6337 Washer $1.32 16 usually ships 7-19 days
340 173-5382 Handle clamp $5.45 1 usually ships 1-5 days
350 373-9100 16 inch seal Call for price 2 usually ships 7-19 days
360 373-9101 Envelope component Call for price 1 usually ships 7-19 days
370 N/A Not available Call for price 1 (sheet metal component baffle plate) usually ships 3-26 days
380 N/A Not available Call for price 1 (skirting dirt) usually ships 3-26 days
390 N/A Not available Call for price 1 (plate lip) usually ships 3-26 days
400 273-6081 Nut M6-4 hex $1.87 3 usually ships 7-19 days
