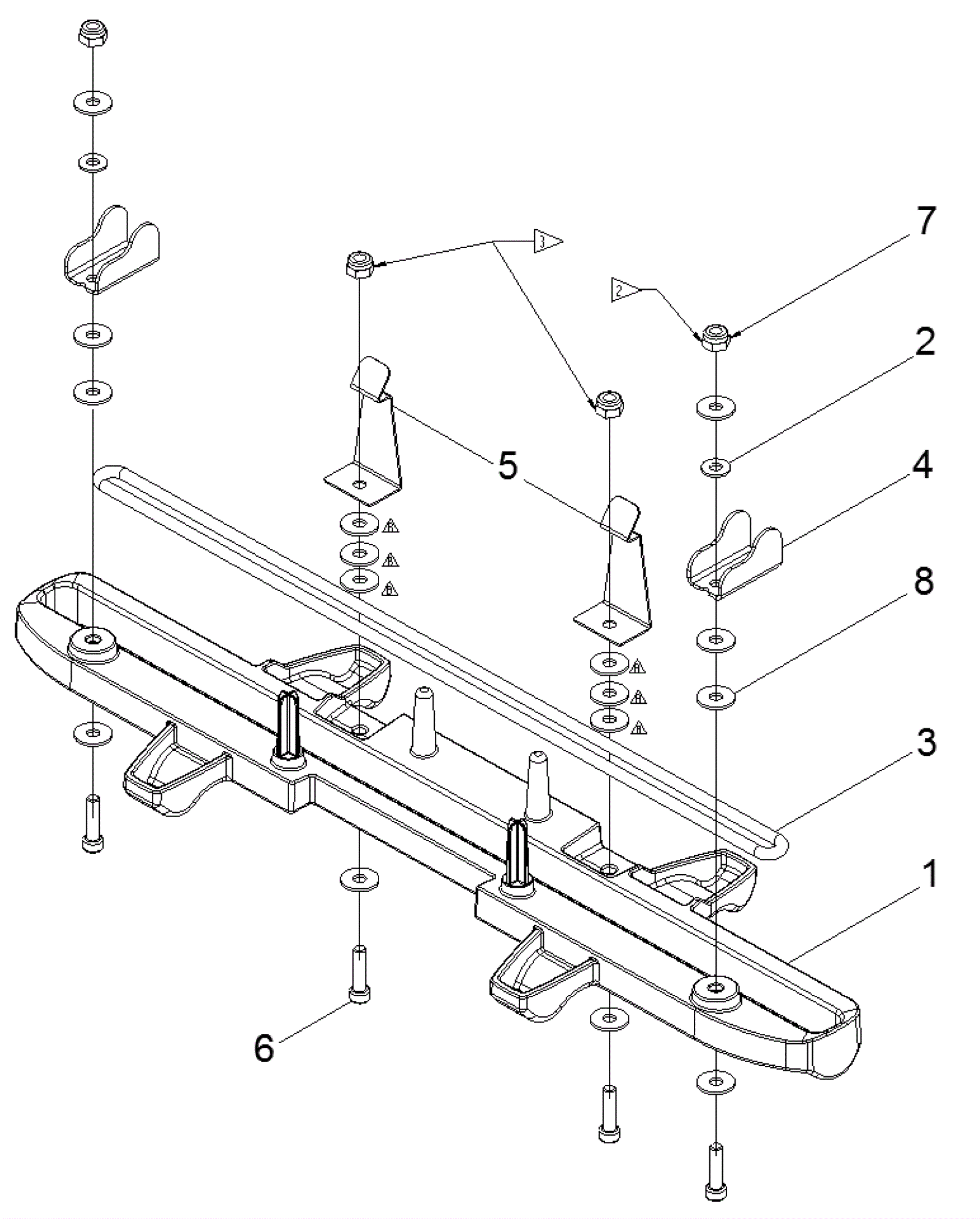

ARMADA BRC 40/22 (GRAY) Vacuum Shoe Assembly-Model 1.008-060.0

#PartDescriptionPriceReqNotesAvailability
1 373-4977 Vacuum shoe base $47.52 1 usually ships 7-19 days
2 273-3258 Washer $1.88 2 usually ships 1-5 days
3 273-3252 Gasket $53.13 1 usually ships 7-19 days
4 273-3253 Vac shoe latch $18.04 2 usually ships 7-19 days
5 273-6532 Spring clip $58.31 2 usually ships 7-19 days
6 173-5008 Screw 10-32 x 3/4 shoulder socket cap stainless steel $6.88 4 usually ships 1-5 days
7 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
8 273-5591 Washer M5 flat stainless steel $1.82 16 usually ships 7-19 days
