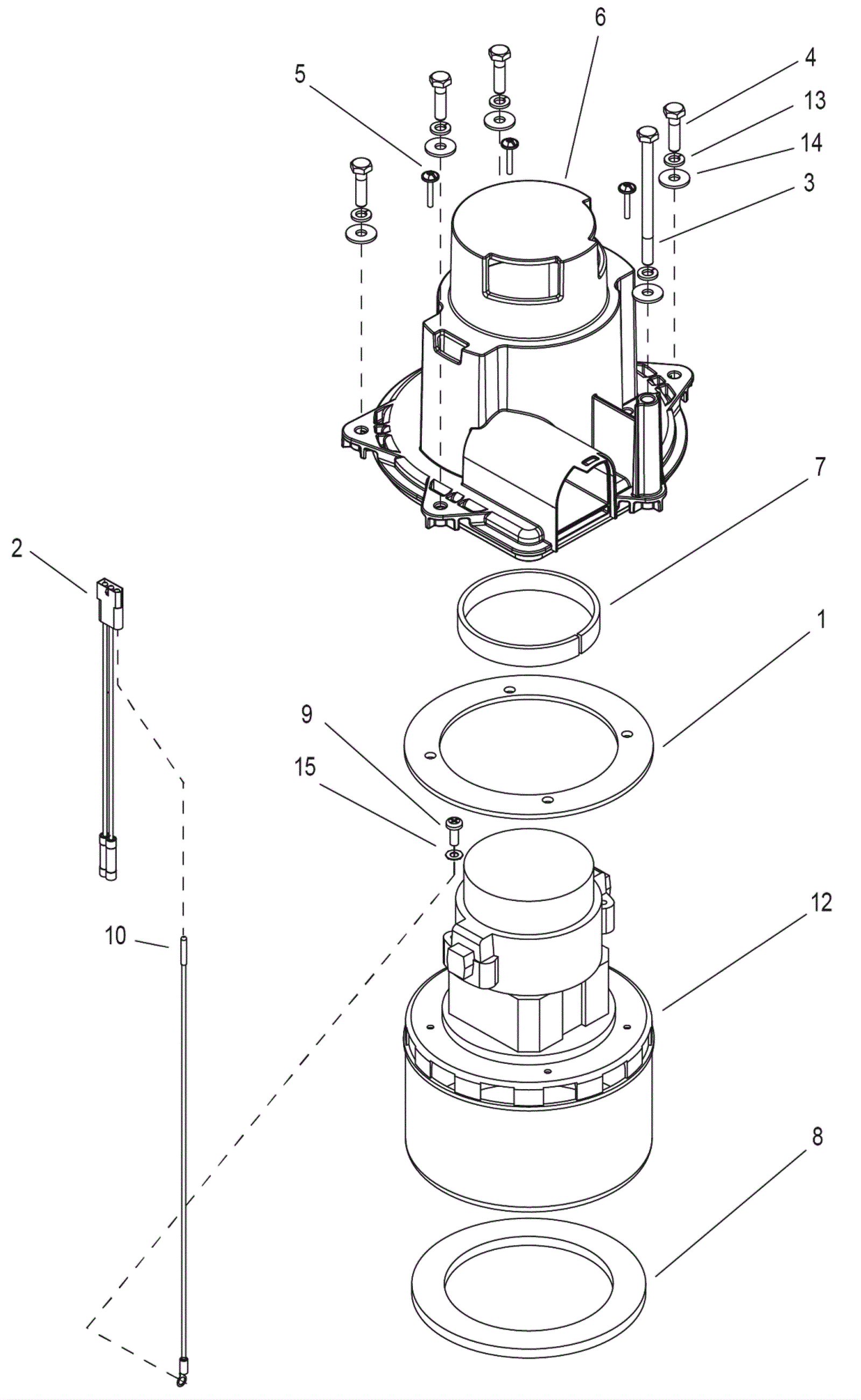

ARMADA BRC 40/22 (GRAY) Vacuum Motor Assembly-Model 1.008-060.0

#PartDescriptionPriceReqNotesAvailability
1 373-4973 Gasket $25.36 1 usually ships 14-22 days
2 273-8547 Vacuum motor harness $24.20 1 usually ships 14-22 days
3 999-1609 Bolt M6-1 x 90mm hex head stainless steel $3.75 1 ships same day
4 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
5 273-8538 Screw $4.18 3 usually ships 14-22 days
6 373-4975 Upper vacuum motor housing $78.10 1 usually ships 14-22 days
7 373-4974 Gasket $1.06 1 usually ships 14-22 days
8 173-7230 Vacuum motor gasket $27.39 1 ships same day
9 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 1 ships same day
10 273-8548 Wire $12.54 1 usually ships 14-22 days
12 373-4972 120V vac motor $265.10 1 ships same day
13 273-5506 Washer 6mm spring lock (OBSOLETE) $1.52 5 usually ships 14-22 days
14 173-4178 Washer M6 flat plated (OBSOLETE) $1.45 5 usually ships 14-22 days
15 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
N/S 173-0822 Wire tie $0.99 1 usually ships 14-22 days
