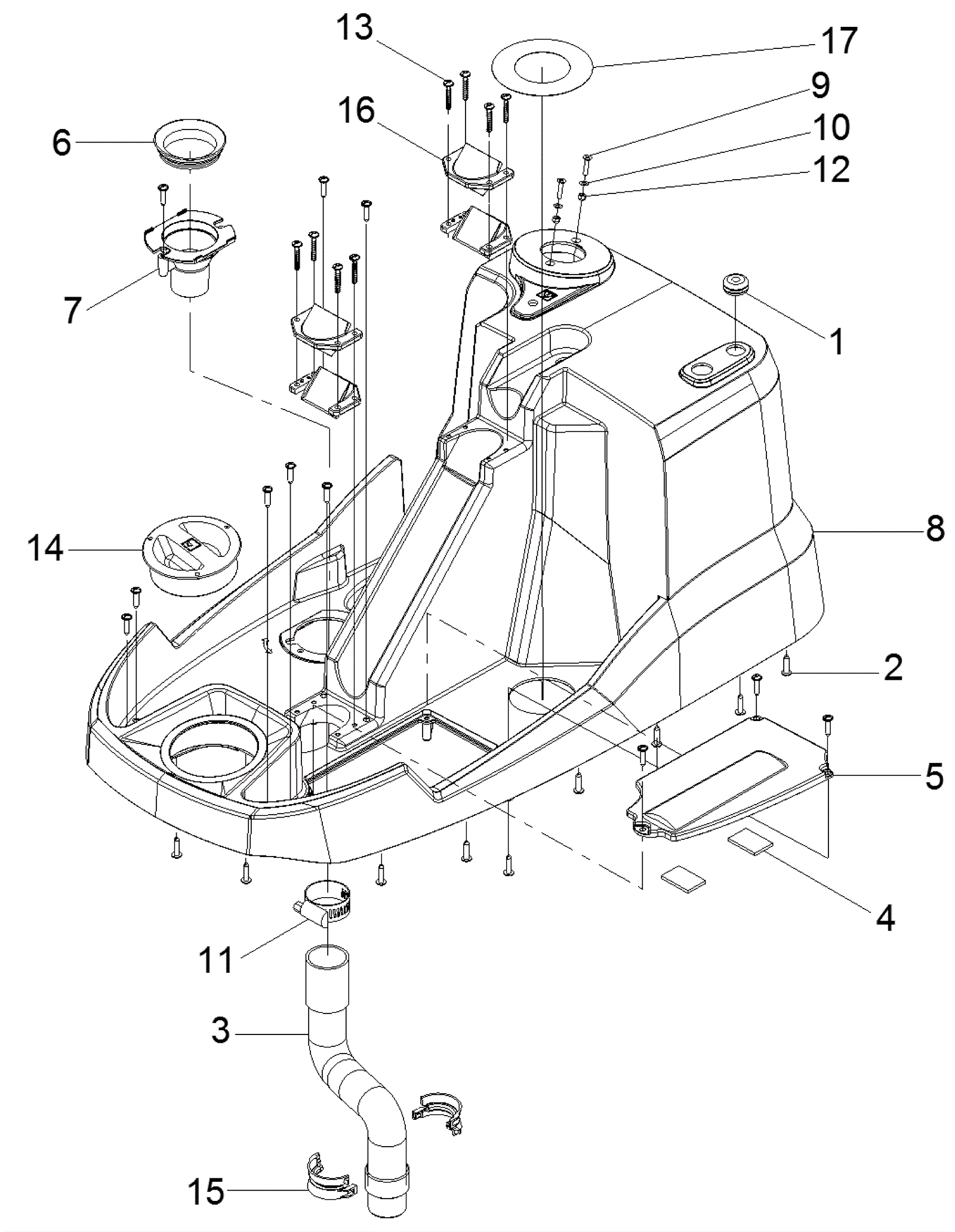

ARMADA BRC 40/22 (GRAY) Tower Assembly-Model 1.008-060.0

#PartDescriptionPriceReqNotesAvailability
1 273-8527 Grommet $5.50 1 usually ships 7-19 days
2 273-8440 Screw (OBSOLETE) $5.48 17 usually ships 7-19 days
3 273-8528 16 inch hose $87.08 1 usually ships 7-19 days
4 273-8529 Gasket $3.21 2 usually ships 7-19 days
5 273-8530 Solution pump cover $21.56 1 usually ships 7-19 days
6 273-8531 Seal $17.27 1 usually ships 7-19 days
7 273-8532 Tube $18.04 1 usually ships 7-19 days
8 273-8533 Solution tank base $146.30 1 usually ships 7-19 days
9 999-9141 Screw M4-.7 x 20mm pan flat head phillips stainless steel $0.99 2 usually ships 11-24 days
10 173-7429 Washer M4 flat $0.99 2 usually ships 1-5 days
11 997-2007 Hose clamp $2.07 1 ships same day
12 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
13 273-0977 Screw M5-10.9 x 30mm $3.39 8 usually ships 7-19 days
14 273-8534 Lid $4.66 1 usually ships 7-19 days
15 273-8535 Hose clamp $9.15 2 usually ships 7-19 days
16 273-8536 Bearing $17.27 4 usually ships 7-19 days
17 273-8537 Seal $26.73 1 usually ships 7-19 days
18 273-8538 Screw $4.18 1 usually ships 7-19 days
