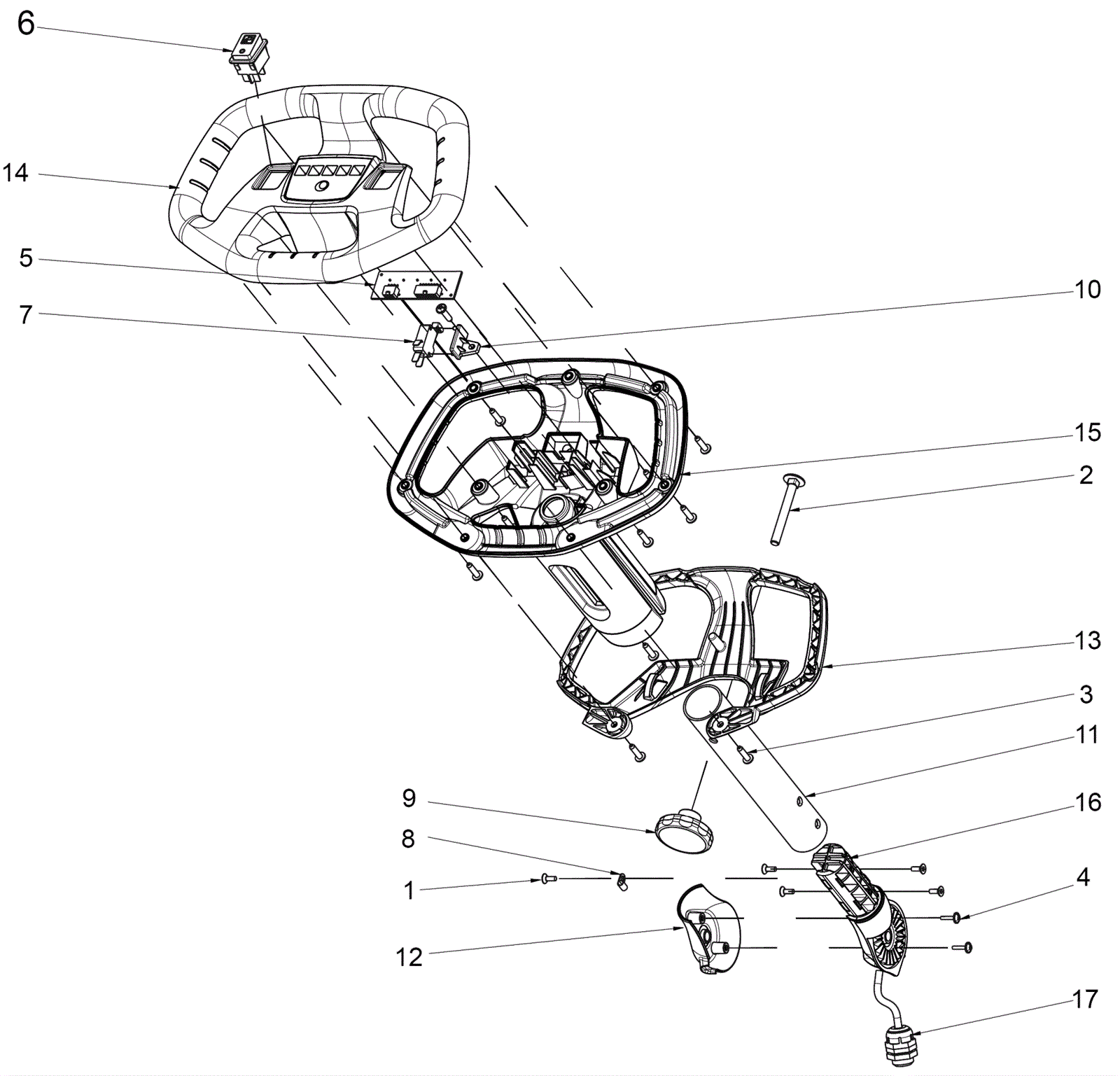

ARMADA BRC 40/22 (GRAY) Upper Steering Assembly-Model 1.008-060.0

#PartDescriptionPriceReqNotesAvailability
1 273-9043 Screw M5 x 16 countersunk $0.99 5 usually ships 7-19 days
2 273-9029 Screw M8 x 70 saucer head $5.32 1 usually ships 7-19 days
3 173-6202 Screw M5 x 20mm $1.03 11 ships same day
4 183-0075 Screw 5-16 x 10.9mm $0.99 2 usually ships 8-21 days
5 273-9033 Diode board $123.20 1 usually ships 7-19 days
6 273-8526 Switch $42.35 1 usually ships 7-19 days
7 273-9039 Switch $78.65 1 usually ships 7-19 days
8 273-9040 Pipe clamp $5.06 1 usually ships 7-19 days
9 273-6004 Knob $23.10 1 usually ships 7-19 days
10 173-6270 Micro switch retainer $8.64 1 usually ships 7-19 days
11 373-4970 Upper steering column $141.53 1 usually ships 7-19 days
12 273-9037 Joint cable gland cap $15.51 1 usually ships 7-19 days
13 273-9036 Retaining bracket switch $64.90 1 usually ships 7-19 days
14 273-9034 Top steering wheel $59.95 1 usually ships 7-19 days
15 273-9035 Bottom steering wheel $90.20 1 usually ships 7-19 days
16 273-9028 Joint steering pillar $114.40 1 usually ships 7-19 days
17 373-4971 Steering cable harness $610.50 1 usually ships 7-19 days
