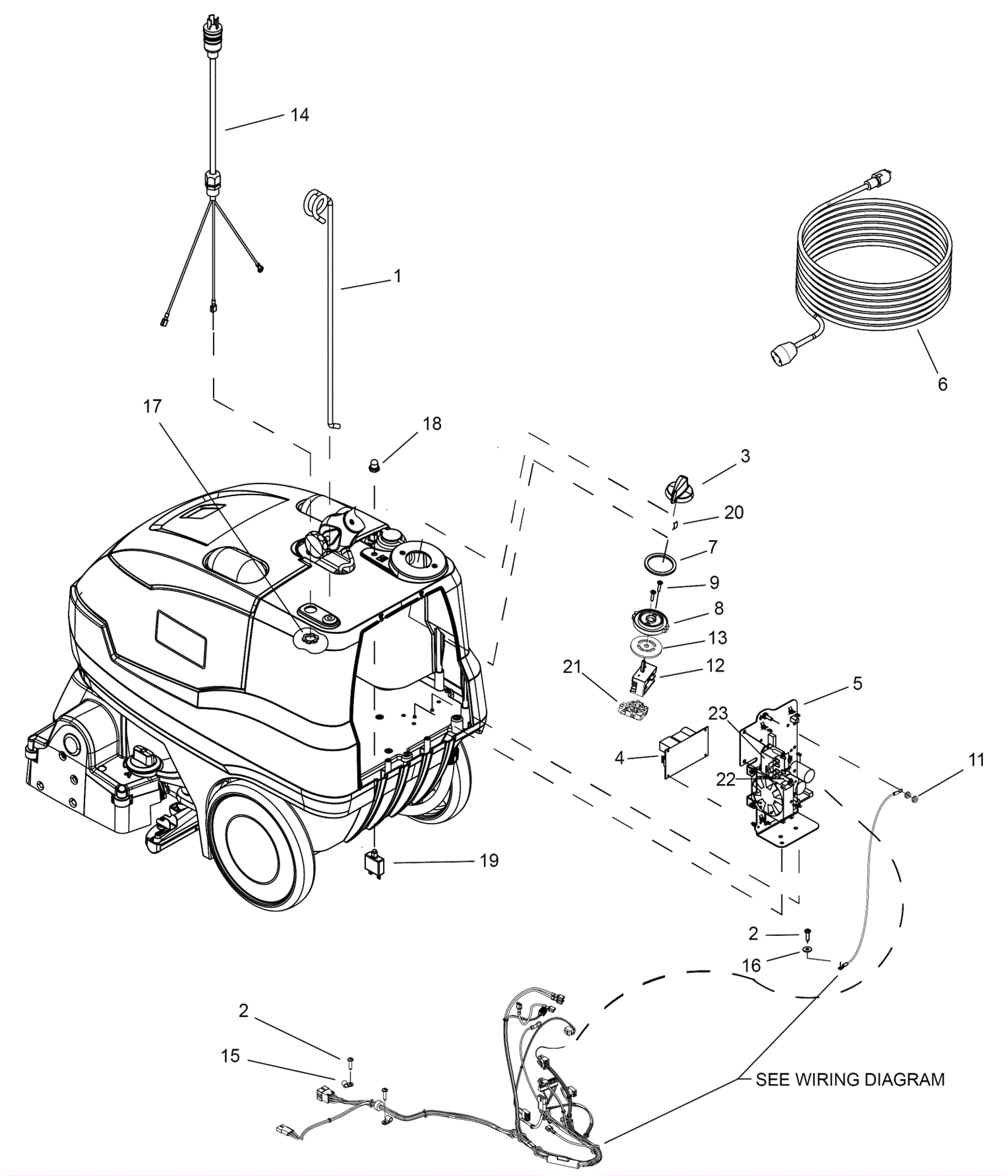

ARMADA BRC 40/22 (GRAY) Electrical Assembly-Model 1.008-060.0

#PartDescriptionPriceReqNotesAvailability
1 273-8491 Cord holder $71.21 1 usually ships 11-16 days
2 273-8440 Screw (OBSOLETE) $5.48 4 usually ships 11-16 days
3 273-6022 Knob $4.30 1 ships same day
4a 373-4962 120V power supply $57.44 1 usually ships 11-16 days
4b 373-4962 120V power supply $57.44 1 (after SN 3) usually ships 11-16 days
5 273-8493 Control board assembly $1,221.24 1 ships same day
6a 173-2059 14/3 extension cord 50 foot twist lock (yellow) $184.79 1 (oem) usually ships 11-16 days
6b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (non-oem) ships same day
7 273-6633 Gasket $4.51 1 usually ships 11-16 days
8 273-6632 Rotary switch (bezel) $27.54 1 usually ships 11-16 days
9 999-9141 Screw M4-.7 x 20mm pan flat head phillips stainless steel $0.99 2 usually ships 19-32 days
10 173-2014 Screw 4-40 x 1/4 $0.99 8 usually ships 1-5 days
11 173-2472 Nut 10-32 with star washer $0.99 2 usually ships 1-5 days
12 273-8494 Switch $8.29 1 usually ships 11-16 days
13 273-8495 Spacer $3.31 1 usually ships 11-16 days
14 373-4963 120V cord assembly 14/3 22 inch $21.31 1 (after SN 4) (should only be replaced by a certified techinician) usually ships 11-16 days
15 173-7218 Hose clamp (OBSOLETE) $0.99 3 usually ships 11-16 days
16 273-5591 Washer M5 flat stainless steel $2.33 1 usually ships 11-16 days
17 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.99 1 usually ships 11-16 days
18 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 13-23 days
19 273-0038 18amp circuit breaker $41.07 1 usually ships 11-16 days
20 273-9368 Knob w/ spring clip $8.06 1 ships same day
21 273-8496 Switch $30.13 1 usually ships 11-16 days
22 373-4965 120V relay $20.65 1 (after SN 5) usually ships 11-16 days
23 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 2 ships same day
