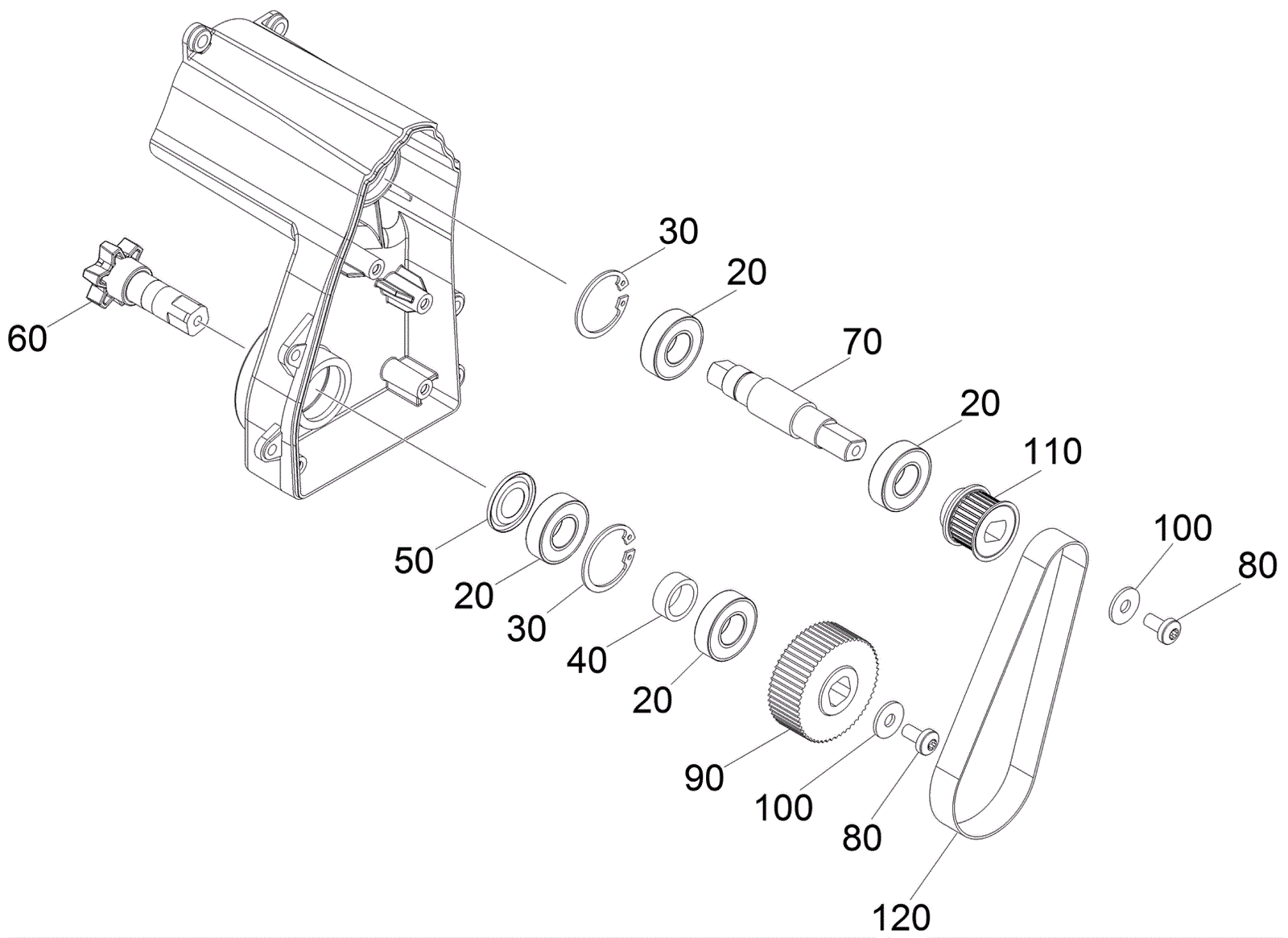

ARMADA BRC 40/22 (GRAY) Gear Case Replacement Assembly-Model 1.008-060.0

#PartDescriptionPriceReqNotesAvailability
20 273-5827 Ball bearing $35.75 4 usually ships 7-19 days
30 273-5828 Locking ring $2.71 2 usually ships 7-19 days
40 173-6284 Spacer sleeve $11.44 1 usually ships 7-19 days
50 173-6283 Joint ring $5.20 1 usually ships 7-19 days
60 173-6282 Driveshaft $94.06 1 usually ships 7-19 days
70 273-9060 Gear shaft $98.45 1 usually ships 7-19 days
80 273-9061 Screw M6 x 12-A2/70-ISO7045 $31.13 2 usually ships 7-19 days
90 373-4951 Belt pulley $25.96 1 usually ships 7-19 days
100 173-5899 Washer $0.99 2 usually ships 7-19 days
110 273-9062 Belt pulley $72.05 1 usually ships 7-19 days
120 273-8466 Belt $81.96 1 usually ships 7-19 days
