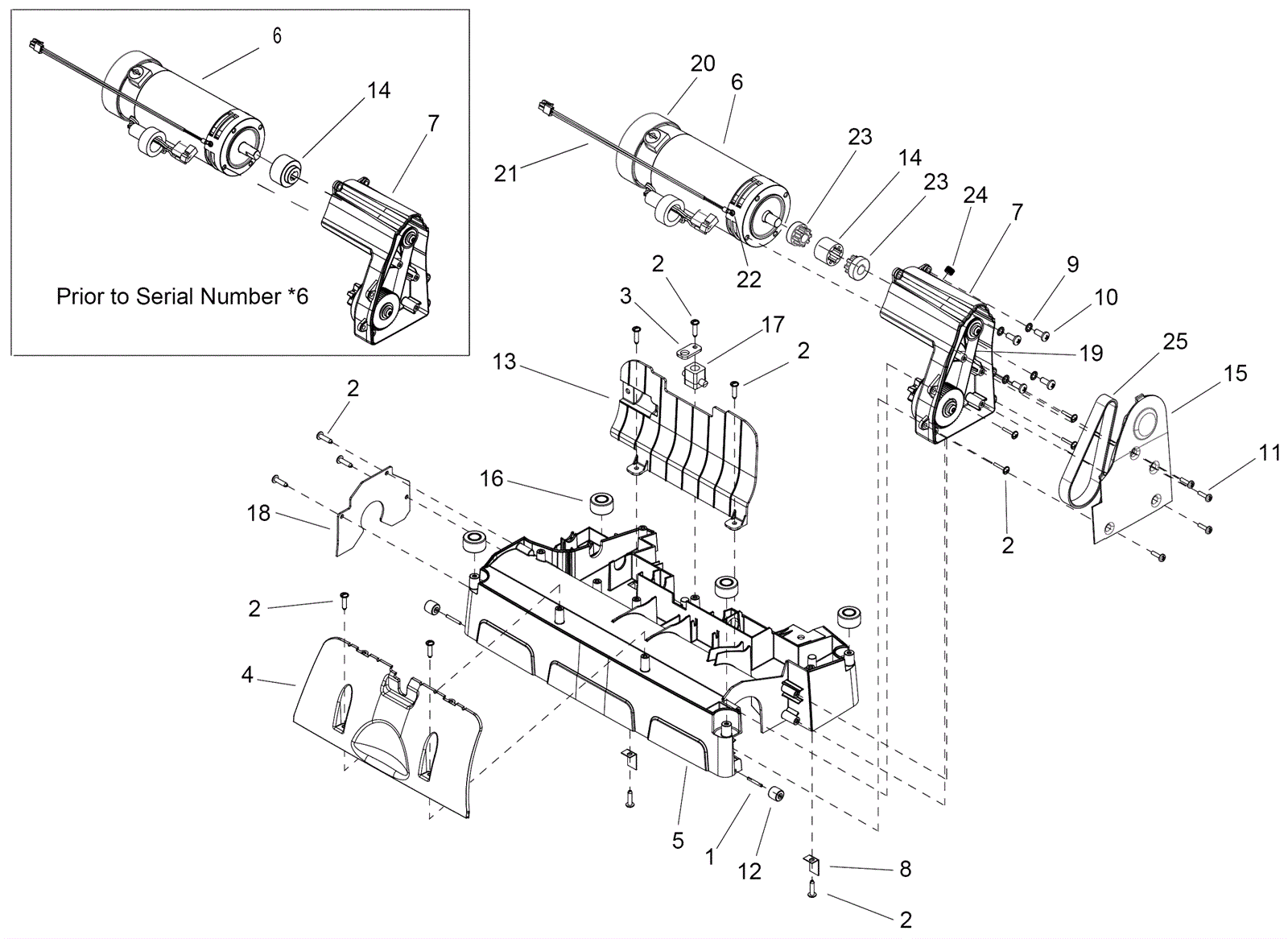

ARMADA BRC 40/22 (GRAY) Lower Brush Deck Assembly-Model 1.008-060.0

#PartDescriptionPriceReqNotesAvailability
1 273-8452 Axle $1.41 2 usually ships 11-16 days
2 273-8440 Screw (OBSOLETE) $5.48 14 usually ships 11-16 days
3 273-8453 Plate $4.03 1 usually ships 11-16 days
4 273-8454 Spray shield $25.89 1 usually ships 11-16 days
5 273-8455 Lower deck $46.02 1 usually ships 11-16 days
6a 373-4945 250W brush motor $243.64 1 (after SN 6) (as built) usually ships 11-16 days
6b 373-4946 250W brush motor replacement $411.60 1 (after SN 6) usually ships 11-16 days
6c 373-4947 120V brush motor $781.53 1 (before SN 6) usually ships 11-16 days
6d 273-8456 120V brush motor assembly $882.75 1 (before SN 6) (includes 20) usually ships 11-16 days
7a 273-8457 Gear case $760.34 1 (before SN 6) usually ships 11-16 days
7b 373-4948 Brush transmission $116.17 1 (after SN 6) usually ships 11-16 days
8 273-8458 Plate $11.19 2 usually ships 11-16 days
9 173-6298 Serrated lock washer $1.06 4 usually ships 1-5 days
10 183-0236 Screw $0.99 4 usually ships 15-28 days
11 173-6287 Screw M5 x 16mm (OBSOLETE) $2.26 4 usually ships 11-16 days
12 273-8459 Roller $4.81 2 usually ships 11-16 days
13 273-8460 Plate $41.07 1 usually ships 11-16 days
14a 273-8461 Coupler $78.28 1 (before SN 6) usually ships 11-16 days
14b 373-4949 Coupling sleeve $3.81 1 usually ships 11-16 days
15 273-8462 Gear case cover $36.01 1 usually ships 11-16 days
16 273-8463 Deflector $7.83 1 usually ships 11-16 days
17 273-8464 Swivel joint $16.71 1 usually ships 11-16 days
18 273-8465 Brush plate $107.70 1 usually ships 11-16 days
19 273-8466 Belt $87.69 1 usually ships 11-16 days
20 273-8467 Brush motor fan $9.68 1 usually ships 11-16 days
21 373-4950 Thermister harness $56.85 1 usually ships 11-16 days
22 273-5441 Screw M3 x 6mm button socket head (OBSOELTE) $2.18 1 usually ships 11-16 days
23 273-3183 Coupling hub $32.60 2 (after SN 6) usually ships 11-16 days
24 373-4943 Low pressure plug $0.99 1 usually ships 11-16 days
25 373-4944 Elastic rib belt $51.55 1 usually ships 11-16 days
