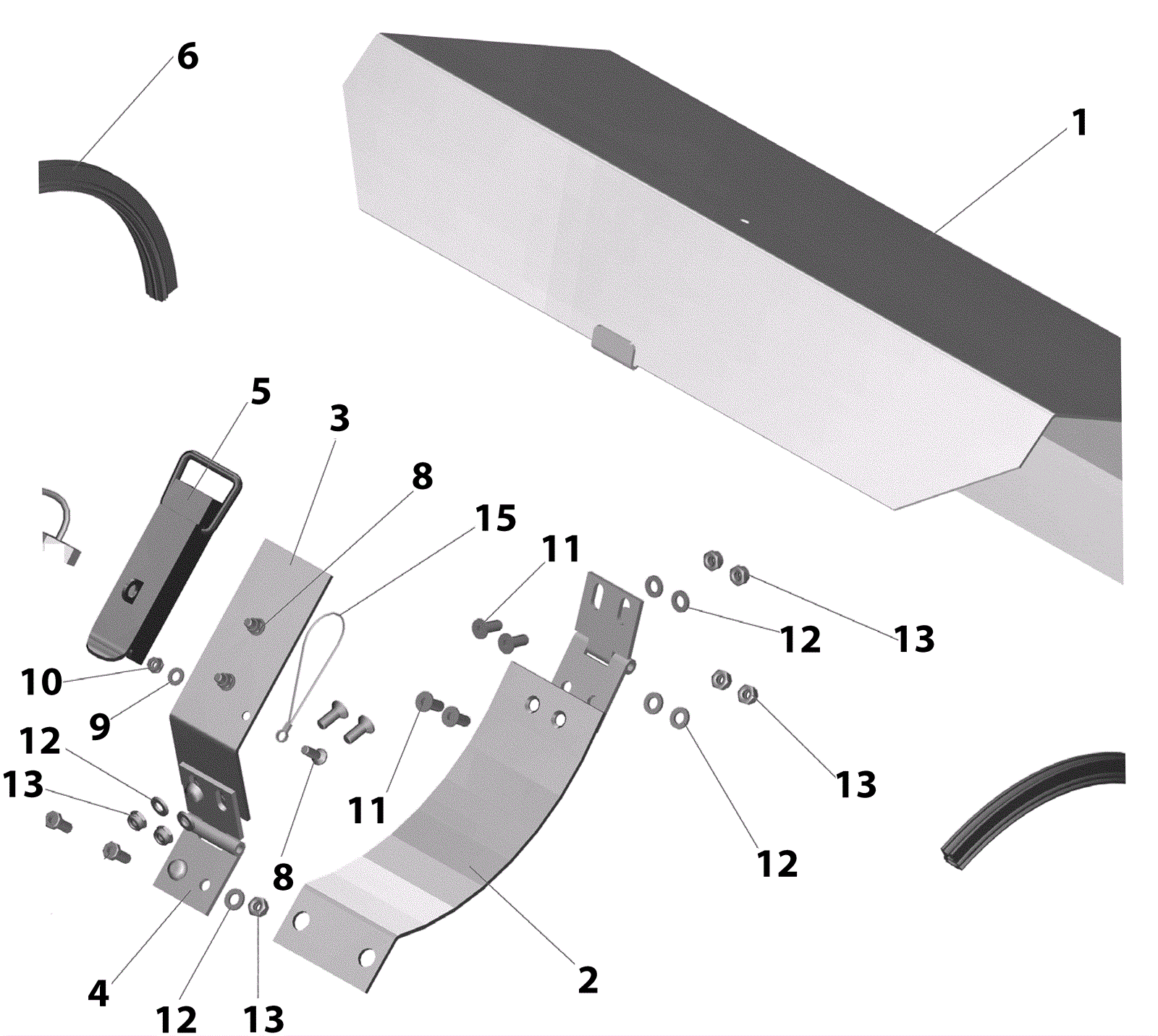

KM 105/100 R LPG Cover Set Assembly-Model 1.280-140.0

#PartDescriptionPriceReqNotesAvailability
1 373-4868 LPG cover complete $250.02 1 usually ships 14-22 days
2 373-4869 Cover holder $36.55 1 usually ships 14-22 days
3 373-4863 Closure $33.62 1 usually ships 14-22 days
4 373-1953 Hinge Call for price 2 usually ships 14-22 days
5 373-4190 Fastener snap $33.03 1 usually ships 14-22 days
6 373-4862 Seal $37.29 12in (to order as cut goods) usually ships 14-22 days
8 273-7918 Screw M5 x 16mm countersink $0.99 3 usually ships 14-22 days
9 173-9042 Washer #5 $1.40 3 usually ships 1-5 days
10 183-4190 Nut hex $1.35 3 usually ships 15-28 days
11 373-1466 Screw M6 x 16mm $5.56 6 usually ships 14-22 days
12 273-7480 Washer 6 $4.18 8 usually ships 1-5 days
13 273-6081 Nut M6-4 hex $1.87 8 usually ships 14-22 days
15 373-4189 Rope with loops $4.95 1 usually ships 14-22 days
N/S 373-4191 Linch pin $2.51 1 usually ships 14-22 days
N/S 373-4188 Safety lock decal $27.72 1 usually ships 14-22 days
N/S 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 2 ships same day
