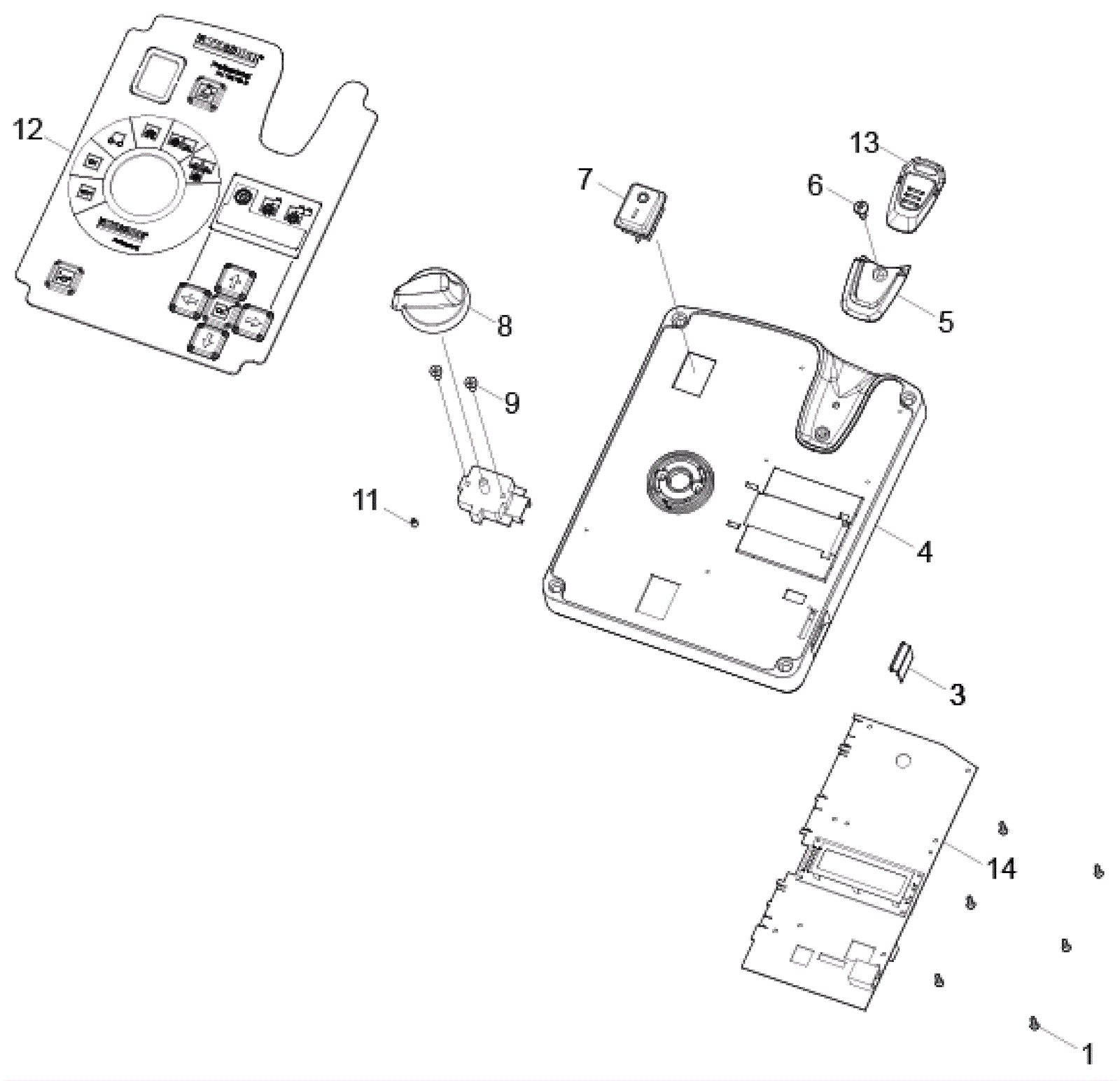

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-9982
|
Screw 3 x 12 |
$3.96
|
6 |
|
usually ships 11-16 days |
3 |
273-9210
|
Rubber stopper |
$7.89
|
1 |
|
usually ships 11-16 days |
4 |
373-4744
|
Control panel |
$42.25
|
1 |
|
usually ships 11-16 days |
5 |
273-9372
|
Guide key |
$21.78
|
1 |
|
usually ships 11-16 days |
6 |
183-0075
|
Screw 5-16 x 10.9mm |
$4.62
|
1 |
|
usually ships 15-28 days |
7 |
273-9360
|
Main switch |
$77.10
|
1 |
|
usually ships 11-16 days |
8a |
273-9368
|
Knob w/ spring clip |
$8.06
|
1 |
(includes 8b) |
ships same day |
8b |
273-9368
|
Knob w/ spring clip |
$8.06
|
1 |
|
ships same day |
9 |
373-4745
|
Screw flat head |
$1.47
|
2 |
|
usually ships 11-16 days |
11 |
373-4746
|
Threaded pin |
$1.47
|
1 |
|
usually ships 11-16 days |
12 |
373-4741
|
Foil control panel |
Call for price
|
1 |
|
usually ships 11-16 days |
13a |
373-4694
|
Key set (yellow) |
$269.53
|
1 |
(includes 13b-13c) |
usually ships 11-16 days |
13b |
373-4747
|
Grey key |
$77.10
|
1 |
|
usually ships 11-16 days |
13c |
373-4743
|
Yellow key |
$77.10
|
5 |
|
usually ships 11-16 days |
14 |
373-4742
|
Control board text display |
Call for price
|
1 |
|
usually ships 11-16 days |
