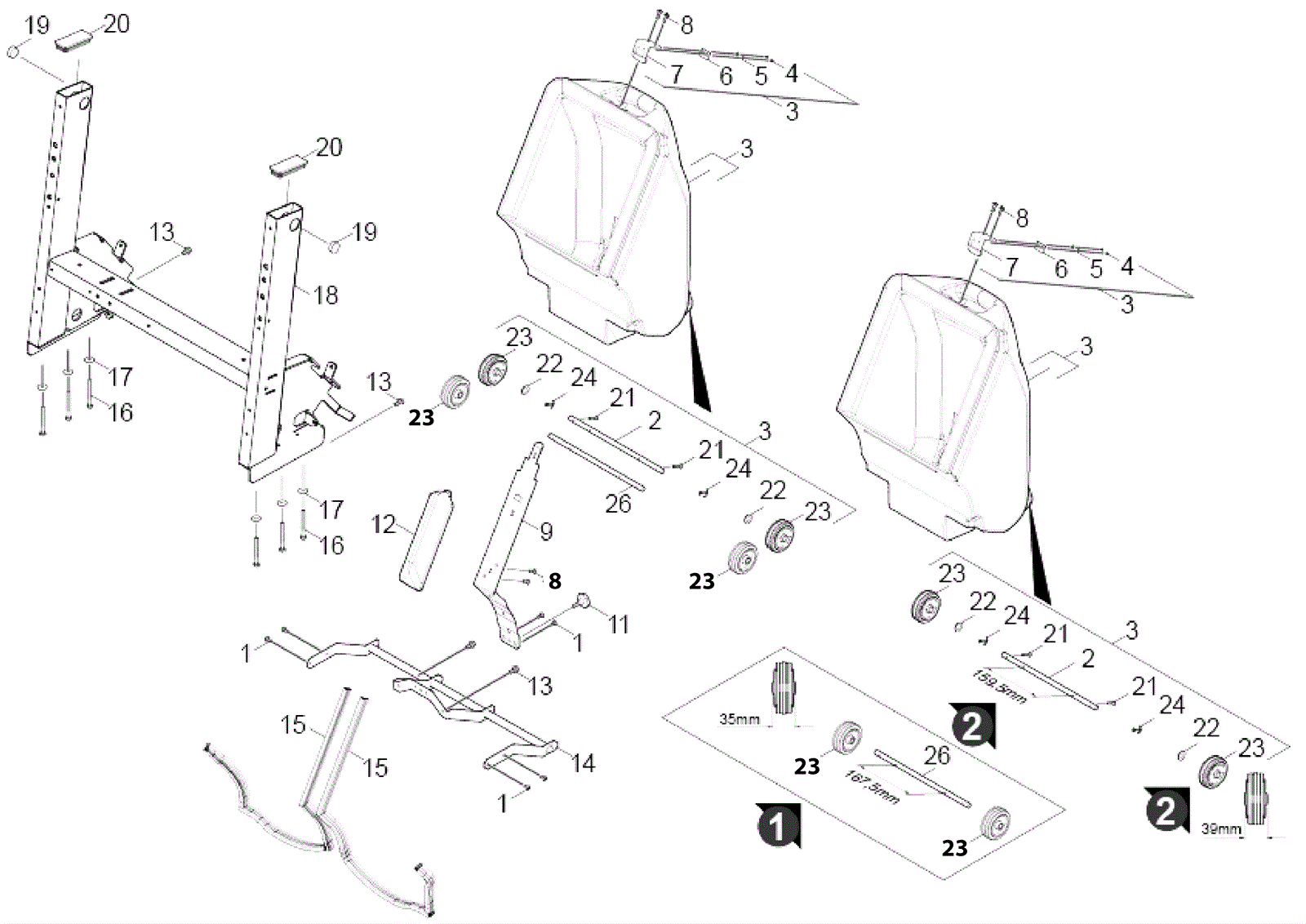

KM 105/100 R Deep Emptying Assembly-Model 1.280-140.0

#PartDescriptionPriceReqNotesAvailability
1 173-6286 Screw M6 x 12mm $2.09 6 usually ships 1-5 days
2 373-4678 Sweep tank axle Call for price 2 (version 2) usually ships 14-22 days
3 373-4679 Sweep tank Call for price 2 (includes 2, 4-8, 21-24, 26) usually ships 14-22 days
4 273-9959 Screw M3 x 8 $3.39 4 usually ships 14-22 days
5 183-0201 Washer (Obsolete) $3.45 4 usually ships 1-5 days
6 373-4630 In housing magnet $14.63 2 usually ships 14-22 days
7 373-4680 Reed holder contact Call for price 2 usually ships 14-22 days
8 273-6089 Screw 6-10.9 x 20mm $1.94 6 usually ships 14-22 days
9 373-4681 Center plate Call for price 1 usually ships 14-22 days
11 373-4682 Star grip Call for price 1 usually ships 14-22 days
12 373-4683 Distributor strip Call for price 1 usually ships 14-22 days
13 373-4573 Screw M8 x 16 $1.64 4 (to order as cut goods) usually ships 14-22 days
14 373-4684 Cross beam Call for price 1 usually ships 14-22 days
15 373-4689 Seal $28.49 1 usually ships 14-22 days
16 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 6 ships same day
17 173-6204 Washer 8M $1.28 6 usually ships 14-22 days
18 373-4685 Carrier complete Call for price 1 usually ships 14-22 days
19 373-4690 Cap $1.89 2 usually ships 14-22 days
20 373-4691 Protective plug $9.46 2 usually ships 14-22 days
21 999-1425 Screw M5-.8 x 25mm pan head stainless steel $1.01 4 ships same day
22 173-6333 Washer $2.30 4 usually ships 1-5 days
23 373-4686 Wheel Call for price 4 usually ships 14-22 days
24 373-4687 Cotter pin Call for price 4 usually ships 14-22 days
26 373-4688 Sweep tank axle Call for price 2 (version 1) usually ships 14-22 days
