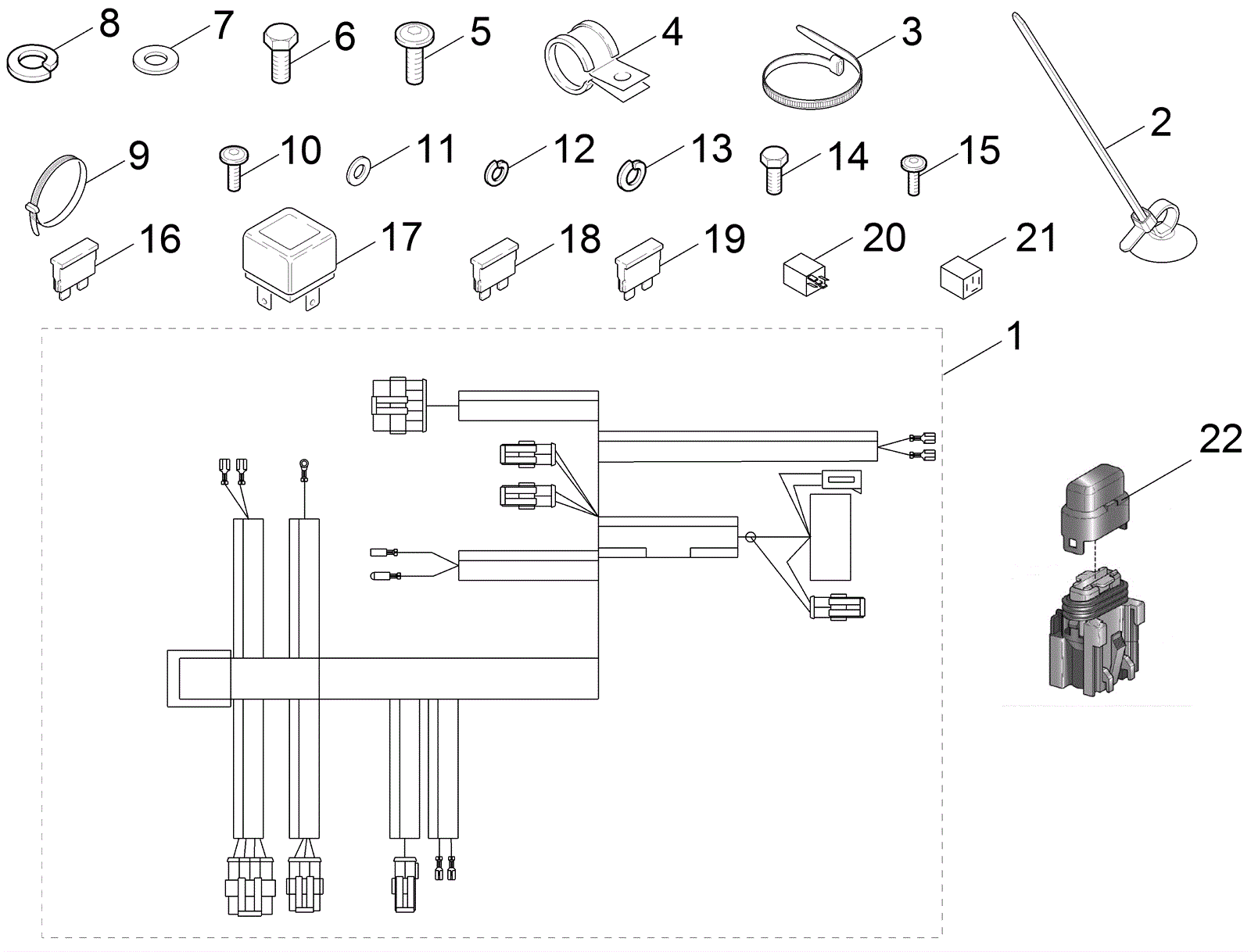

KM 105/100 R Cable Assembly 1-Model 1.280-140.0

#PartDescriptionPriceReqNotesAvailability
1a N/A Not available Call for price 1 (cable set LPG) usually ships 3-26 days
1b 373-4666 Gasoline cable set Call for price 1 (Gasoline) usually ships 14-22 days
1c N/A Not available Call for price 1 (cable set diesel) usually ships 3-26 days
2 373-4661 Cable tie with fixing $2.20 8 usually ships 14-22 days
3 173-9897 Cable tie $1.91 30 usually ships 1-5 days
4 373-4662 Pipe clamp $5.50 1 usually ships 14-22 days
5 273-6089 Screw 6-10.9 x 20mm $1.94 1 usually ships 14-22 days
6 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
7a 173-6297 Washer $1.94 2 (LPG) usually ships 1-5 days
7b 173-9882 Washer serrated lock $2.75 2 (Gasoline) (diesel) usually ships 14-22 days
8 373-3154 Spring washer Call for price 2 usually ships 14-22 days
9 273-4485 Cable tie $0.99 10 usually ships 14-22 days
10 273-8272 Screw M5 x 10 $1.40 1 usually ships 14-22 days
11 273-8124 Washer $0.99 1 (LPG and diesel models only) usually ships 14-22 days
12 273-0755 Spring washer $0.99 1 (LPG and diesel models only) usually ships 14-22 days
13 273-5814 Spring washer $2.85 1 (LPG model only) usually ships 14-22 days
14 183-0262 Hex nut $1.35 1 (LPG model only) usually ships 1-5 days
15 173-2935 Screw M4-.7 x 12mm $4.54 3 (LPG model only) usually ships 1-5 days
16 373-3920 C5 fuse insert $9.79 2 usually ships 14-22 days
17 373-4663 12V relay $26.30 1 usually ships 14-22 days
18 373-4664 7.5A fuse $1.34 1 (LPG model only) usually ships 14-22 days
19 373-4665 5A fuse $1.34 2 (LPG model only) usually ships 14-22 days
20 373-4658 Changeover Call for price 2 (LPG model only) usually ships 14-22 days
21 373-4659 Micro relay base Call for price 2 (LPG model only) usually ships 14-22 days
22 373-4660 Waterproof fuse holder Call for price 2 usually ships 14-22 days
N/S 373-4667 Cable mounting base $5.50 1 (diesel) usually ships 14-22 days
