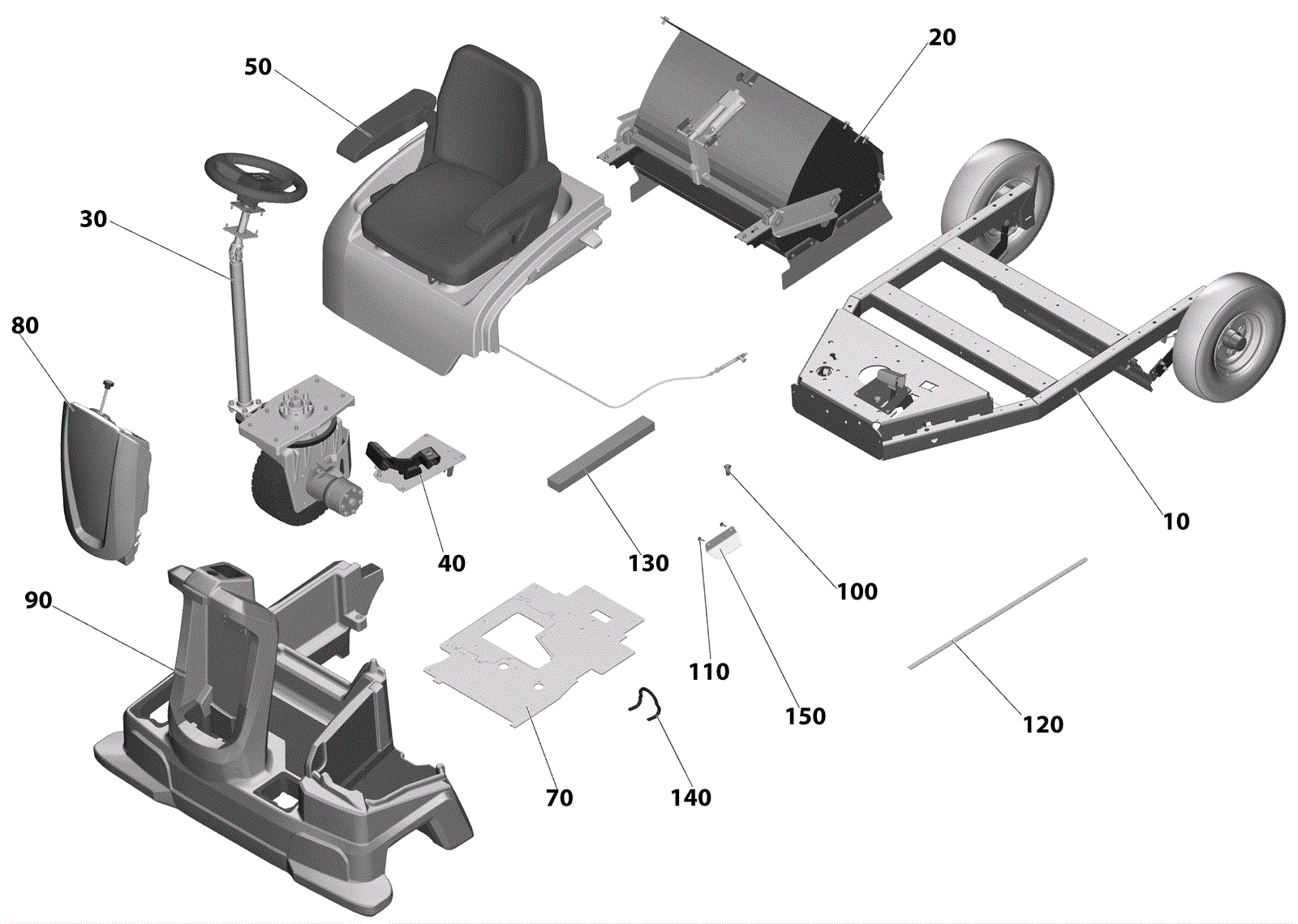

| # | Part | Description | Price | Req | Notes | Availability |
|---|
10 |
N/A
|
Not available |
Call for price
|
1 |
(motor frame) |
usually ships 3-26 days |
20 |
N/A
|
Not available |
Call for price
|
1 |
(sweep roller chest) |
usually ships 3-26 days |
30 |
N/A
|
Not available |
Call for price
|
1 |
(steering) |
usually ships 3-26 days |
40a |
N/A
|
Not available |
Call for price
|
1 |
(pedal assembly) (version 1) |
usually ships 3-26 days |
40b |
373-4533
|
Combustion engine pedal cast |
Call for price
|
1 |
(version 2) |
usually ships 14-22 days |
50 |
N/A
|
Not available |
Call for price
|
1 |
(right hand cover) |
usually ships 3-26 days |
70 |
373-4534
|
Right hand dust protection |
Call for price
|
1 |
|
usually ships 14-22 days |
80 |
N/A
|
Not available |
Call for price
|
1 |
(hydraulic oil tank) |
usually ships 3-26 days |
90 |
N/A
|
Not available |
Call for price
|
1 |
(front component) |
usually ships 3-26 days |
100 |
373-4536
|
Expanding rivet |
$0.99
|
2 |
|
usually ships 14-22 days |
110 |
273-2139
|
Screw 5 x 20 sonder |
$1.57
|
2 |
|
usually ships 14-22 days |
120 |
173-6271
|
Gasket |
$22.77
|
1 |
|
usually ships 1-5 days |
130 |
373-4537
|
Seal |
$9.79
|
1 |
(to order as cut goods) |
usually ships 14-22 days |
140 |
373-4538
|
Edge protection |
$8.20
|
1 |
(to order as cut goods) |
usually ships 14-22 days |
150 |
373-4535
|
Heat protection plate |
Call for price
|
1 |
|
usually ships 14-22 days |
