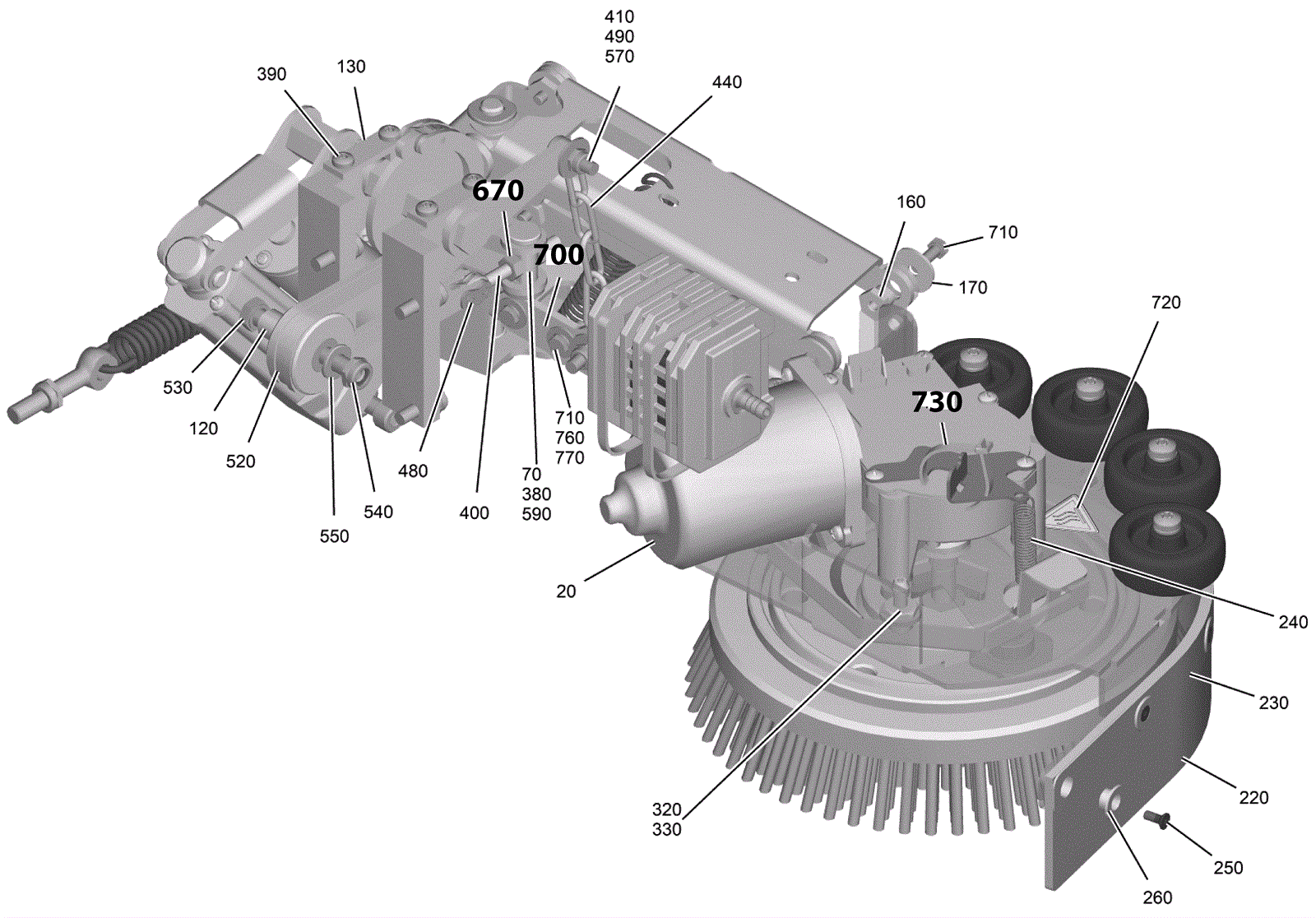

| # | Part | Description |
Req | Notes | Availability |
|---|
20 |
373-4419
|
24V gear motor |
1 |
|
|
70 |
373-4410
|
Bolt |
1 |
|
|
120 |
373-4411
|
Sleeve |
1 |
|
|
130 |
373-4413
|
Plate |
2 |
|
|
160 |
373-4414
|
Bearing sleeve |
8 |
|
|
170 |
373-4389
|
Washer |
8 |
|
|
220 |
373-4421
|
Side scrubbing deck rubber lip (Linatex) |
1 |
|
|
230 |
373-4415
|
Retainer strip |
1 |
|
|
240 |
373-1385
|
Extension spring |
1 |
|
|
250 |
999-9104
|
Screw M4-.7 x 10mm hex head stainless steel |
6 |
|
|
260 |
373-4412
|
Sleeve |
6 |
|
|
320 |
373-1869
|
Nipple |
1 |
|
|
330 |
273-6088
|
Washer |
1 |
|
|
380 |
273-8272
|
Screw M5 x 10 |
5 |
|
|
390 |
999-6690
|
Screw M5-.8 x 12mm hex head stainless steel |
4 |
|
|
400 |
N/A
|
Not available |
1 |
(stockpiling discontinued) |
|
410 |
273-6081
|
Nut M6-4 hex |
2 |
|
|
440 |
273-4594
|
Chain zinc plated (OBSOLETE) |
0.175m |
|
|
480 |
373-1874
|
Chain |
2 |
|
|
490 |
173-6337
|
Washer |
2 |
|
|
520 |
373-4416
|
Roller chain |
1 |
|
|
530 |
999-0788
|
Screw M8-1.25 x 55mm hex head stainless steel |
1 |
|
|
540 |
183-0341
|
Hex nut |
3 |
|
|
550 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
570 |
173-9890
|
Screw M6 x 20 |
4 |
|
|
590 |
273-7448
|
Washer 5 |
6 |
|
|
670 |
183-0262
|
Hex nut |
2 |
|
|
700 |
373-4417
|
Strap |
1 |
|
|
710 |
999-1618
|
Bolt M5-.8 x 16mm hex head stainless steel |
11 |
|
|
720 |
373-4418
|
Hot-do not touch decal |
1 |
|
|
730 |
273-4548
|
Cable tie |
1 |
|
|
760 |
273-0755
|
Spring washer |
3 |
|
|
770 |
999-9100
|
Washer M5 flat stainless steel |
3 |
|
|
