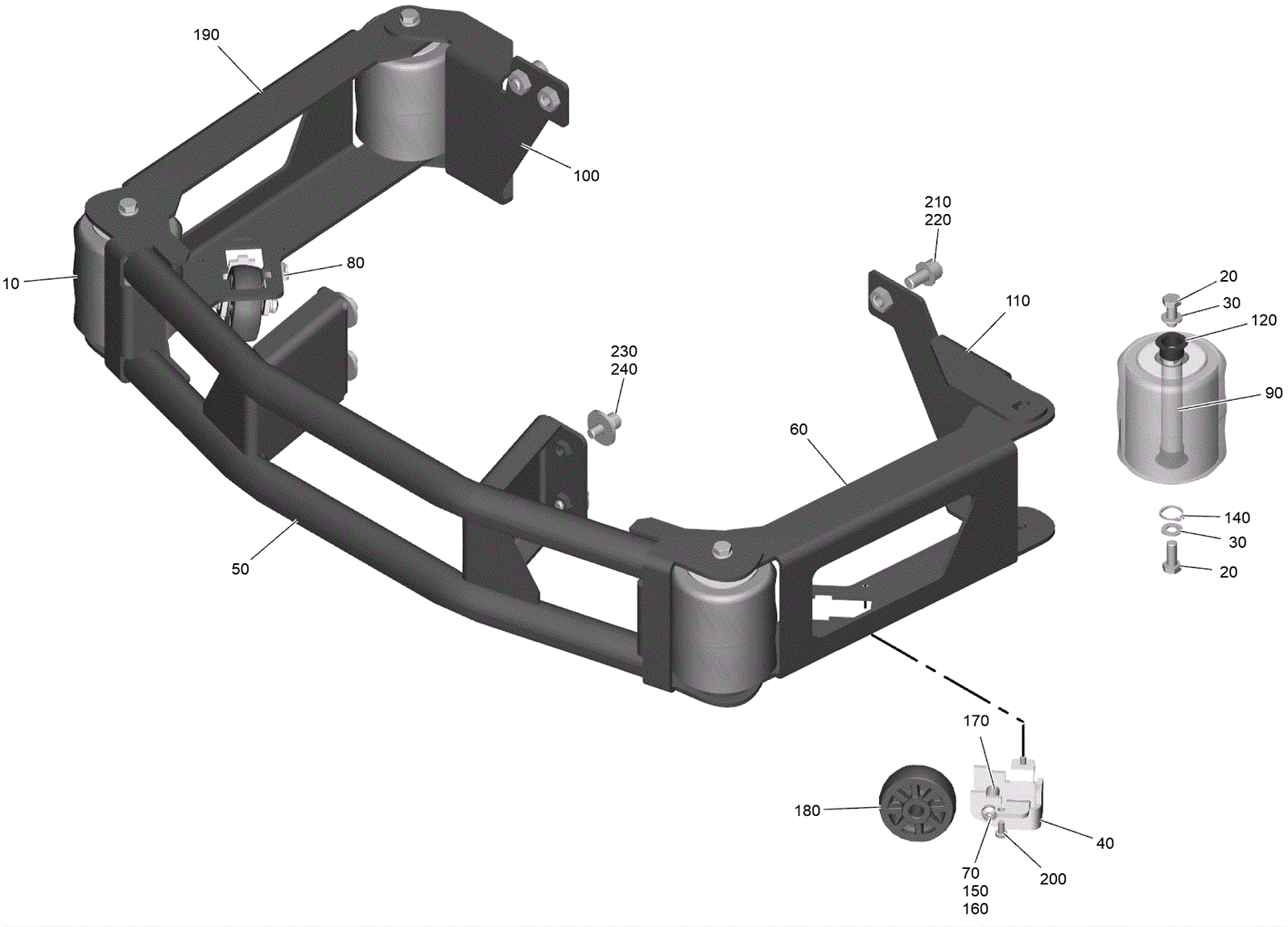

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
373-1884
|
Deflector roll |
4 |
|
|
20 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
8 |
|
|
30 |
999-9097
|
Washer M8 flat stainless steel |
8 |
|
|
40 |
373-4342
|
Left hand roller holder |
1 |
|
|
50 |
373-4343
|
Ram protection |
1 |
|
|
60 |
373-4344
|
Left hand arm plate |
1 |
|
|
70 |
373-4351
|
Screw M6 x 50 |
2 |
|
|
80 |
373-4345
|
Right hand roller holder |
1 |
|
|
90 |
373-1885
|
Deflector roll bolt |
4 |
|
|
100 |
373-4346
|
Right hand connection plate |
1 |
|
|
110 |
373-4347
|
Left hand connection plate |
1 |
|
|
120 |
183-4078
|
Bearing bush |
8 |
|
|
140 |
173-6200
|
Locking ring 16 x 1 |
4 |
|
|
150 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
160 |
999-1308
|
Nut M6-1 hex stainless steel |
2 |
|
|
170 |
373-4348
|
Sleeve |
2 |
|
|
180 |
373-4349
|
Roller |
2 |
|
|
190 |
373-4350
|
Right hand arm plate |
1 |
|
|
200 |
273-8272
|
Screw M5 x 10 |
4 |
|
|
210 |
373-4352
|
Screw M10 x 20 cylinder head |
2 |
|
|
220 |
273-6016
|
Washer |
2 |
|
|
230 |
273-8151
|
Washer |
4 |
|
|
240 |
273-7847
|
Screw M8 x 20mm cylinder head |
4 |
|
|
