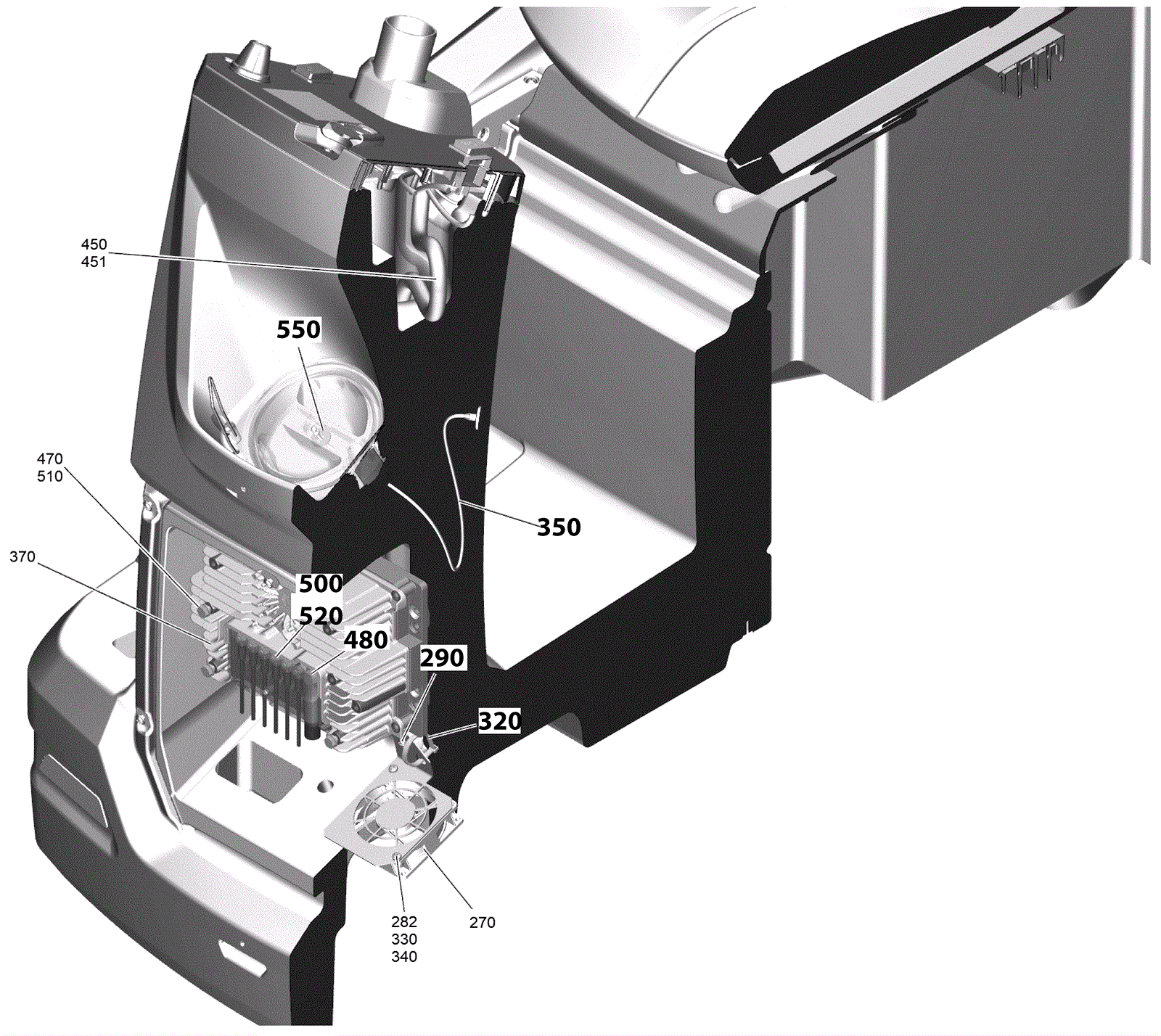

| # | Part | Description |
Req | Notes | Availability |
|---|
270 |
373-4309
|
Axial fan |
1 |
|
|
282 |
273-9303
|
Screw M4 x 12 |
2 |
|
|
290 |
183-0075
|
Screw 5-16 x 10.9mm |
1 |
|
|
320 |
273-4548
|
Cable tie |
1 |
|
|
330 |
999-1619
|
Nut M4 hex stainless steel |
2 |
|
|
340 |
273-7922
|
Washer |
2 |
|
|
350 |
273-0817
|
Cover mounting rope |
1 |
|
|
370 |
373-4311
|
Control system |
1 |
|
|
450 |
373-4308
|
Cable harness |
1 |
|
|
451 |
373-4310
|
Ferrite sleeve |
1 |
|
|
470 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
3 |
|
|
480 |
999-1651
|
Nut M8-1 hex stainless steel |
2 |
|
|
500 |
999-0740
|
Nut M5-.8 hex stainless steel |
6 |
|
|
510 |
273-5814
|
Spring washer |
5 |
|
|
520 |
273-0755
|
Spring washer |
6 |
|
|
550 |
173-5899
|
Washer |
1 |
|
|
