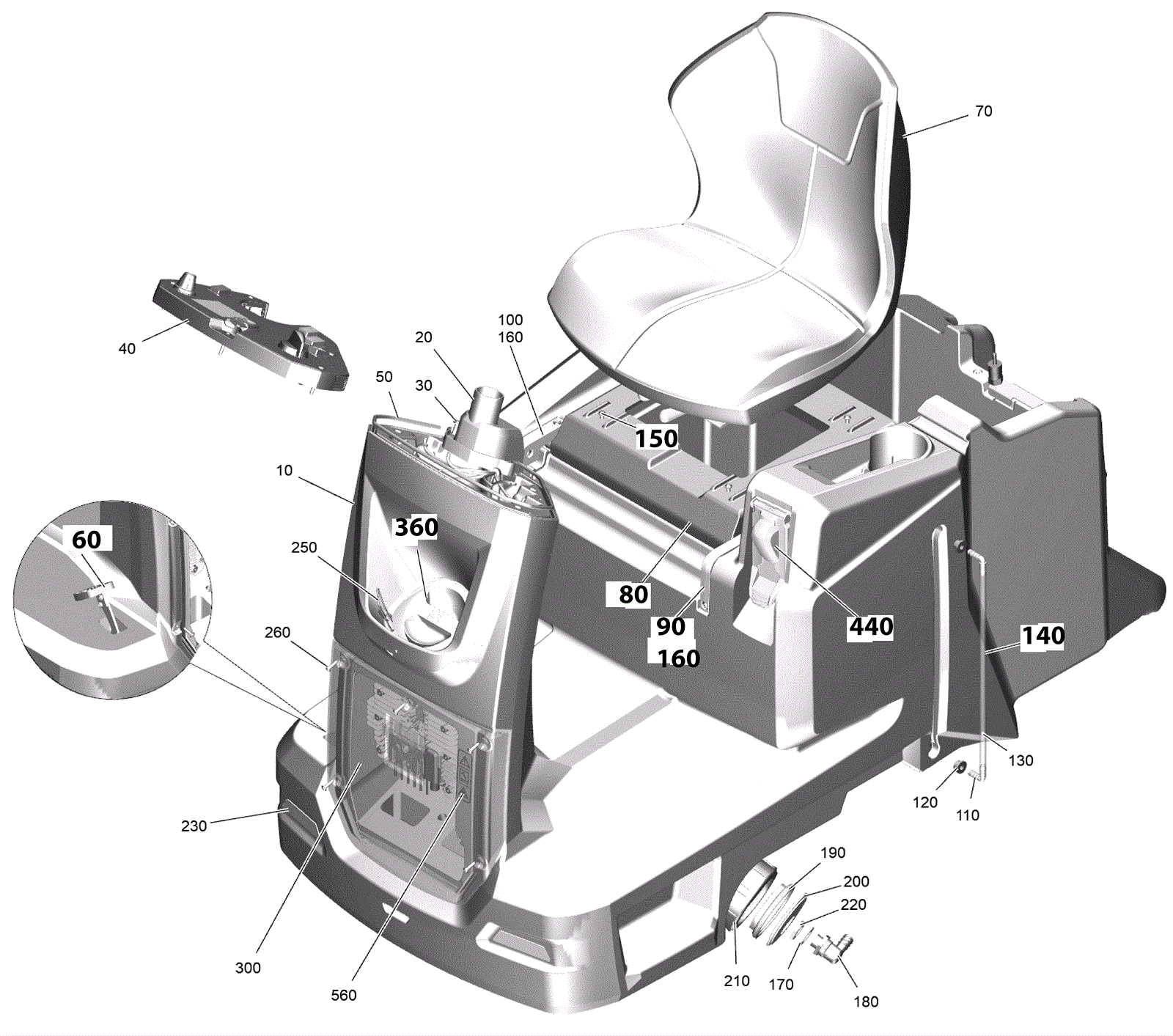

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
373-4296
|
Clean water tank |
1 |
|
|
20 |
373-4297
|
Steering column bearing |
1 |
|
|
30 |
373-1666
|
Screw M8 x 35mm |
2 |
|
|
40 |
N/A
|
Not available |
1 |
(control panel complete) |
|
50 |
373-4304
|
Rubber seal |
2 |
(0.81M) (0.358M) |
|
60 |
N/A
|
Not available |
1 |
(throttle pedal complete) |
|
70a |
273-4521
|
Seat |
1 |
|
|
70b |
273-4536
|
Seat switch |
1 |
|
|
80 |
373-4298
|
Seat carrier plate |
1 |
|
|
90 |
373-4299
|
Left hand seat plate |
1 |
|
|
100 |
373-4300
|
Right hand seat plate |
1 |
|
|
110 |
373-1649
|
Elbow |
2 |
|
|
120 |
373-1652
|
Wire protection sleeve |
2 |
|
|
130 |
373-1651
|
Level indicator sphere |
1 |
|
|
140 |
373-4305
|
Hose level (silicon) |
1 |
|
|
150 |
273-6049
|
Screw 6-10.9 x 25mm |
8 |
|
|
160 |
273-6094
|
Screw 6-10.9 x 35mm |
8 |
|
|
170 |
173-9064
|
Seal |
1 |
|
|
180 |
273-1128
|
Angle bushing |
1 |
|
|
190 |
373-4306
|
Discharge filter |
1 |
|
|
200 |
273-4475
|
Hose connection |
1 |
|
|
210 |
273-4474
|
Water tank discharge cover |
1 |
|
|
220 |
173-5810
|
Nut 1/2 hex |
1 |
|
|
230 |
373-4307
|
Light element |
2 |
|
|
250 |
373-4301
|
Wire hose hanger |
1 |
|
|
260 |
173-6202
|
Screw M5 x 20mm |
10 |
|
|
300a |
373-4302
|
Covering cap |
1 |
|
|
300b |
273-4482
|
Decal with signet clamp |
1 |
|
|
300c |
273-4488
|
Clamp (OBSOLETE) |
5 |
|
|
360 |
373-1654
|
Cover |
1 |
|
|
440 |
273-9216
|
Auto-fill-in |
1 |
|
|
560 |
373-4303
|
Warning decal |
1 |
|
|
