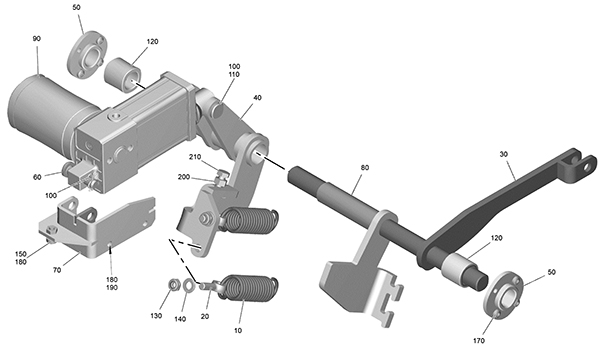

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
273-8293
|
Extension spring |
2 |
|
|
20 |
373-4292
|
Eye screw |
2 |
|
|
30 |
373-4293
|
Lever |
1 |
|
|
40 |
373-4294
|
Lever |
1 |
|
|
50 |
273-4437
|
Bearing sleeve |
2 |
|
|
60 |
273-4445
|
Bolt B10 |
1 |
|
|
70 |
373-4289
|
Hoisting motor holder |
1 |
|
|
80 |
273-4439
|
Bearing sleeve |
1 |
|
|
90 |
373-4295
|
24V hoisting motor |
1 |
|
|
100 |
273-4446
|
Double spring clip |
2 |
|
|
110 |
373-4290
|
Bolt B10 x 50 x 45.5-1 |
1 |
|
|
120 |
373-4291
|
Sleeve |
2 |
|
|
130 |
183-0341
|
Hex nut |
2 |
|
|
140 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
150 |
183-0236
|
Screw |
1 |
|
|
170 |
273-4461
|
Screw M5 x 12 |
6 |
|
|
180 |
273-7480
|
Washer 6 |
3 |
|
|
190 |
183-0262
|
Hex nut |
2 |
|
|
200 |
999-1651
|
Nut M8-1 hex stainless steel |
1 |
|
|
210 |
183-4164
|
Screw, hex head (Obsolete) |
1 |
|
|
