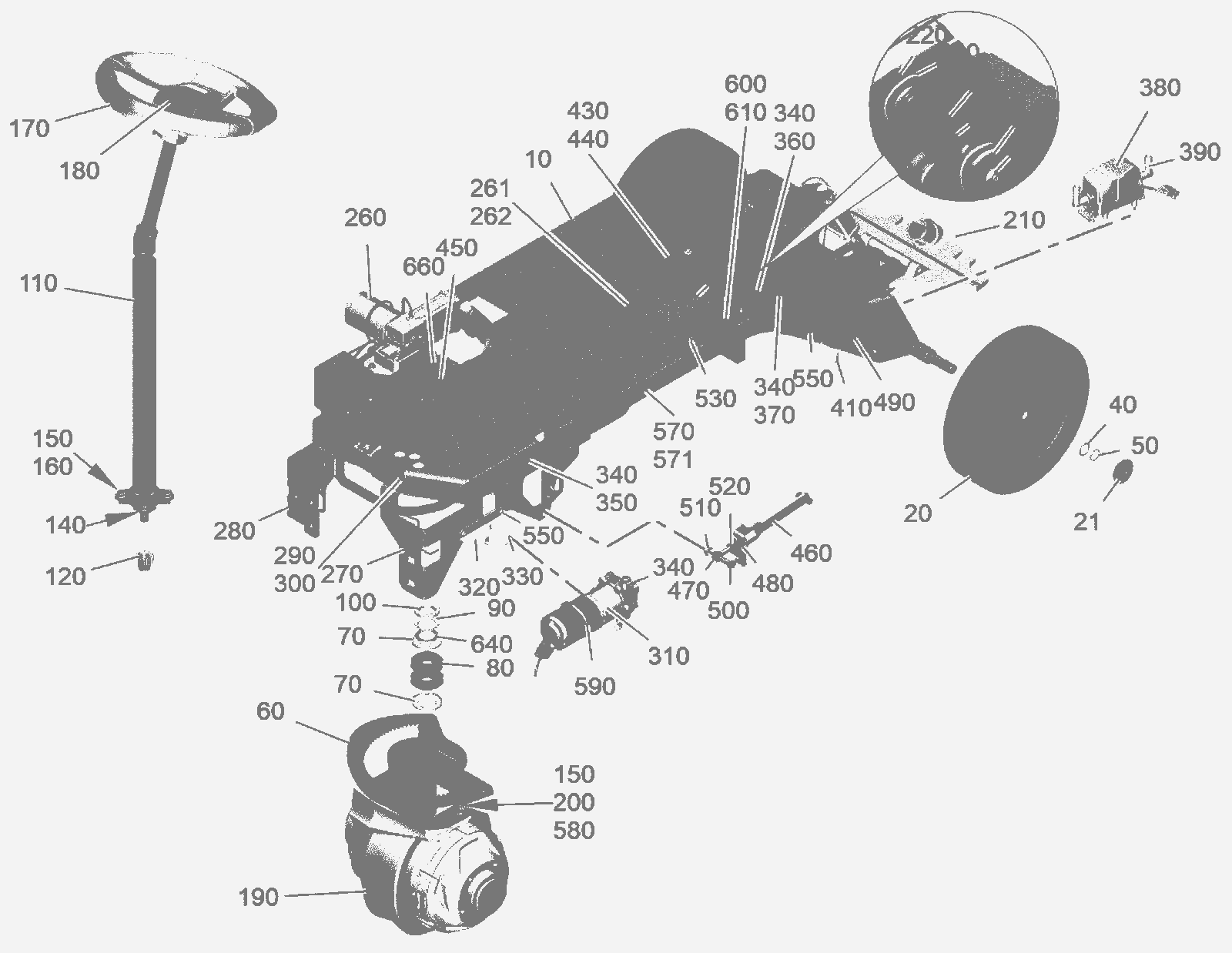

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
373-4238
|
Frame |
1 |
|
|
20 |
373-4251
|
Wheel |
2 |
|
|
21 |
373-4252
|
Wheel cap |
2 |
|
|
40 |
373-4253
|
Washer |
2 |
|
|
50 |
373-4254
|
Locking ring |
2 |
|
|
60 |
373-4239
|
Steering complete |
1 |
|
|
70 |
273-4443
|
Slip ring |
2 |
|
|
80 |
273-4442
|
Taper roller bearing |
2 |
|
|
90 |
273-4452
|
Locking plate |
1 |
|
|
100 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
110 |
373-4240
|
Steering column |
1 |
|
|
120a |
273-4455
|
Set gear wheel |
1 |
|
|
120b |
999-6698
|
Nut M14-2 hex stainless steel |
1 |
|
|
120c |
373-1698
|
Washer |
1 |
|
|
140 |
183-7463
|
Keyway |
1 |
|
|
150 |
273-6016
|
Washer |
8 |
|
|
160 |
273-9257
|
Screw M10 x 20 hex head |
4 |
|
|
170 |
373-4255
|
Steering wheel |
1 |
|
|
180 |
273-3220
|
Steering wheel cap |
1 |
|
|
190 |
373-4241
|
24V wheel drive motor |
1 |
|
|
200 |
273-9272
|
Screw M10 x 25-8.8 hex head |
4 |
|
|
210 |
N/A
|
Not available |
1 |
(suction beam retraction complete) |
|
220 |
373-4242
|
Rubber buffer |
2 |
|
|
230 |
373-4256
|
Pressure spring |
2 |
|
|
240 |
373-4257
|
Washer |
4 |
|
|
250 |
373-4258
|
Spring guide bolt |
2 |
|
|
260 |
N/A
|
Not available |
1 |
(lifting brush head) |
|
261 |
273-4445
|
Bolt B10 |
1 |
|
|
262 |
273-4446
|
Double spring clip |
1 |
|
|
270 |
373-4243
|
Left hand plate |
1 |
|
|
280 |
373-4244
|
Right hand plate |
1 |
|
|
290 |
273-7847
|
Screw M8 x 20mm cylinder head |
12 |
|
|
300 |
999-9097
|
Washer M8 flat stainless steel |
12 |
|
|
310 |
373-4259
|
3/4 inch clean water pump |
1 |
|
|
320 |
373-4245
|
Pump bracket |
1 |
|
|
330 |
373-1445
|
Screw M4 x 10 |
3 |
|
|
340 |
173-9063
|
Holder |
7 |
|
|
350 |
273-5847
|
Spiral hose (sold by the inch) |
0.675M |
|
|
360 |
273-5847
|
Spiral hose (sold by the inch) |
0.42M |
|
|
370 |
273-5847
|
Spiral hose (sold by the inch) |
0.42M |
|
|
380 |
373-4260
|
Regulation water valve |
1 |
|
|
390a |
373-4261
|
Hose stem set |
2 |
|
|
390b |
373-4288
|
Hose stem clip |
1 |
|
|
410 |
173-6202
|
Screw M5 x 20mm |
4 |
|
|
420 |
273-4548
|
Cable tie |
4 |
|
|
430 |
273-3461
|
Hose stem |
1 |
|
|
440 |
273-3462
|
O-ring seal |
1 |
|
|
450 |
373-4246
|
Strap |
1 |
|
|
460a |
373-4262
|
Tension rod set |
2 |
(for brush head br) |
|
460b |
273-4458
|
Tie rod |
2 |
(for brush head bd) |
|
470 |
273-7277
|
Screw M10 x 70 eye |
2 |
|
|
480 |
273-5856
|
Nut M10 knurled |
2 |
|
|
490 |
373-4247
|
Ball valve holder |
1 |
|
|
500 |
273-8270
|
Screw M10 x 35 hex head |
2 |
|
|
510 |
999-6697
|
Nut M10-1.5 hex stainless steel |
2 |
|
|
520 |
273-5855
|
Nut M10 hex |
2 |
|
|
530 |
373-4248
|
Cable tie |
2 |
|
|
550 |
273-7023
|
Screw M6 x 12 |
4 |
|
|
560 |
N/A
|
Not available |
2 |
(stockpiling discontinued) |
|
570 |
373-4249
|
Carriage cable harness |
1 |
|
|
571 |
373-4250
|
Ferrite sleeve |
1 |
|
|
580 |
273-4457
|
Washer (OBSOLETE) |
4 |
|
|
590 |
273-1310
|
Cable tape |
1 |
|
|
600 |
373-2010
|
T-piece |
1 |
|
|
610 |
373-4263
|
Cap closure |
1 |
|
|
640 |
273-4459
|
Shim ring |
1 |
|
|
650 |
273-9061
|
Screw M6 x 12-A2/70-ISO7045 |
2 |
|
|
660 |
999-1320
|
Screw M6-1 x 20mm socket head stainless steel |
2 |
|
|
