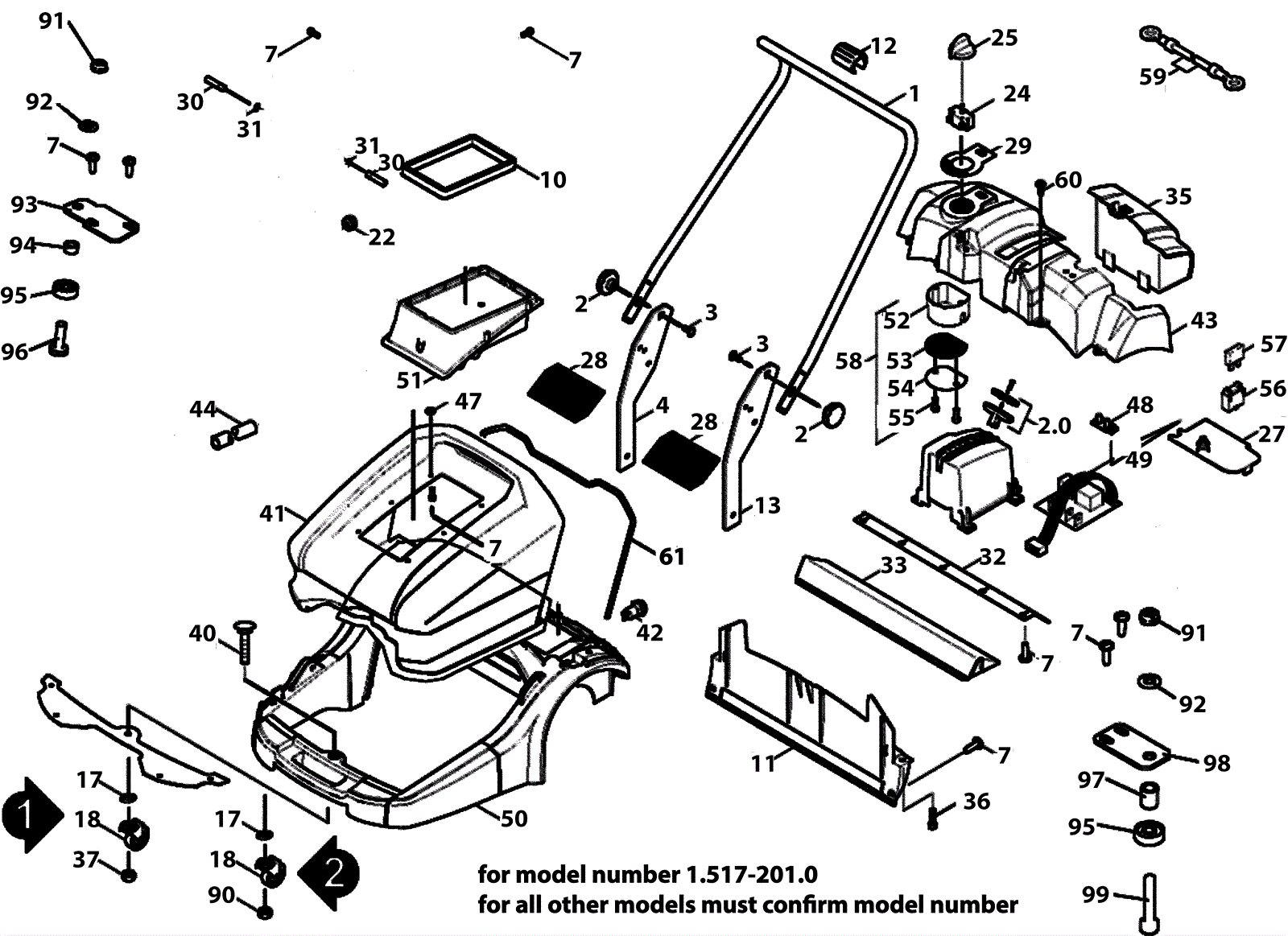

KM 70/30 Main Assembly-Model 1.517-201.0

#PartDescriptionPriceReqNotesAvailability
1 173-5377 Handle $172.70 1 usually ships 1-5 days
2 273-6004 Knob $23.10 2 usually ships 7-19 days
3 273-6005 Screw M8-1.25 x 25mm saucer head $3.21 2 usually ships 7-19 days
4 273-6006 Bracket $25.63 1 usually ships 1-5 days
7 183-0075 Screw 5-16 x 10.9mm $0.99 11 ships same day
11 273-6010 Rear skirt $69.30 1 usually ships 7-19 days
12 173-5382 Handle clamp $5.45 1 usually ships 1-5 days
13 273-6012 Bracket $25.63 1 usually ships 1-5 days
17 273-6016 Washer $1.94 4 (version 1 x2) (version 2 x4) usually ships 1-5 days
18 373-4505 Castor $12.73 1 usually ships 7-19 days
22 273-6019 Wiring protection sleeve $3.63 1 usually ships 1-5 days
24 173-6323 Switch $77.55 1 usually ships 7-19 days
25a 273-9368 Knob w/ spring clip $7.54 1 (includes 25b) ships same day
25b 273-9368 Knob w/ spring clip $7.54 1 ships same day
27 273-6023 Battery covering cap $31.90 1 usually ships 7-19 days
28 273-6024 Filter cartridge $46.86 2 usually ships 7-19 days
29 273-6025 Control panel foil $78.10 1 usually ships 1-5 days
30 273-6026 Grooved bolt $25.63 2 usually ships 1-5 days
31 273-7031 Lock washer $1.88 2 usually ships 7-19 days
32 273-6028 Skirt $32.78 1 usually ships 7-19 days
33 173-5378 Skirt holder $39.93 1 usually ships 1-5 days
35 273-6030 Battery cover $59.95 1 usually ships 7-19 days
36 273-0977 Screw M5-10.9 x 30mm $3.39 6 usually ships 7-19 days
37 273-6031 Nut M10-8 hex $2.78 1 (version 1) usually ships 7-19 days
40 273-6033 Screw M10 x 80mm saucer head $5.83 1 usually ships 1-5 days
41a 373-4506 Sweep tank replacement $460.90 1 usually ships 7-19 days
41b 373-4513 Sweep tank unmachined part $72.52 1 usually ships 7-19 days
42 373-4507 Battery charger socket $10.09 1 usually ships 7-19 days
43 273-6036 Cover with hinge $163.90 1 usually ships 1-5 days
44 273-6038 Filter shaker tube $31.02 1 ships same day
47 273-6039 Joint ring $1.03 6 usually ships 1-5 days
48 173-9087 Circuit board LED $59.40 1 usually ships 1-5 days
49 373-4508 Battery monitoring $154.50 1 usually ships 7-19 days
50 373-4509 Frame $191.05 1 usually ships 7-19 days
51 373-4510 Filter box $78.10 1 usually ships 7-19 days
52 173-6326 Dust protector $20.35 1 usually ships 1-5 days
53 173-6327 Seal $5.50 1 usually ships 1-5 days
54 173-6328 Cover $12.27 1 usually ships 1-5 days
55 173-4378 Screw $0.99 2 usually ships 7-19 days
56 173-6329 Fuse holder $23.54 1 usually ships 1-5 days
57 173-6330 Fuse $11.44 1 usually ships 7-19 days
58 273-6021 Dust protection switch kit $195.80 1 (includes 52-55) usually ships 7-19 days
59 173-6338 Cable assembly $23.43 1 usually ships 1-5 days
60 273-6089 Screw 6-10.9 x 20mm $1.94 16 usually ships 7-19 days
61 373-4511 Sealing profile $14.08 usually ships 7-19 days
90 999-6697 Nut M10-1.5 hex stainless steel $1.01 1 (version 2) ships same day
91 183-0341 Hex nut $1.63 2 usually ships 1-5 days
92 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
93 373-4502 Right hand support plate Call for price 1 usually ships 7-19 days
94 373-4503 Sleeve Call for price 1 usually ships 7-19 days
95 173-6208 Ball bearing $22.55 2 usually ships 1-5 days
96 999-6699 Screw M8-1.25 x 25mm flat socket head stainless steel $1.47 1 usually ships 11-24 days
97 373-4512 Sleeve $1.69 1 usually ships 7-19 days
98 373-4504 Left hand support plate Call for price 1 usually ships 7-19 days
99 273-9287 Screw M8 x 40-8.8 $2.49 1 usually ships 7-19 days
