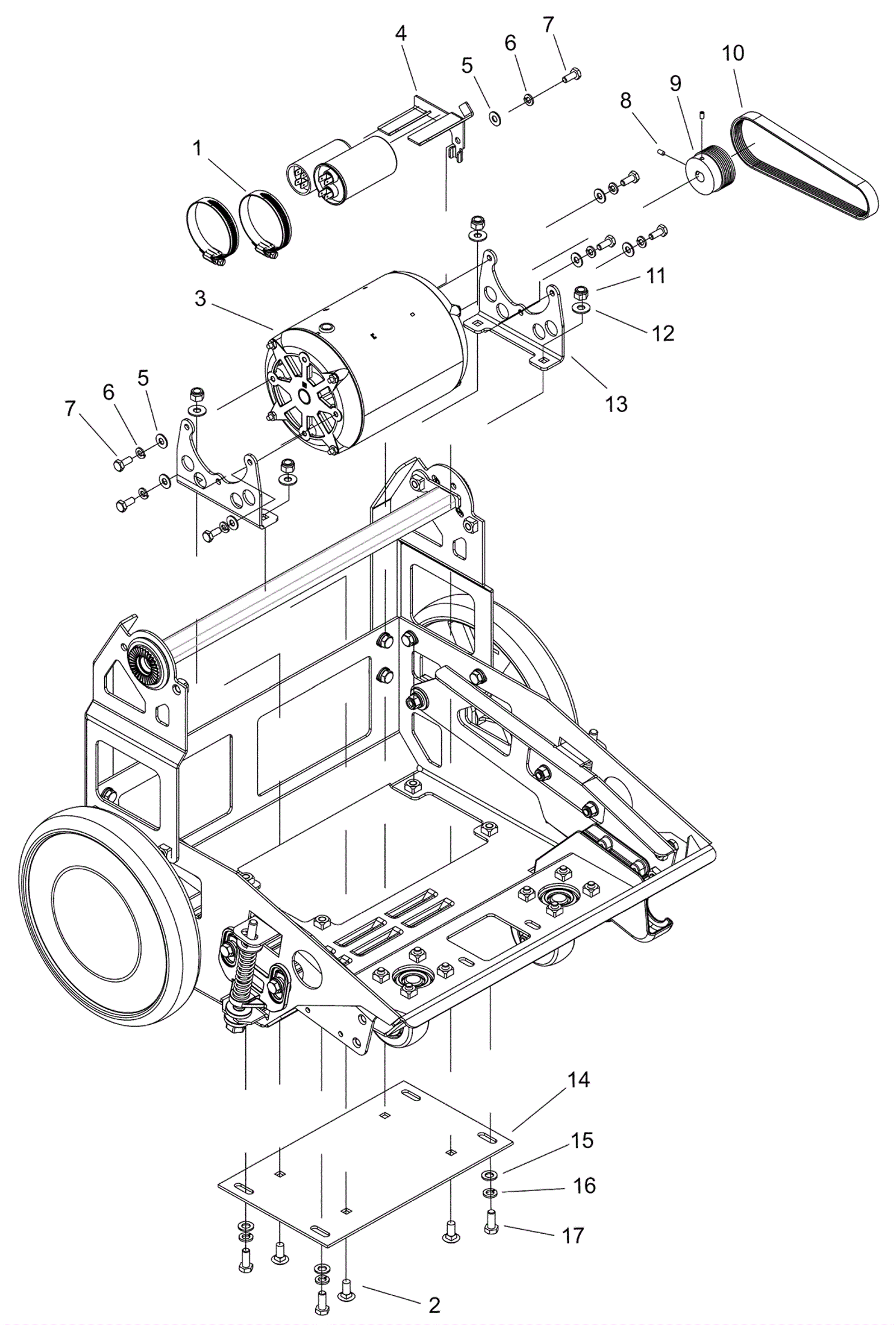

CV 66/2 Brush Motor Assembly-Model 1.012-533.0

#PartDescriptionPriceReqNotesAvailability
1 273-5615 Worm gear clamp $18.26 2 usually ships 14-22 days
2 273-6296 Screw 5/16-18 x 3/4 carriage $3.10 4 usually ships 1-5 days
3a 273-6309 115V brush motor $696.30 1 (115V) (includes 3c-3d) usually ships 14-22 days
3b 373-4531 230V brush motor $772.20 1 (230V) (includes 3e-3f) usually ships 14-22 days
3c 273-5616 25uF capacitor run $67.65 1 (25UF) usually ships 14-22 days
3d 273-5617 150uF capacitor start $62.27 1 (150UF) usually ships 14-22 days
3e 273-4418 6 uf run capacitor $64.90 1 (6UF) usually ships 14-22 days
3f 273-4419 50 uf start capacitor $59.40 1 (50UF) usually ships 14-22 days
4 273-6310 Motor mounting capacitor bracket $5.50 1 usually ships 1-5 days
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 7 ships same day
6 999-0632 Washer 1/4 split lock stainless steel $0.99 7 ships same day
7 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 7 ships same day
8 273-5518 Screw M4-.7 x 8mm set cup point $1.43 2 ships same day
9 273-6312 Pulley $133.10 1 usually ships 1-5 days
10 273-6313 Belt $80.31 1 usually ships 14-22 days
11 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
13 273-6314 Motor mounting bracket $6.66 2 usually ships 1-5 days
14 273-6311 Motor base plate $16.50 1 usually ships 1-5 days
15 999-1267 Washer M8 flat zinc $0.99 4 ships same day
16 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
17 173-9344 Screw M8 x 20 hex $3.04 4 usually ships 1-5 days
