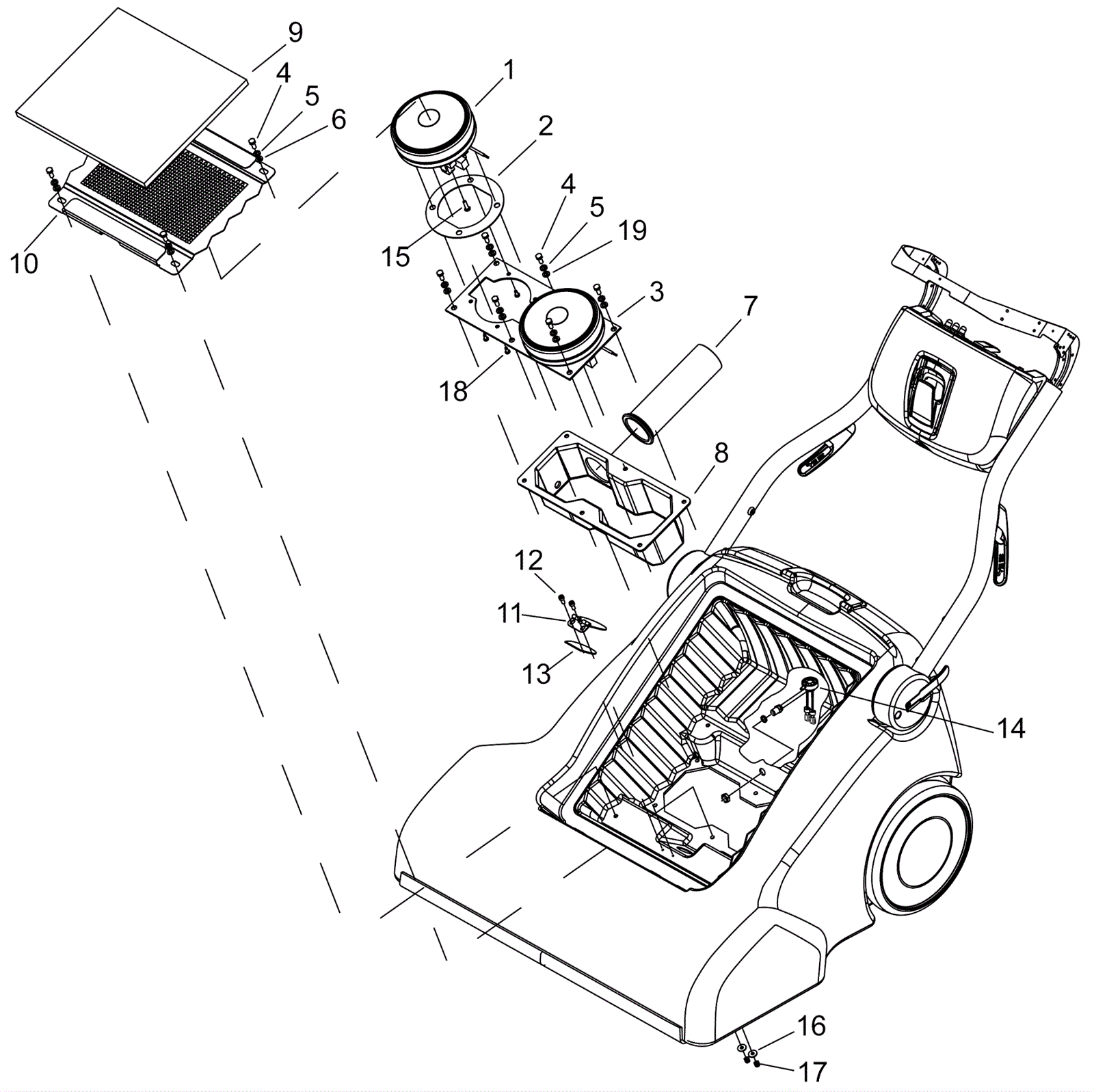

CV 66/2 Vacuum Assembly-Model 1.012-533.0

#PartDescriptionPriceReqNotesAvailability
1a 273-6381 120V vacuum motor $256.82 2 (120V) usually ships 14-22 days
1b 373-4532 230V vacuum motor $333.30 2 (230V) usually ships 14-22 days
2 273-6382 Gasket $43.78 2 usually ships 14-22 days
3 273-6383 Vacuum motor mounting plate $46.20 1 usually ships 1-5 days
4 273-6346 Screw M6 x 16mm hex head $2.42 10 usually ships 14-22 days
5 273-5506 Washer 6mm spring lock (OBSOLETE) $1.52 10 usually ships 14-22 days
6 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
7 273-6384 Exhaust tube $34.10 1 usually ships 1-5 days
8 273-6385 Vacuum motor housing $69.81 1 usually ships 1-5 days
9 273-6109 Vacuum chamber filter $58.85 1 usually ships 14-22 days
10 273-6387 Screen $143.00 1 usually ships 1-5 days
11 189-4204 Accessory port cover $117.73 1 usually ships 14-27 days
12 273-6291 Screw M5-.8 x 15mm socket head (black) $1.69 2 usually ships 1-5 days
13 189-4141 Accessory port gasket $8.47 1 ships same day
14 273-4429 Vacuum switch $149.62 1 usually ships 14-22 days
15 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.00 2 ships same day
16 273-5591 Washer M5 flat stainless steel $1.82 2 usually ships 14-22 days
17 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
18 173-5491 Screw M4.8 x 16mm phillips thread forming $1.88 8 usually ships 1-5 days
19 173-4743 Washer M6 pleated $2.97 6 usually ships 1-5 days
