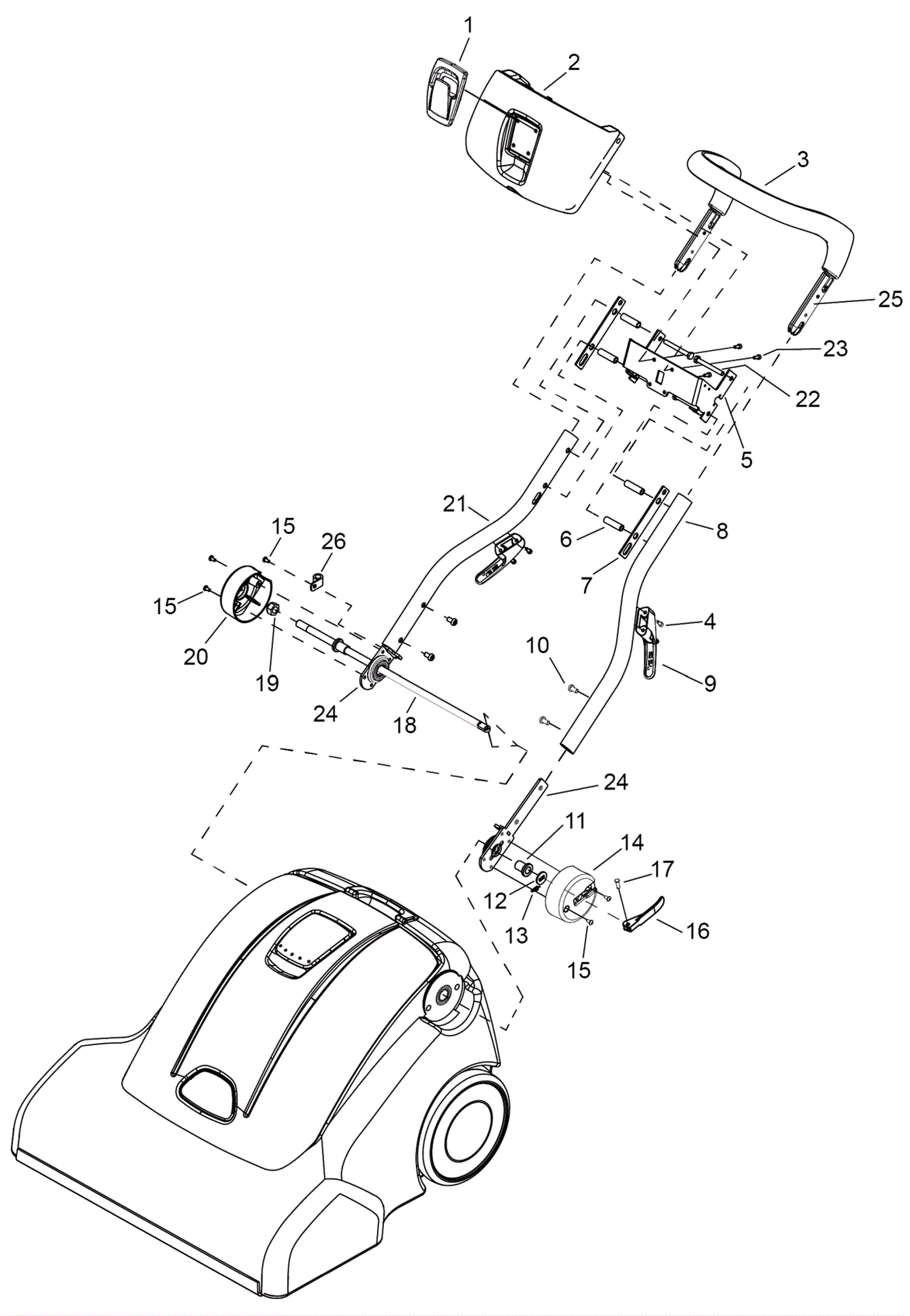

CV 66/2 Handhold Assembly-Model 1.012-533.0

#PartDescriptionPriceReqNotesAvailability
1 273-6357 Cord hook $11.33 1 usually ships 1-5 days
2 273-4425 Handle console (black) $84.70 1 usually ships 14-22 days
3 273-6359 Handle grip $368.50 1 usually ships 1-5 days
4 273-5651 Screw M5-.8 x 12mm socket head cap $1.69 4 usually ships 1-5 days
5 273-5676 Lever console bracket $77.55 1 usually ships 1-5 days
6 273-5687 Spacer $5.35 4 usually ships 1-5 days
7 273-5678 Console tube gasket $6.00 2 usually ships 1-5 days
8 273-6360 Left handle weldment $119.90 1 usually ships 1-5 days
9 273-5653 Lower cord hook $34.98 2 usually ships 14-22 days
10 273-6361 Screw M8-1.25 x 15mm button head $0.99 4 usually ships 1-5 days
11 273-6405 Bushing $17.82 2 usually ships 1-5 days
12 273-6363 Cam lever washer $2.97 1 usually ships 1-5 days
13 173-1130 Cotter ring $2.42 1 ships same day
14 273-4426 Left hand end cap (yellow) $27.39 1 usually ships 14-22 days
15 273-6365 Screw M5-.8 x 10mm pan head phillips stainless steel $2.97 5 usually ships 14-22 days
16 273-6366 Lever $39.93 1 usually ships 1-5 days
17 273-6367 Cotter pin $6.93 1 usually ships 1-5 days
18 273-6368 Pivot axle $20.90 1 usually ships 1-5 days
19 999-1546 Nut M14-2 nylon insert lock $8.26 1 usually ships 1-5 days
20 273-6370 Right end cap $102.30 1 usually ships 1-5 days
21 273-6371 Right handle weldment $28.93 1 usually ships 1-5 days
22 999-9078 Screw M8 x 70mm hex head $1.27 4 usually ships 1-5 days
23 273-6291 Screw M5-.8 x 15mm socket head (black) $1.69 4 usually ships 1-5 days
24 273-6372 Handle weldment $21.45 2 usually ships 1-5 days
25 273-5647 Handle extrusion spacer $21.12 4 usually ships 14-22 days
26 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 1 usually ships 14-22 days
