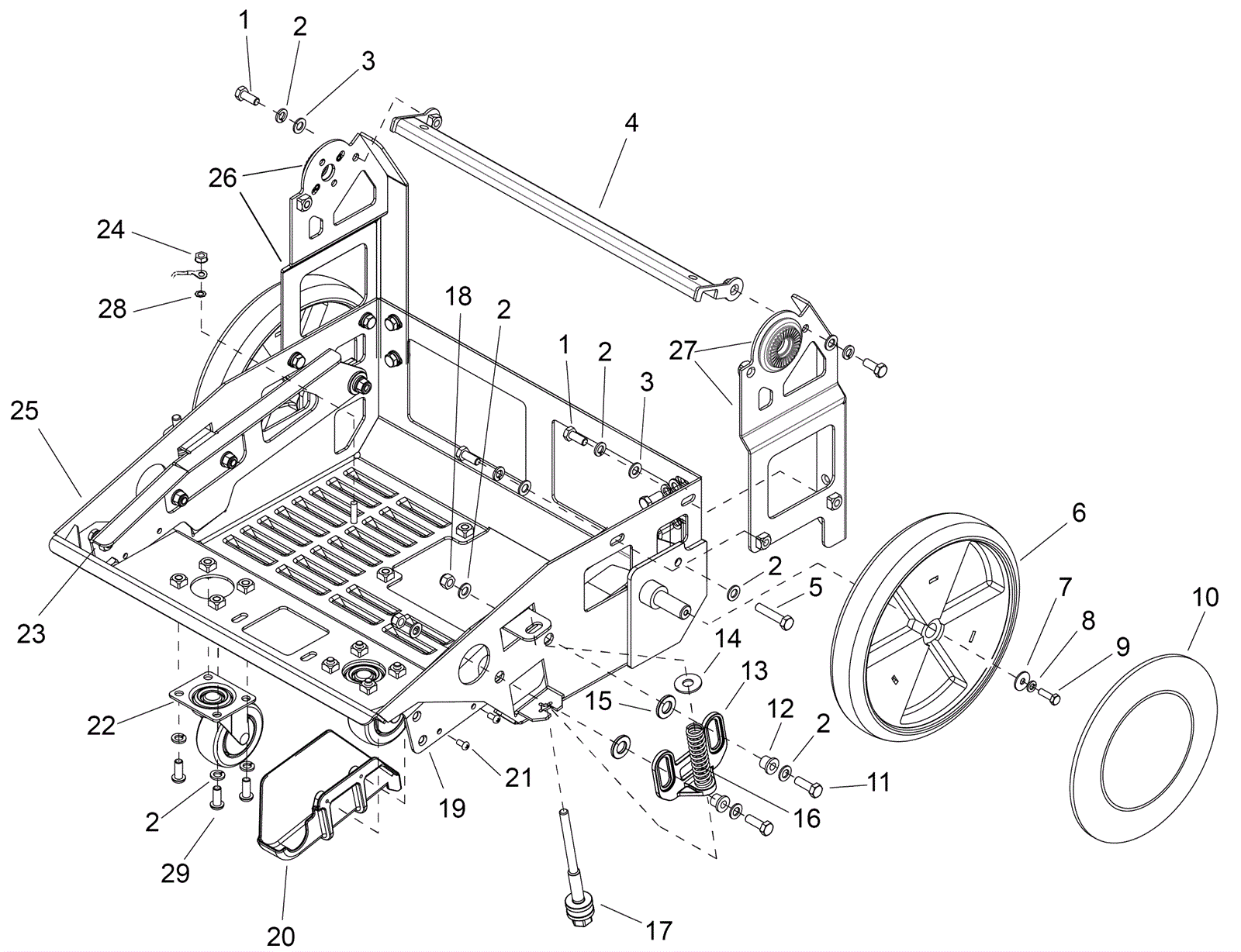

# | Part | Description | Price | Req | Notes | Availability |
1 |
173-9344
|
Screw M8 x 20 hex |
$3.04
|
10 |
|
usually ships 1-5 days |
2 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
18 |
|
ships same day |
3 |
999-1267
|
Washer M8 flat zinc |
$0.99
|
22 |
|
ships same day |
4 |
273-6344
|
Handle brace weldment |
$15.84
|
1 |
|
usually ships 1-5 days |
5 |
273-6345
|
Screw M8 x 40mm hex head |
$4.84
|
2 |
|
usually ships 1-5 days |
6 |
273-4000
|
10 inch gray wheel |
$132.02
|
2 |
|
ships same day |
7 |
173-4743
|
Washer M6 pleated |
$2.97
|
2 |
|
usually ships 1-5 days |
8 |
273-5506
|
Washer 6mm spring lock (OBSOLETE) |
$1.52
|
2 |
|
usually ships 14-22 days |
9 |
273-6346
|
Screw M6 x 16mm hex head |
$2.42
|
2 |
|
usually ships 14-22 days |
10 |
273-3529
|
Hubcap (black) |
$13.42
|
2 |
|
usually ships 14-22 days |
11 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$3.96
|
4 |
|
ships same day |
12 |
173-3116
|
Flanged bearing |
$8.47
|
6 |
|
usually ships 14-22 days |
13 |
273-6348
|
Spring adjustment bracket |
$29.48
|
2 |
|
usually ships 14-22 days |
14 |
173-2548
|
Washer M10 x 30mm plated |
$3.70
|
2 |
|
usually ships 14-22 days |
15 |
173-3963
|
Washer 1/2 thrust |
$7.32
|
8 |
|
usually ships 14-22 days |
16 |
273-6349
|
Spring |
$9.35
|
2 |
|
usually ships 14-22 days |
17 |
273-6350
|
Deck adjustment spring screw |
$9.52
|
2 |
|
usually ships 14-22 days |
18 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
$0.99
|
6 |
|
ships same day |
19 |
273-6351
|
Left deck linkage bracket |
$57.31
|
1 |
|
usually ships 1-5 days |
20 |
273-6352
|
Belt guard |
$98.45
|
1 |
|
usually ships 14-22 days |
21 |
273-5604
|
Screw |
$0.99
|
2 |
|
ships same day |
22 |
273-6353
|
Swivel caster wheel |
$64.90
|
2 |
|
ships same day |
23 |
273-6354
|
Right deck linkage bracket |
$22.99
|
1 |
|
usually ships 1-5 days |
24 |
173-2472
|
Nut 10-32 with star washer |
$0.99
|
1 |
|
usually ships 1-5 days |
25 |
273-6355
|
Frame weldment |
$480.70
|
1 |
|
usually ships 1-5 days |
26 |
273-6347
|
Right handle bracket weldment |
$74.40
|
1 |
|
usually ships 1-5 days |
27 |
273-6356
|
Left handle bracket weldment (OBSOLETE) |
$74.40
|
1 |
|
usually ships 14-22 days |
28 |
999-0311
|
Washer #10 external star lock zinc plated |
$0.99
|
1 |
|
ships same day |
29 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
$2.79
|
8 |
|
ships same day |
