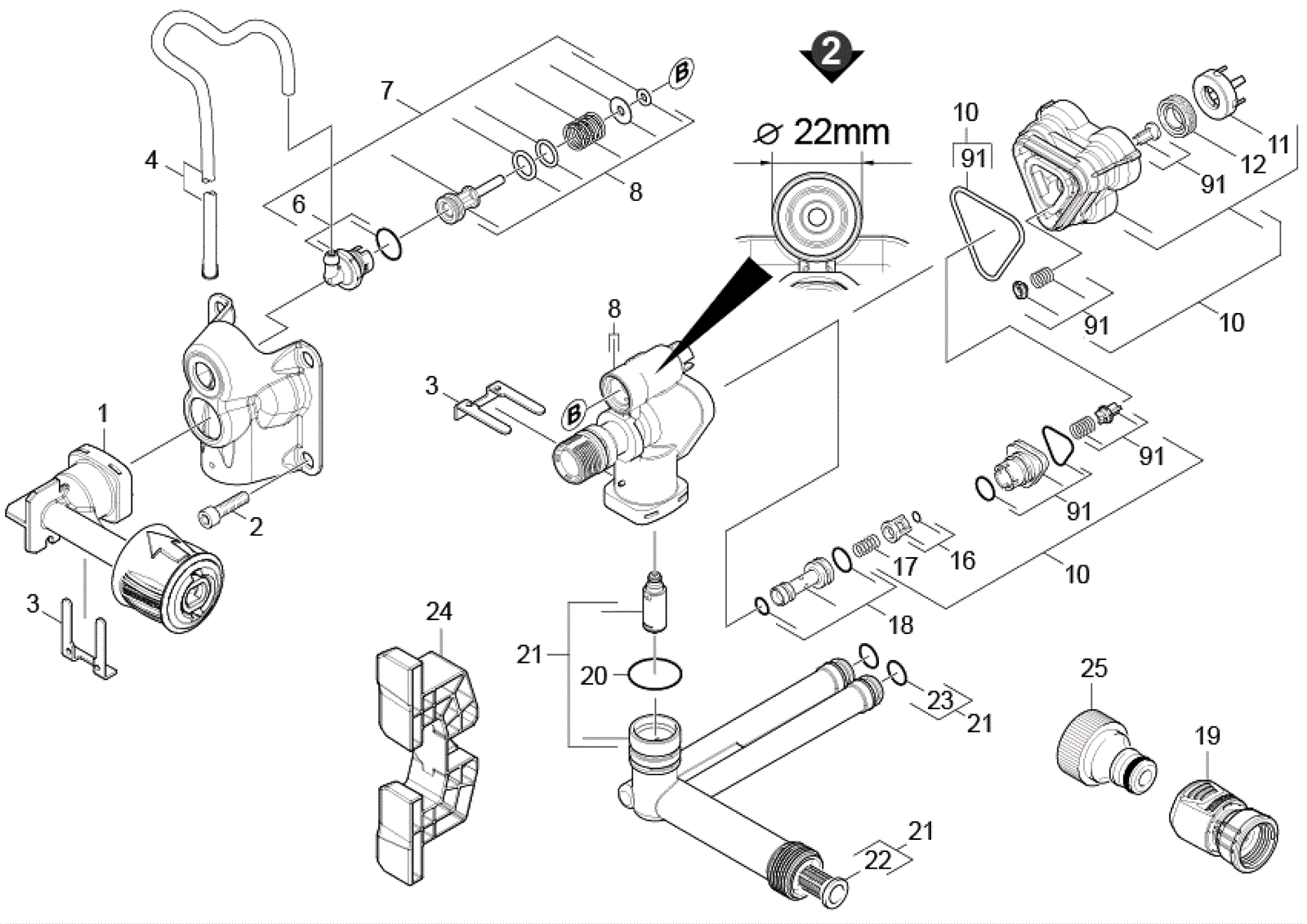

K3.540 Pump Housing Assembly-22mm-Model 5.971-294.0

#PartDescriptionPriceReqNotesAvailability
1 273-9675 High-pressure outlet $21.37 1 usually ships 14-22 days
2 183-0340 Screw $3.89 4 usually ships 1-5 days
3 173-7653 Metal fork $2.15 2 usually ships 14-22 days
4 273-9698 Filter cleaning agents $8.31 1 usually ships 14-22 days
6a 373-4478 Control housing $61.20 1 usually ships 14-22 days
6b 373-4481 Nipple complete replacement $3.54 1 usually ships 14-22 days
7a 373-4482 Pressure piston $42.72 1 (includes 6, 8) usually ships 14-22 days
7b 373-4483 Control piston nipple complete replacement $10.42 1 (includes 6, 8) usually ships 14-22 days
8a 373-4484 Pressure piston manifold $56.62 1 usually ships 14-22 days
8b 373-4485 Manifold complete replacement $15.18 1 usually ships 14-22 days
10a 273-9599 Spare parts set cylinder head $41.57 1 (includes 11-12, 16-17, 91) usually ships 14-22 days
10b 373-4470 Head complete $53.91 1 (includes 11-12, 16-17, 91) usually ships 14-22 days
11a 373-4462 Support ring $1.34 3 usually ships 14-22 days
11b 373-4471 Water sealing spacer $7.89 3 usually ships 14-22 days
12 273-3272 Grooved ring $4.74 3 usually ships 14-22 days
16 373-4474 Back flow valve $6.59 1 usually ships 14-22 days
17 373-4467 Back flow valve spring set Call for price 1 usually ships 14-22 days
18a 373-4486 Venturi nozzle $52.61 1 usually ships 14-22 days
18b 373-4487 Venturi nozzle replacement $2.33 1 usually ships 14-22 days
19 273-9421 Coupler with decal $10.68 1 usually ships 14-22 days
20 273-9419 O-ring seal $5.50 1 usually ships 14-22 days
21a 373-4480 Suction connection complete replacement $47.91 1 (includes 20, 22-23) usually ships 14-22 days
21b 373-4476 Suction connection complete $6.71 1 (includes 20, 22-23) usually ships 14-22 days
22 273-9420 Fine filter $24.84 1 usually ships 14-22 days
23 373-4477 O-ring seal $4.87 2 usually ships 14-22 days
24 273-9676 Bracket pump (bridge) $4.39 1 usually ships 14-22 days
25 273-8517 Connection $11.65 1 usually ships 14-22 days
91 373-4479 Valves set Call for price 1 usually ships 14-22 days
