K3.540

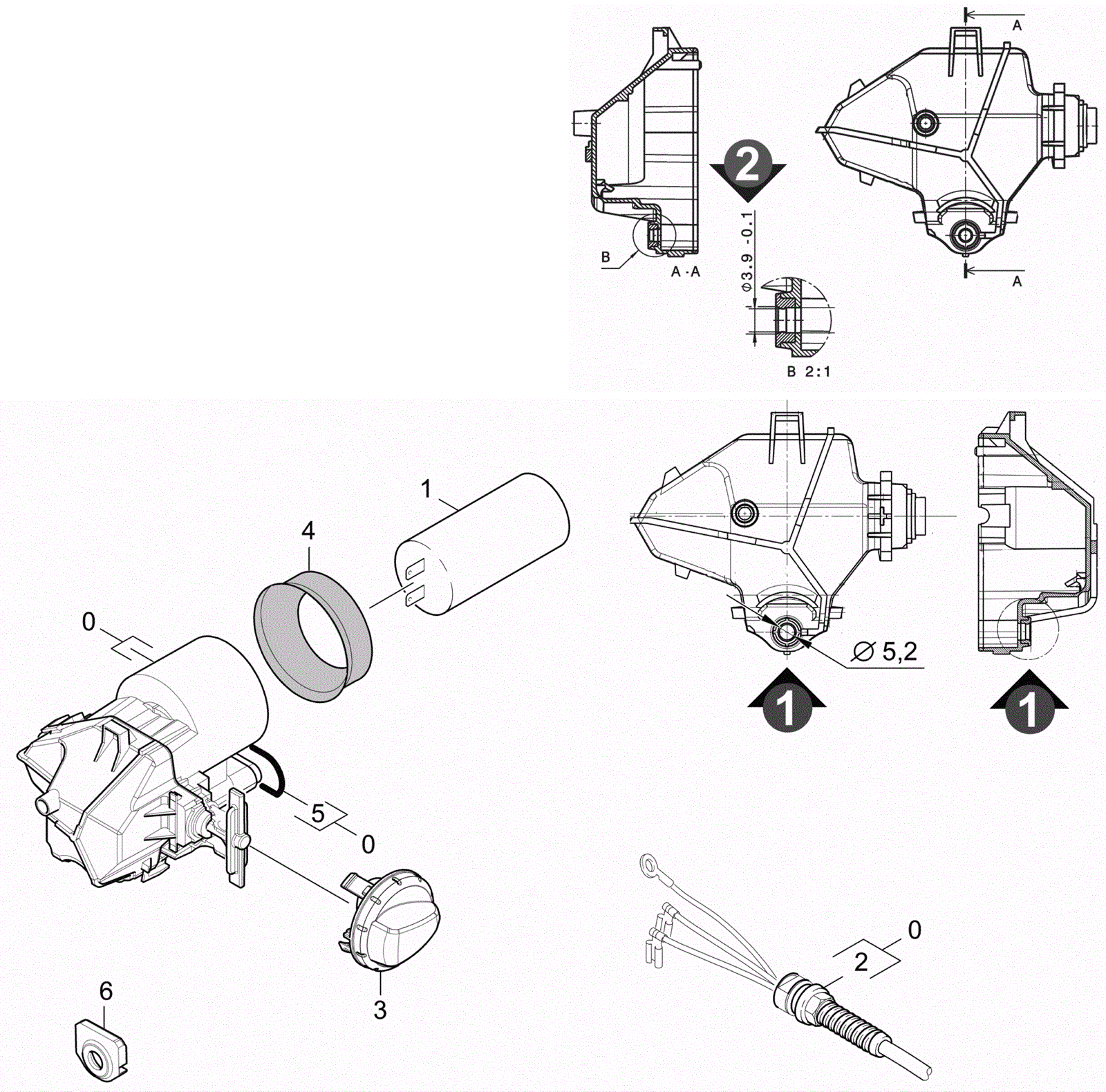

Electric Box Assembly-Model 5.971-294.0
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
0a
273-9612
Electric box
$140.99
1
(includes 2, 5)
usually ships 7-19 days
0b
373-4501
Electric box replacement
$237.00
1
(includes 2, 5)
usually ships 7-19 days
1
273-3324
Capacitor
$31.31
1
usually ships 7-19 days
2
173-7691
Cable with plug
$120.95
1
usually ships 7-19 days
3
273-9614
Handhold switch
$1.98
1
usually ships 7-19 days
4
173-7692
Capacitor joint ring
$4.30
1
usually ships 7-19 days
5
173-7693
O ring
$1.38
1
usually ships 7-19 days
6
273-9601
Spacer electric box WCM
$1.65
1
usually ships 7-19 days
