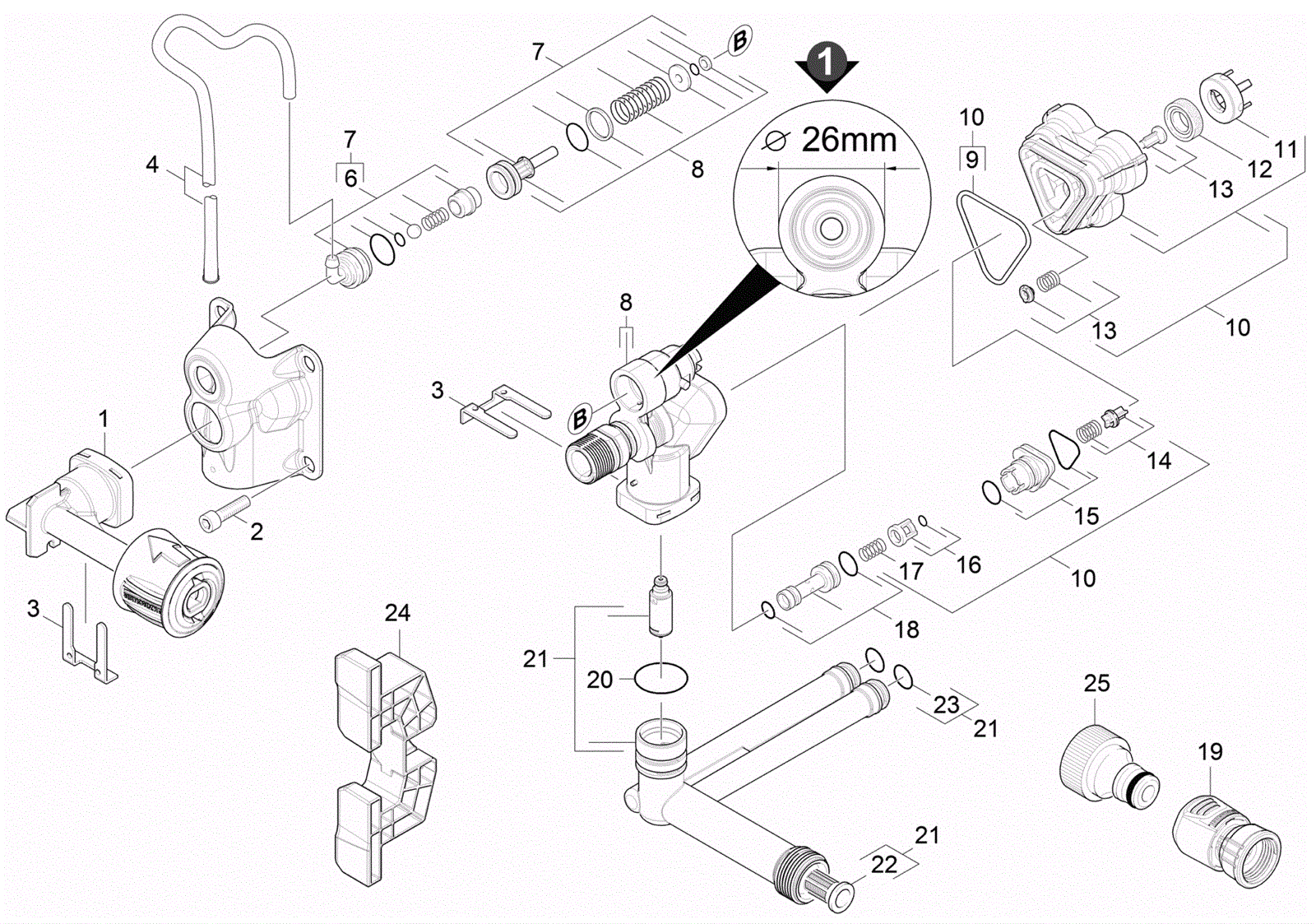

K3.540 Pump Housing Assembly-26mm-Model 5.971-294.0

#PartDescriptionPriceReqNotesAvailability
1 273-9675 High-pressure outlet $19.43 1 usually ships 7-19 days
2 183-0340 Screw $3.54 4 usually ships 1-5 days
3 173-7653 Metal fork $2.15 2 usually ships 7-19 days
4 273-9698 Filter cleaning agents $7.55 1 usually ships 7-19 days
6 173-7656 Cleaning agents aspiration $7.55 1 usually ships 7-19 days
7 373-4469 Piston and detergent fitting $104.00 1 (includes 6,8) usually ships 7-19 days
8a 373-4465 Housing conversion kit $121.00 1 (includes 8b) usually ships 7-19 days
8b 373-4468 Rubber ring Call for price 1 usually ships 7-19 days
9 173-7659 Foam seal $1.28 1 usually ships 7-19 days
10a 273-9599 Spare parts set cylinder head $37.79 1 (includes 9, 11-17) usually ships 7-19 days
10b 373-4470 Head complete $45.80 1 (includes 9, 11-17) usually ships 7-19 days
11a 373-4462 Support ring $1.05 3 usually ships 7-19 days
11b 373-4471 Water sealing spacer $6.70 3 usually ships 7-19 days
12 273-3272 Grooved ring $4.31 3 usually ships 7-19 days
13 373-4472 Inlet valve spring with washer $8.00 1 (set consists of 3 valves) usually ships 7-19 days
14 373-4473 Outlet valve with spring $6.80 1 (set consists of 3 valves) usually ships 7-19 days
15 373-4466 Connecting bushing set Call for price 1 usually ships 7-19 days
16 373-4474 Back flow valve $5.60 1 usually ships 7-19 days
17 373-4467 Back flow valve spring set Call for price 1 usually ships 7-19 days
18 373-4475 Venturi nozzle $5.90 1 usually ships 7-19 days
19 273-9421 Coupler with decal $9.71 1 usually ships 7-19 days
20 273-9419 O-ring seal $4.73 1 usually ships 7-19 days
21 373-4476 Suction connection complete $6.10 1 (includes 20, 22-23) usually ships 7-19 days
22 273-9420 Fine filter $21.10 1 usually ships 7-19 days
23 373-4477 O-ring seal $3.80 2 usually ships 7-19 days
24 273-9676 Bracket pump (bridge) $3.99 1 usually ships 7-19 days
25 273-8517 Connection $9.90 1 usually ships 7-19 days
