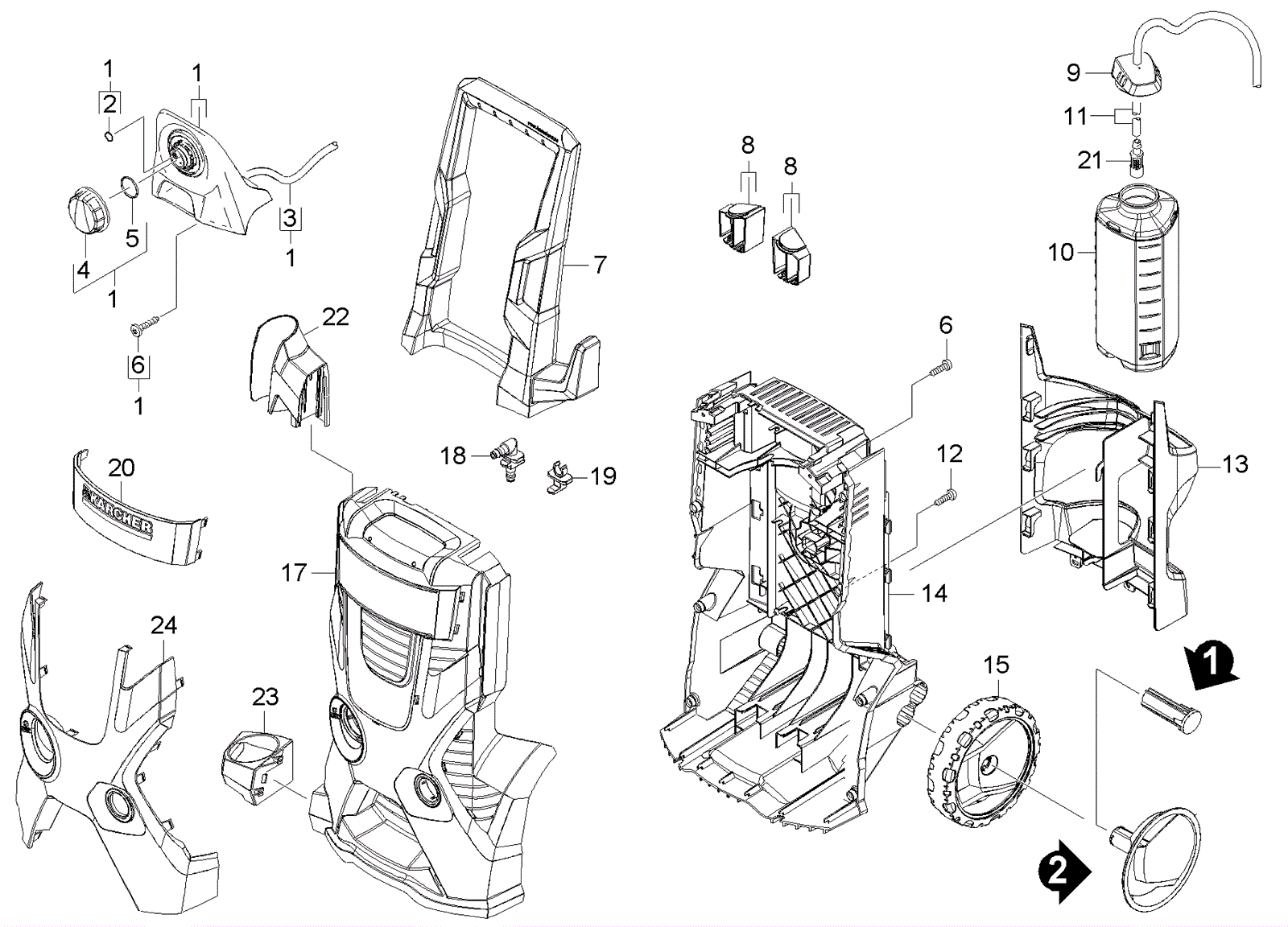

K3.540 Main Housing Assembly-Model 5.971-294.0

#PartDescriptionPriceReqNotesAvailability
1 373-4453 Hose hook spare parts set $47.63 1 (includes 2-6) usually ships 14-22 days
2 373-4457 O-ring $0.99 1 usually ships 14-22 days
3 273-9564 Hose DN 5 $13.64 1m (to order as cut goods) usually ships 14-22 days
4 273-9565 Handhold chemistry $2.35 1 usually ships 14-22 days
5 173-2924 O-ring $3.30 1 usually ships 14-22 days
6 273-9566 Screw 4x22 $2.35 6 usually ships 14-22 days
7a 373-4458 Compact handle $15.27 1 usually ships 14-22 days
8 373-4459 Covering cap set $5.50 1 usually ships 14-22 days
9 273-9672 Fuel tank filler cap $3.55 1 usually ships 14-22 days
10 273-9572 Tank WCM $10.68 1 usually ships 14-22 days
11 173-6219 Hose (sold by the foot) $6.60 1m (to order as cut goods) usually ships 10-11 days
12 173-7643 Screw 4.1 x 22mm ATF $0.99 10 usually ships 14-22 days
13 273-9573 Accessory holder $17.59 1 usually ships 14-22 days
14a 273-9574 Rear housing mod $29.70 1 usually ships 14-22 days
14b 373-4455 Rear housing replacement Call for price 1 usually ships 14-22 days
15a 273-9673 Wheel replacement set $29.32 2 usually ships 14-22 days
15b 273-9575 Replacement wheel set $38.01 1 (set of 2 pieces) usually ships 14-22 days
17a 373-4454 Cover Call for price 1 usually ships 14-22 days
17b 373-4456 Cover replacement (black) Call for price 1 usually ships 14-22 days
18 273-9569 90 degree nipple $2.18 1 usually ships 14-22 days
19 273-9570 Clamping bolt $2.18 1 usually ships 14-22 days
20 273-9580 Complete covering cap (silver) $19.79 1 usually ships 14-22 days
21 252-2016 Filter with weight $30.69 1 usually ships 10-11 days
22 273-9567 Holder pistol above $3.55 1 usually ships 14-22 days
23 273-9581 Holder pistol bottom $3.55 1 usually ships 14-22 days
24a 273-9583 Cover (black) $17.59 1 usually ships 14-22 days
24b 273-9582 Cover (yellow) $24.42 1 usually ships 14-22 days
N/S 273-9577 Catch for cable $3.55 1 usually ships 14-22 days
N/S 273-9576 Replacement screen $20.19 1 (set of 2 pieces) usually ships 14-22 days
N/S 373-4460 Foam cover replacement $7.51 1 usually ships 14-22 days
