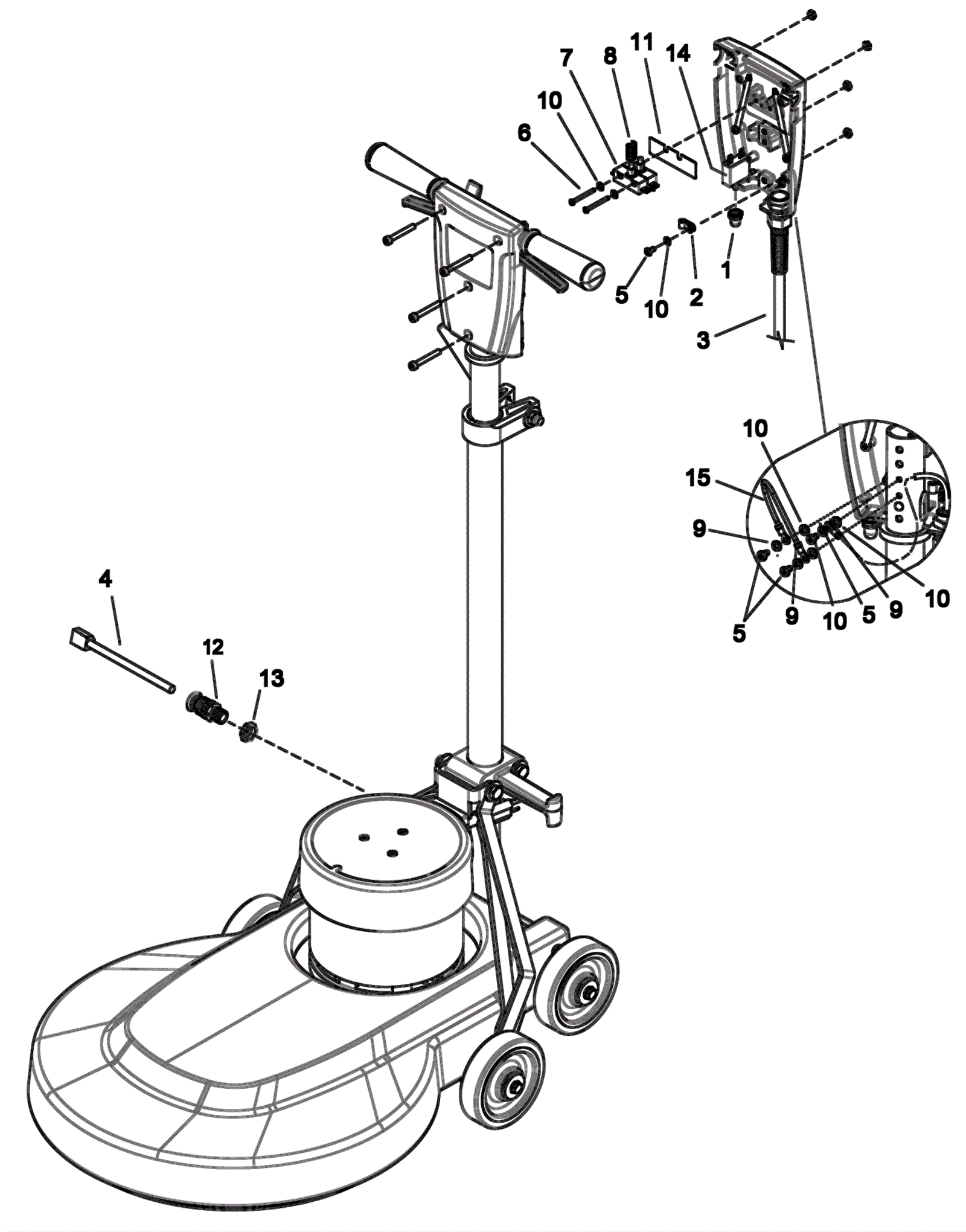

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-0312
|
3/8 inch circuit breaker boot |
1 |
|
|
2 |
173-1800
|
5/16 nylon clamp (OBSOLETE) |
1 |
|
|
3 |
273-5005
|
14/75 cord set (yellow) |
1 |
|
|
4 |
173-2835
|
Interconnect cord (OBSOLETE) |
1 |
|
|
5 |
173-4697
|
Screw M4-.8 x 10mm hex head thread forming |
4 |
|
|
6 |
173-4704
|
Screw M3-.5 x 40mm pan head thread forming |
2 |
|
|
7 |
173-6460
|
25amp switch SPDT service kit |
2 |
|
|
8 |
173-0923
|
Spring (OBSOLETE) |
1 |
|
|
9 |
173-4705
|
Washer M4 shakeproof |
3 |
|
|
10 |
173-4706
|
Washer M5 shakeproof |
6 |
|
|
11 |
173-4765
|
Barrier sheet |
1 |
|
|
12 |
173-2845
|
Strain relief |
1 |
|
|
13 |
173-2846
|
Spacer |
1 |
|
|
14 |
173-7427
|
14amp circuit breaker |
1 |
|
|
15 |
999-9100
|
Washer M5 flat stainless steel |
1 |
|
|
16 |
173-9862
|
Wire |
1 |
|
|
