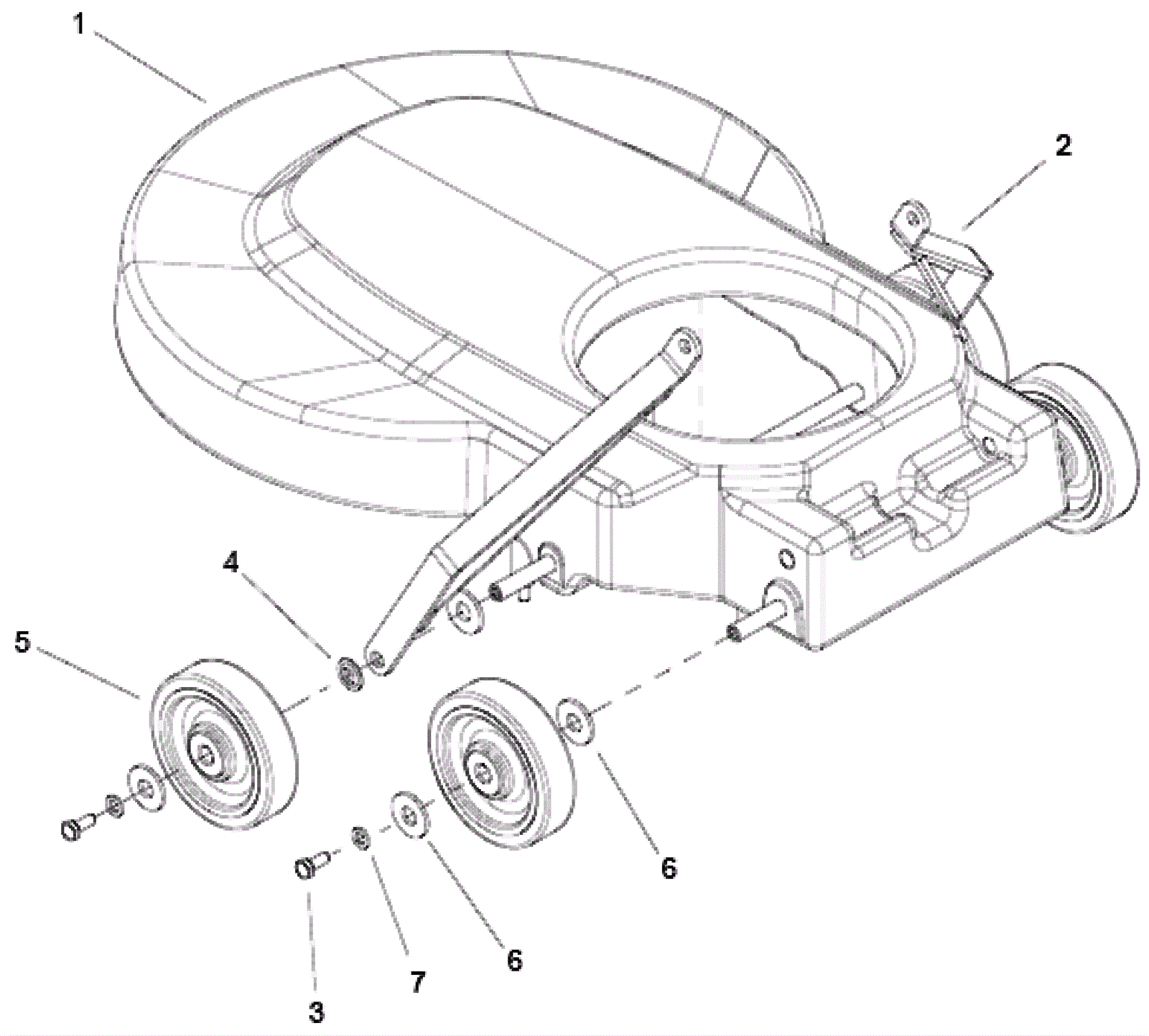

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-1300
|
Chassis |
1 |
|
|
2 |
173-4759
|
Handle link bracket |
2 |
|
|
3 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
|
4 |
173-2834
|
Nut 1/2 flat push |
2 |
|
|
5 |
173-4664
|
Wheel (gray) |
4 |
|
|
6 |
999-0972
|
Washer M14 flat |
6 |
|
|
7 |
999-1267
|
Washer M8 flat zinc |
8 |
|
|
