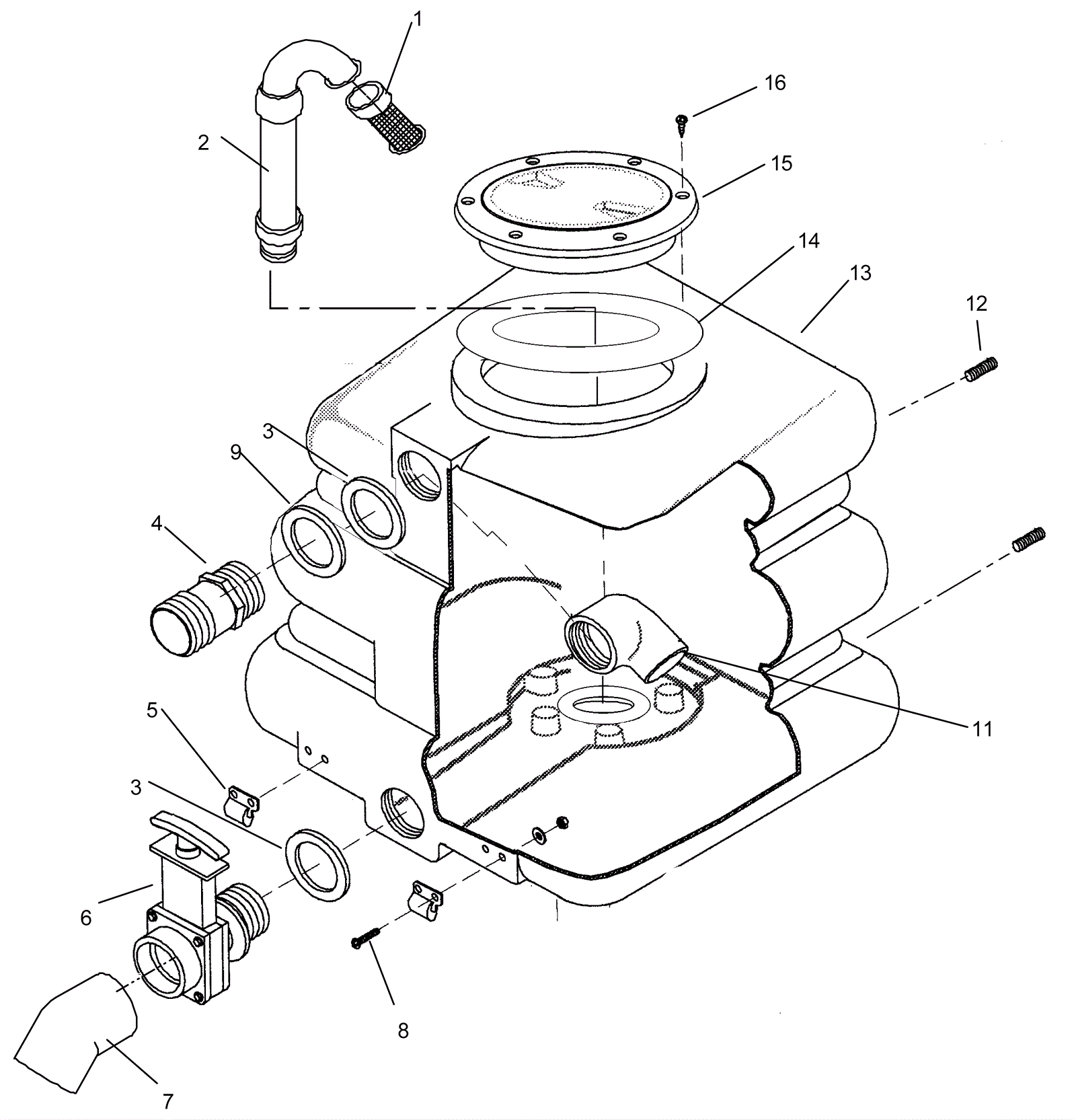

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-5336
|
Float cage assembly |
1 |
|
|
2 |
273-7704
|
Vacuum stack (OBSOLETE) |
1 |
|
|
3 |
173-8653
|
Dump valve gasket |
2 |
|
|
4 |
173-8660
|
Hosebarb 1.5 X 1.5 |
1 |
|
|
5 |
273-8923
|
Latch |
2 |
|
|
6 |
173-8651
|
Dump valve |
1 |
|
|
7 |
273-4093
|
Elbow |
1 |
|
|
8 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
4 |
|
|
9 |
173-8666
|
Hosebarb washer |
1 |
|
|
11 |
173-7181
|
Elbow 1-1/2 |
1 |
|
|
12 |
173-3516
|
Screw 5/16-18 x 1 1/2 set |
4 |
|
|
13 |
273-3660
|
Recovery tank |
1 |
|
|
14 |
173-8585
|
Tank lid gasket |
1 |
|
|
15 |
173-8584
|
Tank lid (OBSOLETE) |
1 |
|
|
16 |
999-1141
|
Screw 8 x 3/4 pan head phillips zinc plated |
6 |
|
|
