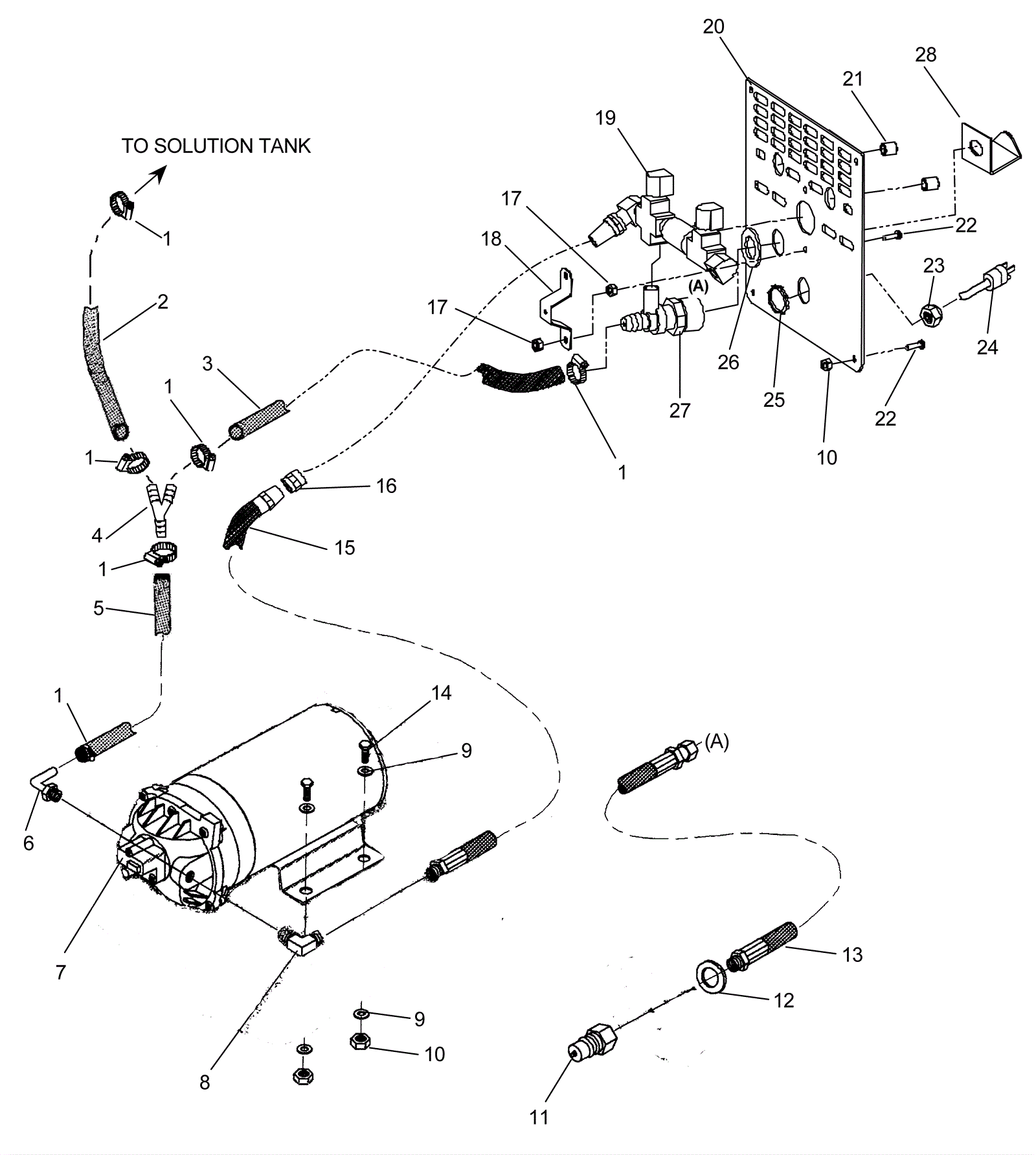

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-1821
|
Hose clamp |
6 |
|
|
2 |
173-7034
|
Rubber hose 3/8 x 17' |
1 |
|
|
3 |
173-2714
|
Hose 3/8 rubber x 5 |
1 |
|
|
4 |
173-7119
|
Nylon hosebarb inchY inch fitting 3/8 |
1 |
|
|
5 |
273-8933
|
Rubber hose |
1 |
|
|
6 |
173-1572
|
Hosebarb 3/8 x 3/8 inch |
1 |
|
|
7 |
273-4095
|
Pump (OBSOLETE) |
1 |
|
|
8 |
273-8942
|
Elbow |
1 |
|
|
9 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
10 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
6 |
|
|
11 |
991-8150
|
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
|
12 |
273-8935
|
Thick Washer |
1 |
|
|
13 |
273-8936
|
Hose |
1 |
|
|
14 |
273-7664
|
Screw 10-32 x 1 1/8 pan head phillips stainless steel |
2 |
|
|
15 |
273-8936
|
Hose |
1 |
|
|
16 |
173-0934
|
Coupler 1/4 hex |
1 |
|
|
17 |
173-2472
|
Nut 10-32 with star washer |
4 |
|
|
18 |
173-3048
|
valve mounting bracket |
1 |
|
|
19 |
273-7665
|
Manifold assembly |
1 |
|
|
20 |
273-8938
|
Manifold plate |
1 |
|
|
21 |
173-9671
|
Brass pipe plug 1/4 inch |
2 |
|
|
22 |
999-9067
|
Screw 10-32 x 1 pan head phillips zinc plated |
6 |
|
|
23 |
173-0682
|
Strain relief (OBSOLETE) |
1 |
|
|
24 |
273-4088
|
Power cord |
1 |
|
|
25 |
173-2478
|
Nut 1/2 conduit nickel plated thread (OBSOLETE) |
1 |
|
|
26 |
173-2569
|
Washer .77 x 1.31 flat stainless steel |
1 |
|
|
27 |
273-8940
|
Valve (OBSOLETE) |
1 |
|
|
28 |
273-8941
|
Valve safety bracket |
1 |
|
|
