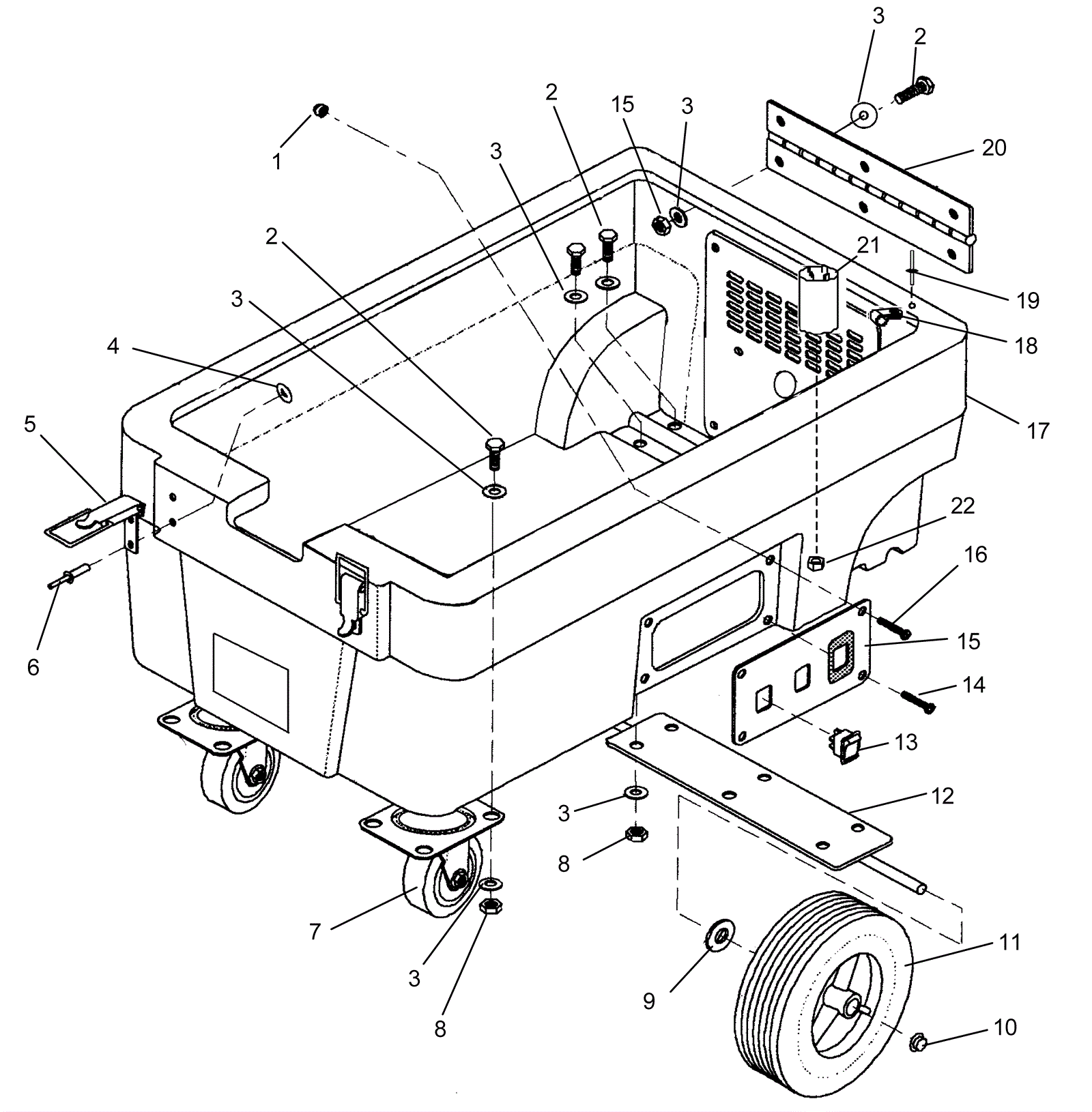

SAMURAI 100 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 3 ships same day
2 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 15 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 30 ships same day
4 173-4807 Washer #10 flat pleated (OBSOLETE) $0.99 4 usually ships 14-22 days
5 273-8923 Latch $22.11 2 usually ships 14-22 days
6 173-8658 Closed rivet 3/16 X 1/2 $0.99 4 usually ships 14-22 days
7 173-0557 4 inch swivel caster wheel $62.15 2 usually ships 14-22 days
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 15 ships same day
9 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
10 173-2667 Nut 1/2 starlock push-on $10.62 2 usually ships 1-5 days
11 173-0347 Wheel kit (pkg of 2) $108.35 2 usually ships 14-22 days
12 273-8924 Axle assembly Call for price 1 usually ships 14-22 days
13 273-7676 Rocker switch (OBSOLETE) $16.39 3 usually ships 14-22 days
14 173-7043 Screw 10-32 x 1 phillips pan head green $4.73 1 usually ships 1-5 days
15 273-8925 3 switch plate $67.65 1 usually ships 14-22 days
16 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
17 273-8926 Base Call for price 1 usually ships 14-22 days
18 173-1139 5/8 nylon clamp $1.52 1 usually ships 1-5 days
19 273-8927 Rivet Call for price 1 usually ships 14-22 days
20 273-8928 Hinge Call for price 1 usually ships 14-22 days
21 273-7622 Filter $78.65 1 usually ships 14-22 days
22 273-8929 Nut $0.99 1 usually ships 14-22 days
