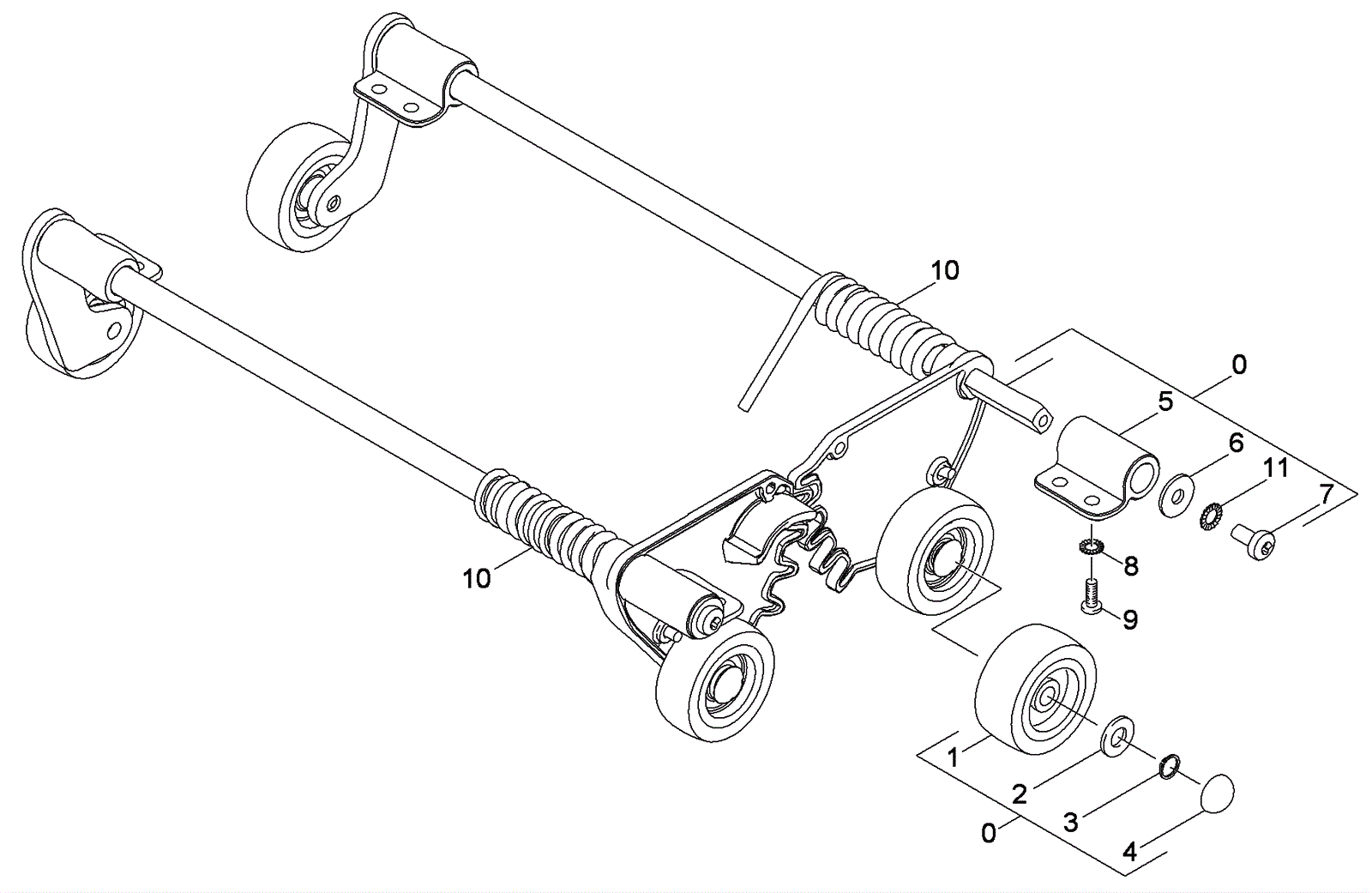

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
173-6301
|
Chassis assembly |
$1,063.70
|
1 |
(includes 1-9, and 11) |
usually ships 1-5 days |
1 |
173-6302
|
Wheel (gray) |
$24.09
|
4 |
|
usually ships 14-22 days |
2 |
173-6303
|
Joint ring (OBSOLETE) |
$3.21
|
4 |
|
usually ships 14-22 days |
3 |
173-6304
|
Locking ring |
$5.61
|
4 |
|
usually ships 14-22 days |
4 |
173-6305
|
Lock washer |
$6.55
|
4 |
|
usually ships 14-22 days |
5 |
173-6306
|
Bearing flange carriage |
$7.59
|
4 |
|
usually ships 14-22 days |
6 |
173-5899
|
Washer |
$0.99
|
4 |
|
usually ships 14-22 days |
7 |
173-6286
|
Screw M6 x 12mm |
$2.09
|
4 |
|
usually ships 1-5 days |
8 |
173-6307
|
Serrated lock washer (OBSOLETE) |
$8.25
|
8 |
|
usually ships 14-22 days |
9 |
173-6139
|
Screw 5 x 20 |
$3.70
|
8 |
|
usually ships 14-22 days |
10 |
273-8915
|
Leg spring set |
$180.40
|
1 |
|
usually ships 14-22 days |
11 |
273-8916
|
Serrated lock washer (OBSOLETE) |
$0.99
|
4 |
|
usually ships 14-22 days |
