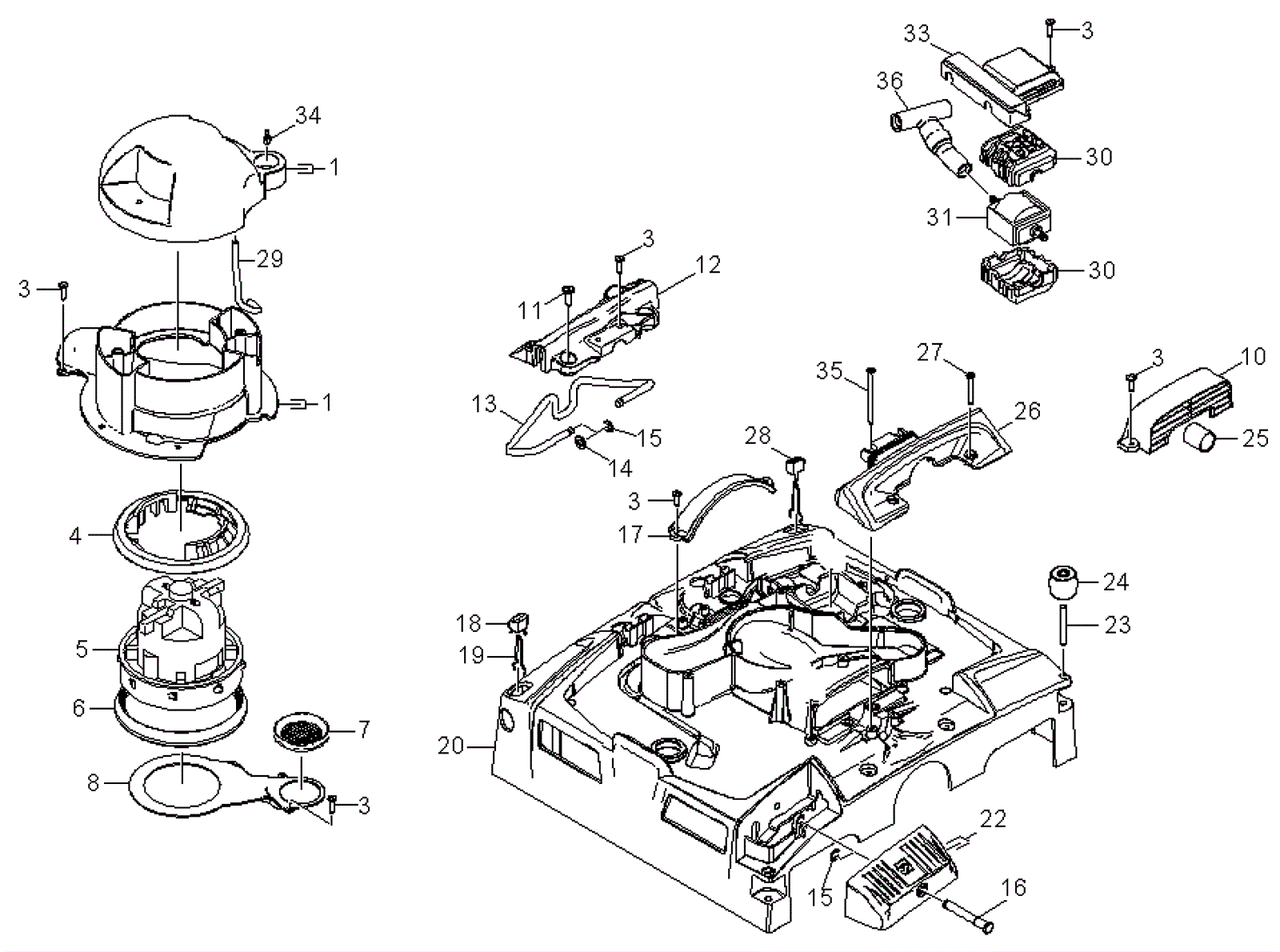

SABER BLADE 16 (gray) Individual Parts Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-6218 Housing valve assembly $137.00 1 usually ships 1-5 days
3 173-6202 Screw M5 x 20mm $0.94 18 usually ships 7-19 days
4 173-6227 Vacuum motor seal $45.20 1 usually ships 1-5 days
5 273-8905 Turbine replacement set $277.55 1 usually ships 7-19 days
6 173-6229 Vacuum motor seal $62.00 1 usually ships 1-5 days
7 173-6230 Joint ring $7.50 1 usually ships 7-19 days
8 173-6231 Covering cap $17.30 1 usually ships 7-19 days
10 173-6232 Right splash guard $3.75 1 usually ships 1-5 days
11 999-1403 Screw M8 x 16mm torx head $2.90 4 ships same day
12 173-6233 Left retaining bracket $39.10 1 usually ships 7-19 days
13 173-6234 Adjustment retaining bracket $113.00 1 usually ships 1-5 days
14 999-0150 Washer #8 medium split lock $0.99 2 ships same day
15 173-6209 Lock washer $1.76 3 usually ships 7-19 days
16 173-6236 Pedal bolt $61.50 1 usually ships 1-5 days
17 173-6237 Left splash guard $11.70 1 usually ships 1-5 days
18 273-8906 Rear pusher (grey) $13.80 1 usually ships 7-19 days
19 173-6238 Spring $14.70 2 usually ships 7-19 days
20 173-6239 Brush housing cover $256.00 1 usually ships 1-5 days
22 173-6240 Pedal $164.00 1 usually ships 1-5 days
23 173-6241 Deflector roll bolt $34.00 2 usually ships 7-19 days
24 173-6242 Deflector roll $8.40 2 usually ships 7-19 days
25 273-8907 Bush plain bearing $10.02 2 usually ships 7-19 days
26 173-6243 Right retaining bracket $22.60 1 usually ships 1-5 days
27 173-6244 Screw 5M x 50mm $3.14 4 usually ships 1-5 days
28 273-8908 Front feed wheel pusher $13.80 1 usually ships 7-19 days
29 173-6219 Hose (sold by the foot) $6.00 1 usually ships 12-29 days
30 173-6245 Bearing $29.20 2 usually ships 1-5 days
31 173-6246 120V motor pump $518.00 1 usually ships 7-19 days
33 173-6247 Pump cover $4.02 1 usually ships 1-5 days
34 173-6248 Valve pin $25.60 1 usually ships 1-5 days
35 173-6249 Screw M5 x 80mm $1.49 2 usually ships 1-5 days
36 173-6250 Check valve $90.00 1 usually ships 7-19 days
N/S 183-0075 Screw 5-16 x 10.9mm $0.90 4 usually ships 8-21 days
