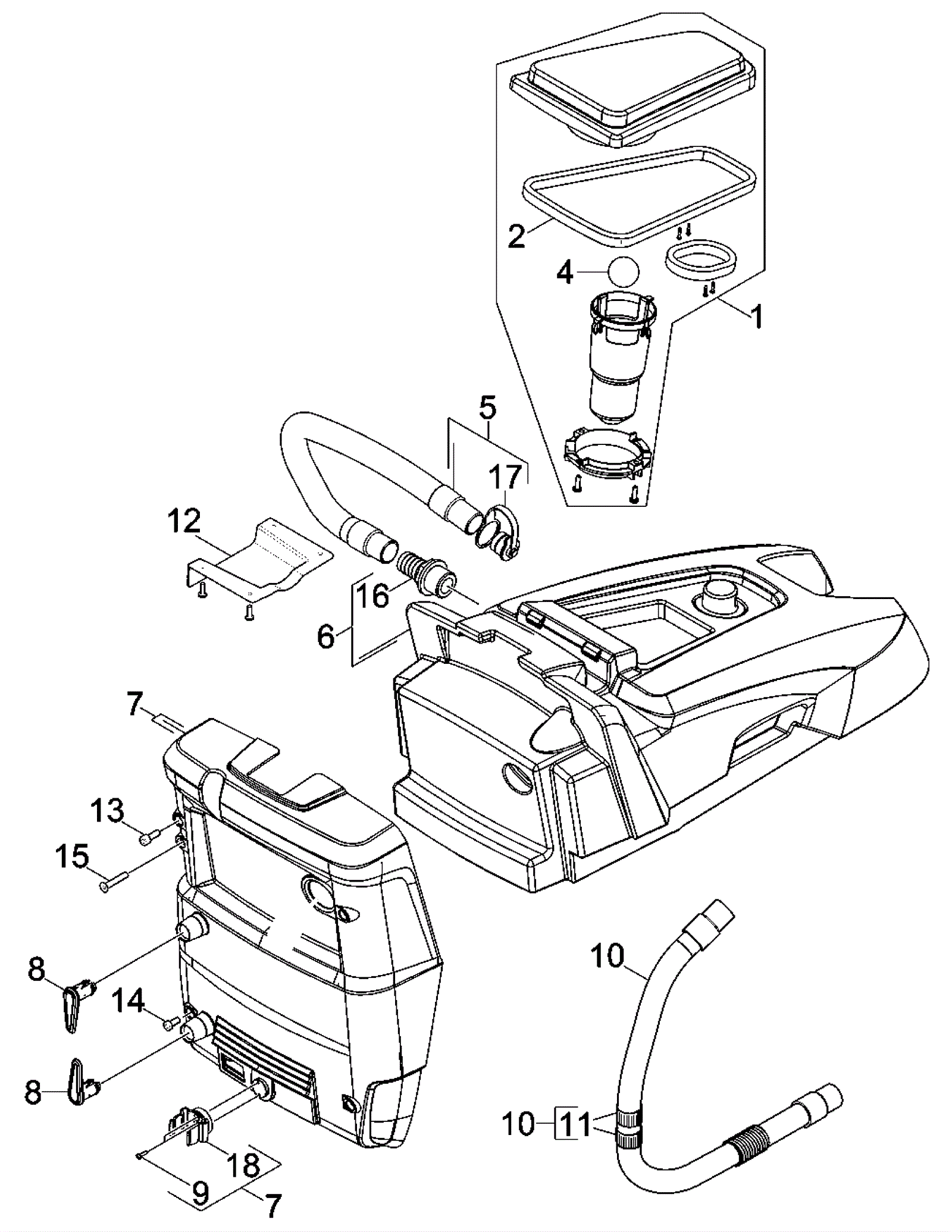

BD 40/12 Wase Water Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8864 Cover $410.77 1 (includes 2,4) usually ships 14-22 days
2 273-8867 Seal profile $29.30 1 usually ships 14-22 days
4 273-8866 Sphere $29.07 1 usually ships 14-22 days
5 273-7565 Drain hose assembly $107.70 1 (includes 17) usually ships 14-22 days
6 273-8865 Waste water tank (yellow) $418.00 1 (includes 16) usually ships 14-22 days
7 273-3542 Covering cap complete $326.03 1 (includes 9,18) usually ships 14-22 days
8 273-8868 Cable catch (yellow) $23.77 2 usually ships 14-22 days
9 273-3543 Screw $1.43 2 usually ships 14-22 days
10 273-7564 Hose extraction system $96.51 1 (includes 11) usually ships 14-22 days
11 273-3544 Hose clamp $15.42 1 usually ships 14-22 days
12 273-8869 Covering cap $40.61 1 usually ships 14-22 days
13 273-8860 Screw M6 x 25mm cylinder head $3.54 2 usually ships 14-22 days
14 183-0093 Screw M6-1 x 16mm $1.43 2 usually ships 14-22 days
15 999-6737 Screw M6-1 x 50mm countersunk stainless steel $2.24 1 usually ships 12-18 days
16 273-8863 Connection nipple $77.10 1 usually ships 14-22 days
17 273-8862 Drain hose cover $168.31 1 usually ships 14-22 days
18 273-8861 Clamp $28.60 1 usually ships 14-22 days
