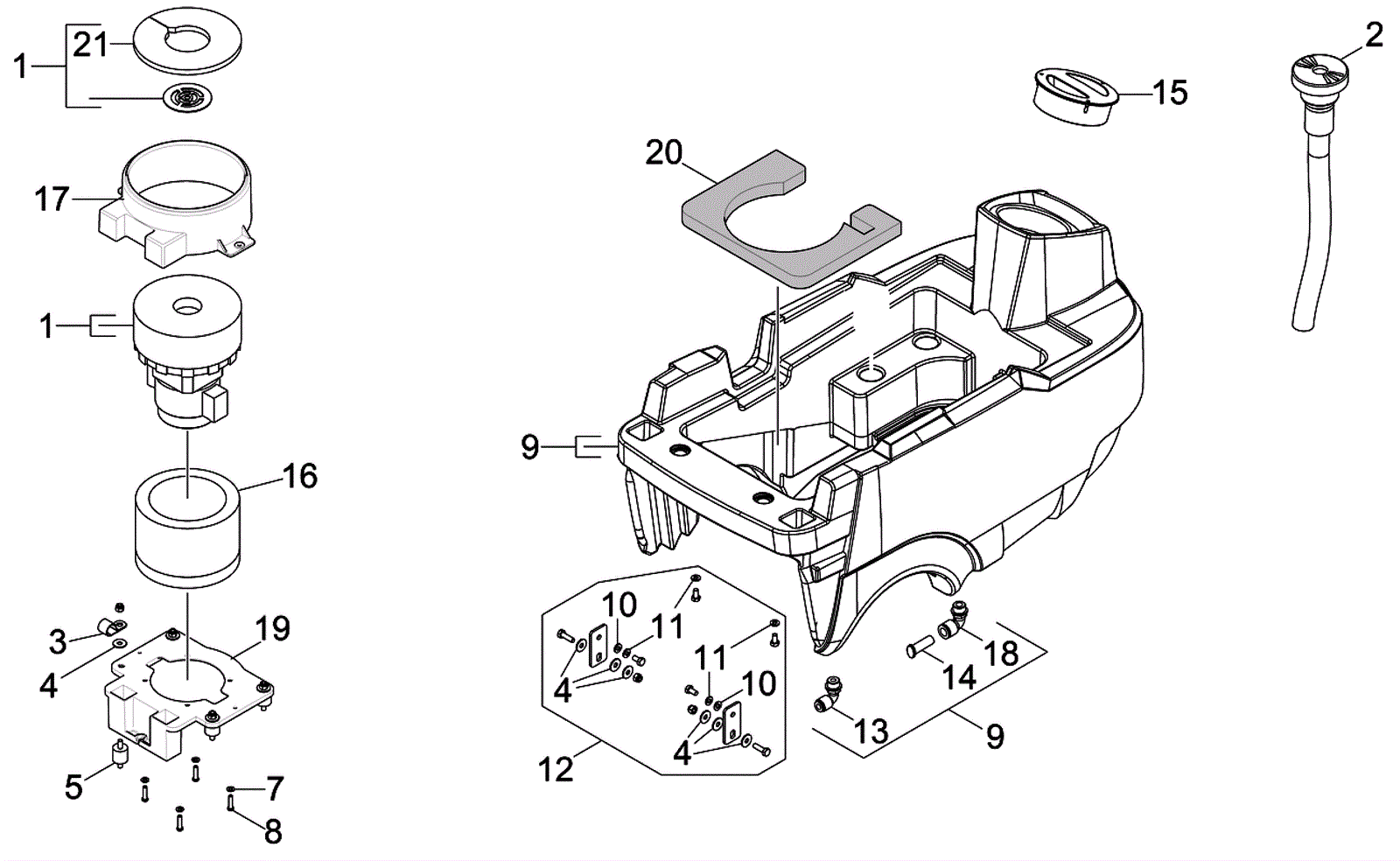

BD 40/12 Fresh Water Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7628 Vacuum motor $866.27 1 (includes 21) usually ships 14-22 days
2 273-8849 Fresh water hose $118.88 1 usually ships 14-22 days
3 273-8858 Clamp with rubber $5.50 1 usually ships 14-22 days
4 173-5899 Washer $0.99 10 usually ships 14-22 days
5 273-8857 Rubber buffer $26.84 4 usually ships 14-22 days
7 173-7679 Screw M5 x 20mm st r2r $2.76 4 usually ships 14-22 days
8 273-8846 Screw 5 x 20mm (OBSOLETE) Call for price 4 usually ships 14-22 days
9 273-8855 Fresh water tank set $1,182.89 1 (includes 13,14,18) usually ships 14-22 days
10 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
11 273-8845 Spring washer $1.87 2 usually ships 14-22 days
12 273-8854 Tank fixing set $70.62 1 (includes 4,10,11) usually ships 14-22 days
13 273-8852 3/8 inch connection $66.51 1 usually ships 14-22 days
14 273-8850 Cap closure $14.12 1 usually ships 14-22 days
15 273-8534 Lid $5.43 1 usually ships 14-22 days
16 273-8856 Sound insulation $90.05 1 usually ships 14-22 days
17 273-8848 Turbine guard ring $22.24 1 usually ships 14-22 days
18 273-8851 Connection $107.11 1 usually ships 14-22 days
19 273-8847 Turbine holder $35.31 1 usually ships 14-22 days
20 273-8859 Covering cap $33.55 1 usually ships 14-22 days
21 273-8853 Seal $27.67 1 usually ships 14-22 days
