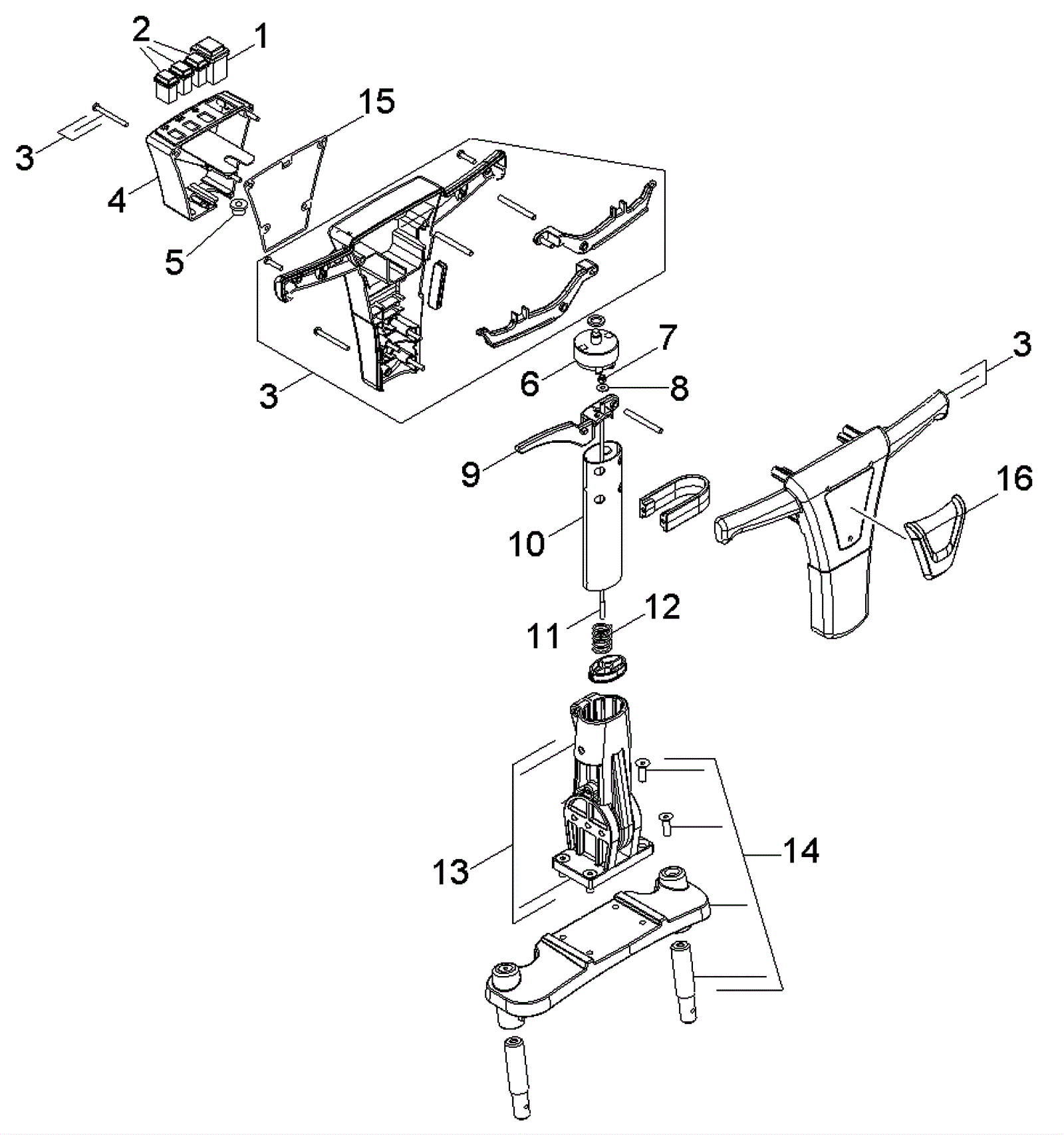

BD 40/12 Handhold Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8819 Display $87.45 1 usually ships 7-19 days
2 273-8818 Switch set $130.90 3 usually ships 7-19 days
3 273-8820 Hand grip assembly $195.80 1 usually ships 7-19 days
4 273-8822 Switch housing $40.70 1 usually ships 7-19 days
5 273-8812 Bend protection $9.57 1 usually ships 7-19 days
6 273-8823 On/off switch $322.30 1 usually ships 7-19 days
7 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
8 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
9 273-8817 Handhold $26.29 1 usually ships 7-19 days
10 273-8816 Push handle $31.35 1 usually ships 7-19 days
11 273-8811 Rod $8.64 1 usually ships 7-19 days
12 273-8815 Spring $5.50 1 usually ships 7-19 days
13 273-8814 Joint assembly $238.70 1 usually ships 7-19 days
14 273-8813 Plate set $195.80 1 usually ships 7-19 days
15 273-8821 Seal housing $4.35 1 usually ships 7-19 days
16a 273-8824 Screen (grey) $25.19 1 usually ships 7-19 days
16b 273-8825 Screen (yellow) $15.73 1 usually ships 7-19 days
