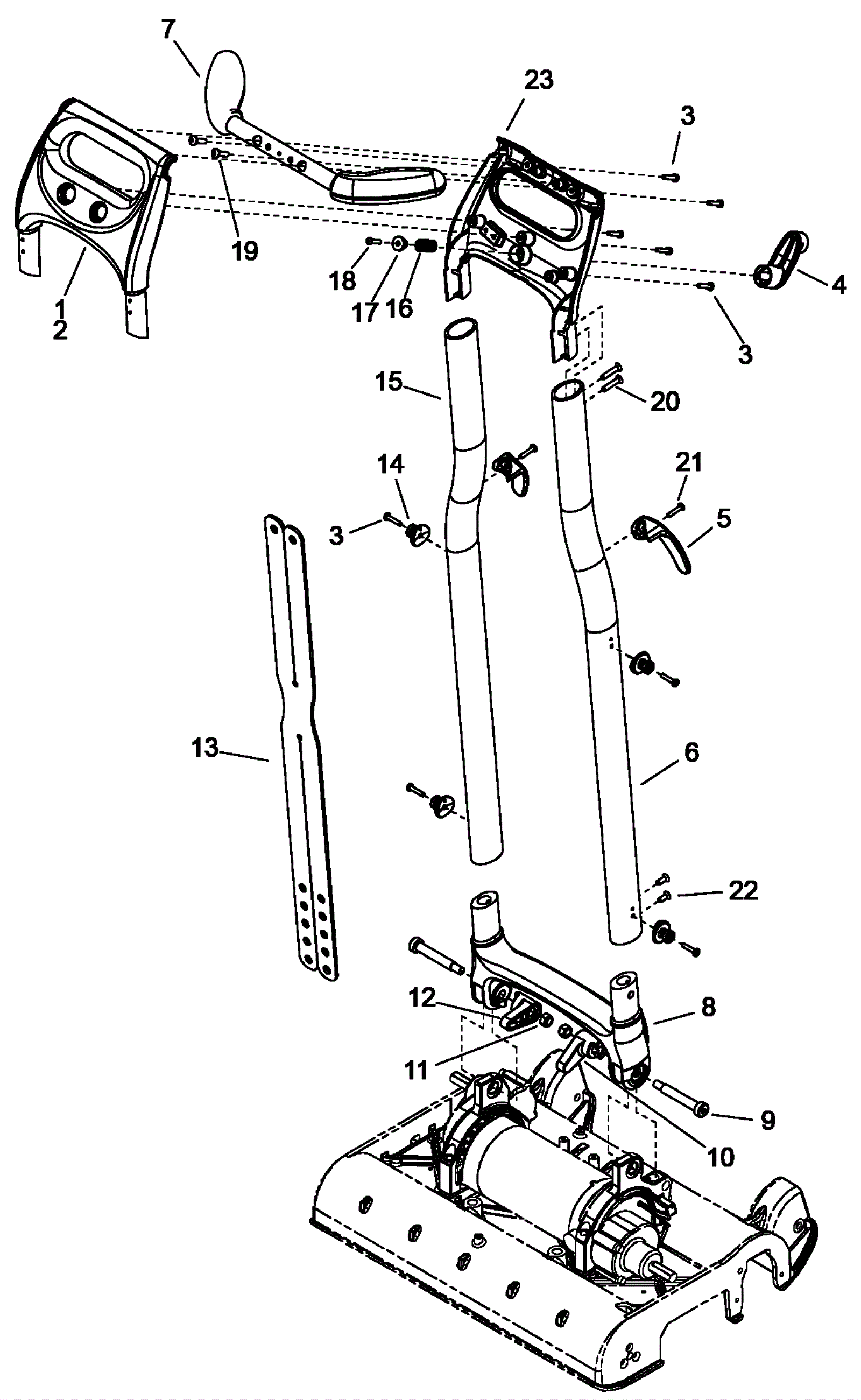

ICAPSOL MINI (GRAY) Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8788 ICAPSOL top console (black) $24.13 1 (deluxe 110V & basic 110V) usually ships 14-22 days
2 273-8789 Karcher top console $33.55 1 (deluxe 230V) usually ships 14-22 days
3 273-5446 Screw M4 x 20mm pan head phillips $2.68 9 usually ships 14-22 days
4 273-8790 Small upper cord hook (yellow) $34.49 1 usually ships 14-22 days
5 273-5472 Lower cord hook $28.37 2 usually ships 14-22 days
6a 273-5473 Left side extrusion handle $151.83 1 (deluxe Only) usually ships 1-5 days
6b 273-5474 Left side extrusion handle $161.25 1 usually ships 1-5 days
7 273-5497 Handle grip $101.22 1 usually ships 14-22 days
8 273-8791 Karcher pivot casting $351.92 1 usually ships 14-22 days
9 273-5478 Screw M10 x M8 x 55mm shoulder $14.48 2 usually ships 1-5 days
10 273-5479 Left hand lifting cam $28.60 1 usually ships 1-5 days
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
12 273-5481 Right hand lifting cam $28.60 1 usually ships 1-5 days
13 273-5482 Hold down sprayer strap $46.85 1 ships same day
14 273-5483 Rubber strap hook $16.60 4 usually ships 1-5 days
15a 273-5484 Right side extrusion handle $161.25 1 (deluxe only) usually ships 1-5 days
15b 273-5485 Right side extrusion handle $153.01 1 usually ships 1-5 days
16 273-5486 Compression spring $4.38 1 usually ships 1-5 days
17 273-5487 Spring retainer $12.60 1 usually ships 1-5 days
18 273-5488 Screw 40 x 35 oval head $8.47 1 usually ships 1-5 days
19 273-5489 Screw M5 x 20mm pan head phillips stainless steel $2.97 2 usually ships 1-5 days
20 273-5493 Screw M5 x 30mm countersunk oval head $7.06 4 usually ships 14-22 days
21 173-8687 Screw M4 x 14mm pan head phillips $1.90 2 ships same day
22 273-5491 Screw M5 x 12mm with locking $6.89 4 usually ships 1-5 days
23a 273-8792 Karcher bottom console $78.28 1 (deluxe 110V & deluxe 230V) usually ships 14-22 days
23b 273-8793 ICAPSOL bottom console $165.96 1 (basic 110V) usually ships 14-22 days
N/S 273-5493 Screw M5 x 30mm countersunk oval head $7.06 4 usually ships 14-22 days
