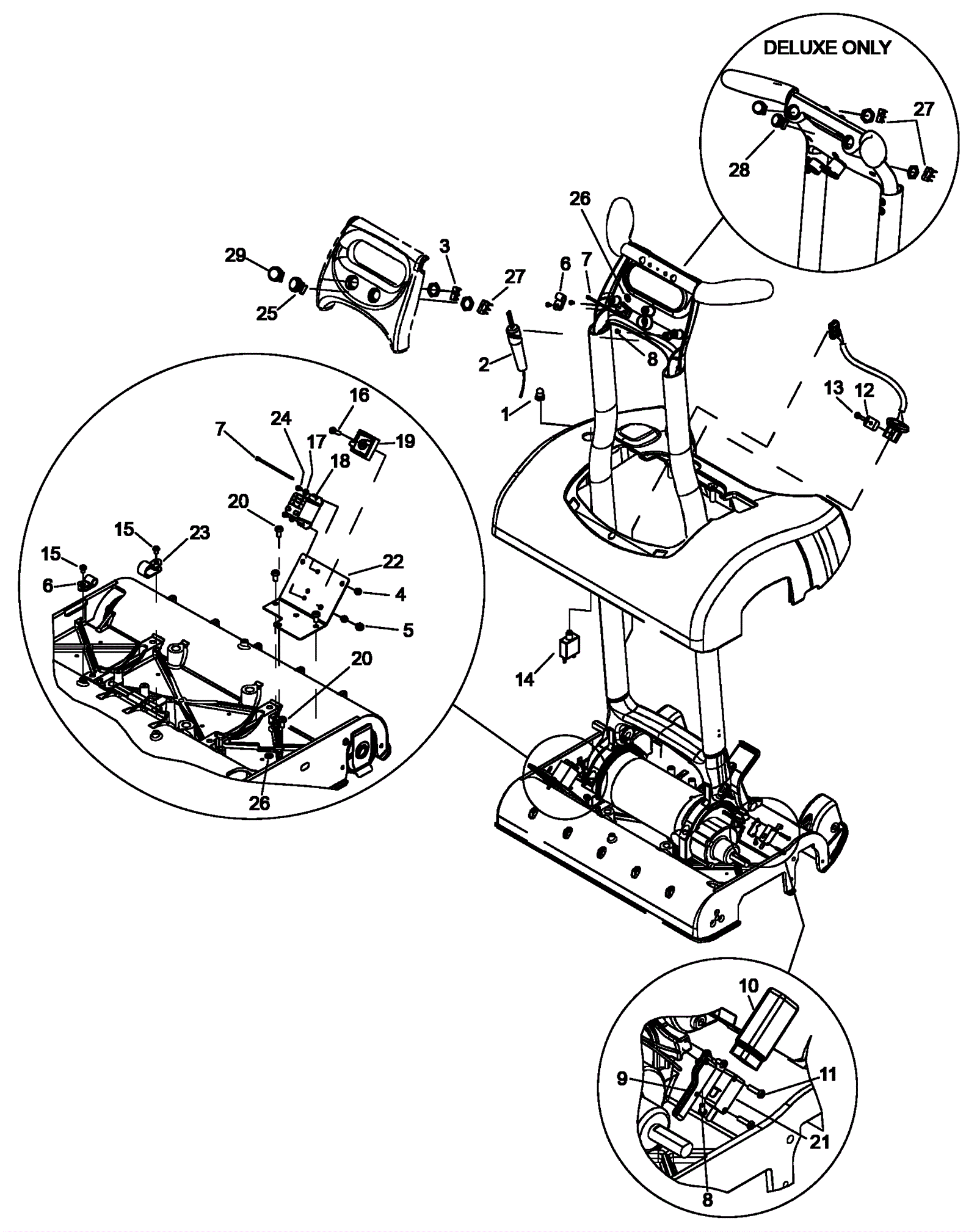

ICAPSOL MINI (GRAY) Electrical 120V Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
2 273-8781 SJT cord set 18/3 x 40 feet (yellow) $50.38 1 ships same day
3 273-5462 Switch with coupler $17.27 1 usually ships 7-19 days
4 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
5 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 1 ships same day
6 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 2 usually ships 7-19 days
7 273-5440 Wire tie $1.25 1 usually ships 1-5 days
8 273-5441 Screw M3 x 6mm button socket head (OBSOELTE) $2.18 2 usually ships 7-19 days
9 273-5442 Switch bracket $13.86 1 usually ships 1-5 days
10 273-5443 Switch bracket cover $14.19 1 usually ships 1-5 days
11 273-5444 Screw M3 x 12 button socket head $0.99 2 usually ships 1-5 days
12 273-5445 Wire clip $0.99 1 usually ships 1-5 days
13 273-5446 Screw M4 x 20mm pan head phillips $2.30 1 usually ships 7-19 days
14 273-5447 8amp circuit breaker $9.79 1 ships same day
15 273-5448 Screw M4 x 6mm button socket head $2.30 5 usually ships 1-5 days
16 273-5449 Screw M4 x 16mm button socket head $4.72 1 usually ships 1-5 days
17 273-5450 Washer M3 $0.99 2 usually ships 1-5 days
18 273-5451 120V 15amp mini relay $61.05 1 ships same day
19 173-4678 50amp bridge rectifier $75.36 1 usually ships 7-19 days
20 273-5452 Screw M5 x 10mm button socket head $4.84 4 usually ships 1-5 days
21 273-5453 120V roller switch $15.84 1 usually ships 7-19 days
22 273-8783 Electrical box base plate $4.73 1 usually ships 7-19 days
23 273-5455 P clamp $1.69 1 usually ships 1-5 days
24 273-8784 Screw M3 1/2 x 8 inch stainless steel $1.25 2 usually ships 7-19 days
25 273-5461 Button assembly with bezel (green) $28.16 1 usually ships 7-19 days
26 273-5457 Ground symbol decal $17.60 2 usually ships 1-5 days
27 273-5458 Switch with coupler $45.43 1 (deluxe) (qty 3) usually ships 7-19 days
28 273-5459 Button assembly with bezel (blue) $28.82 2 (deluxe only) ships same day
29 273-5460 Button assembly with bezel (red) $28.82 1 usually ships 7-19 days
