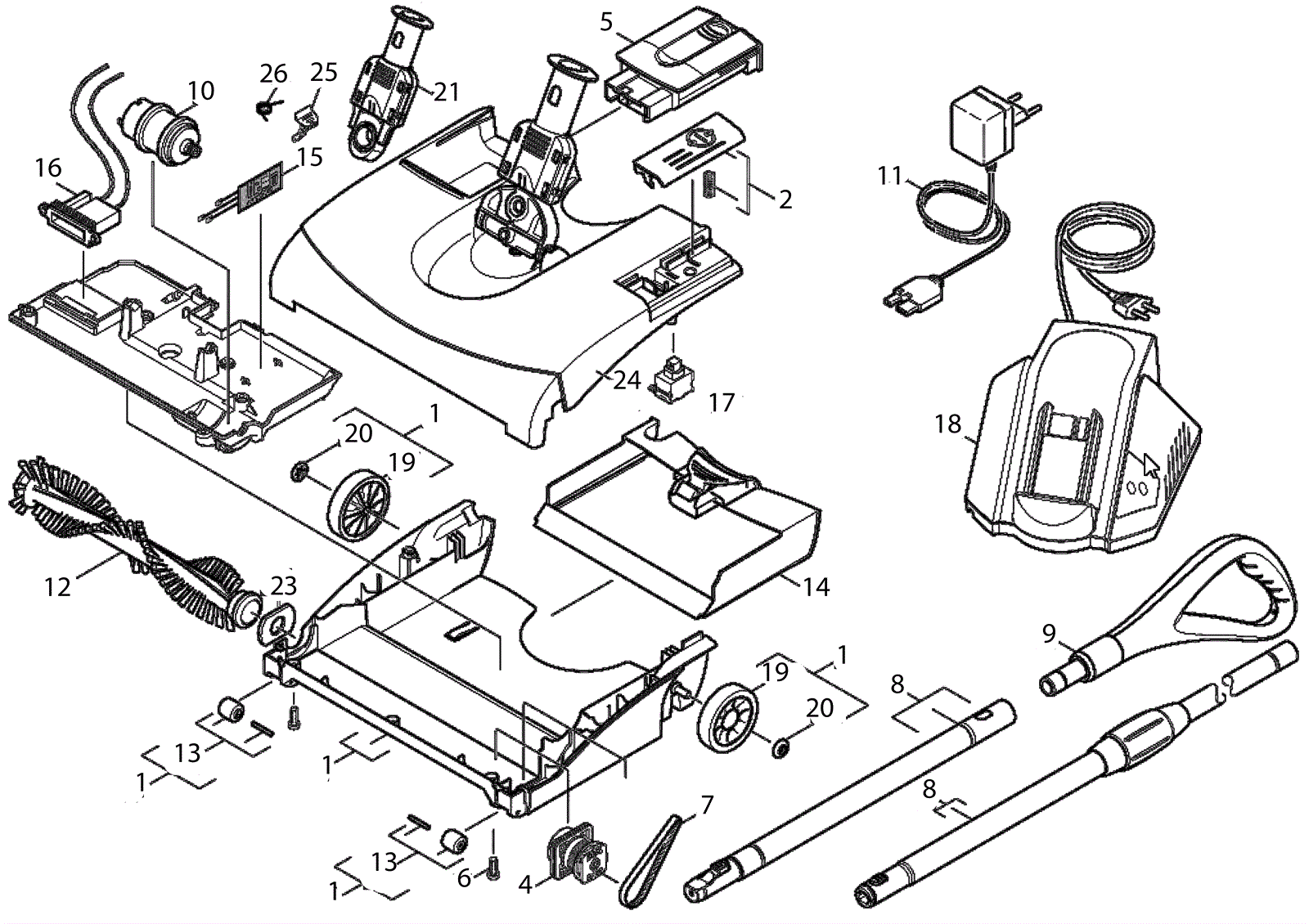

RADIUS MINI (GRAY) Base Assembly (Part 1)

#PartDescriptionPriceReqNotesAvailability
1a 173-4375 Bottom part complete (black) $150.70 (includes 13, 19-20) usually ships 1-5 days
1b 273-8724 Bottom part complete (gray) $163.90 (includes 13, 19-20) usually ships 7-19 days
2a 173-4376 Push button (black) $55.55 usually ships 7-19 days
2b 273-8725 Pushbutton with spring (yellow) $20.13 usually ships 7-19 days
4 173-5296 Transmission $59.95 usually ships 7-19 days
5 273-8727 Accumulator neutrally replacement lithium ion $198.00 usually ships 7-19 days
6 173-4378 Screw $0.99 usually ships 7-19 days
7 173-4379 Toothed belt $21.12 usually ships 7-19 days
8a 173-4380 Tube complete (black) $59.95 usually ships 7-19 days
8b 273-8728 Tube complete (Yellow) $39.16 usually ships 7-19 days
9 173-4381 Hand grip $31.13 usually ships 7-19 days
10 173-4382 Motor $151.80 usually ships 7-19 days
11 173-4383 120V adapter $60.74 ships same day
12a 183-7551 Brush roller (black) $40.71 usually ships 7-19 days
12b 273-6426 Brush roller (red) $49.06 usually ships 7-19 days
13 183-8106 Roller assembly $18.48 ships same day
14a 173-4384 Sweep tank (gray) $45.22 usually ships 7-19 days
14b 273-8729 Sweep tank complete (gray) $62.70 usually ships 7-19 days
15 173-4385 Electronics $100.10 usually ships 1-5 days
16 173-4386 Electrical small parts $66.55 usually ships 1-5 days
17 173-4387 Switch $11.44 usually ships 7-19 days
18 273-6411 Battery charger $249.70 usually ships 7-19 days
19a 273-8730 Wheel (gray) $17.27 usually ships 7-19 days
19b 173-4388 Wheel (black) $5.50 usually ships 1-5 days
20 173-4389 Lock washer $9.90 usually ships 7-19 days
21 173-4390 Locking part complete $32.23 usually ships 1-5 days
23 173-4397 Left bearing plate $9.41 usually ships 7-19 days
24a 273-8731 Top part printed radius mini $29.48 usually ships 7-19 days
24b 173-4392 Top cover (blue) (OBSOLETE) $38.06 usually ships 7-19 days
25a 273-8732 Pushbutton locking part accumulator $8.91 usually ships 7-19 days
25b 273-8733 Pushbutton connection accumulator $4.07 usually ships 7-19 days
26 273-8734 Leg spring $3.45 usually ships 7-19 days
N/S 273-8735 Accumulator and battery charger bundle (OBSOLETE) Call for price usually ships 7-19 days
